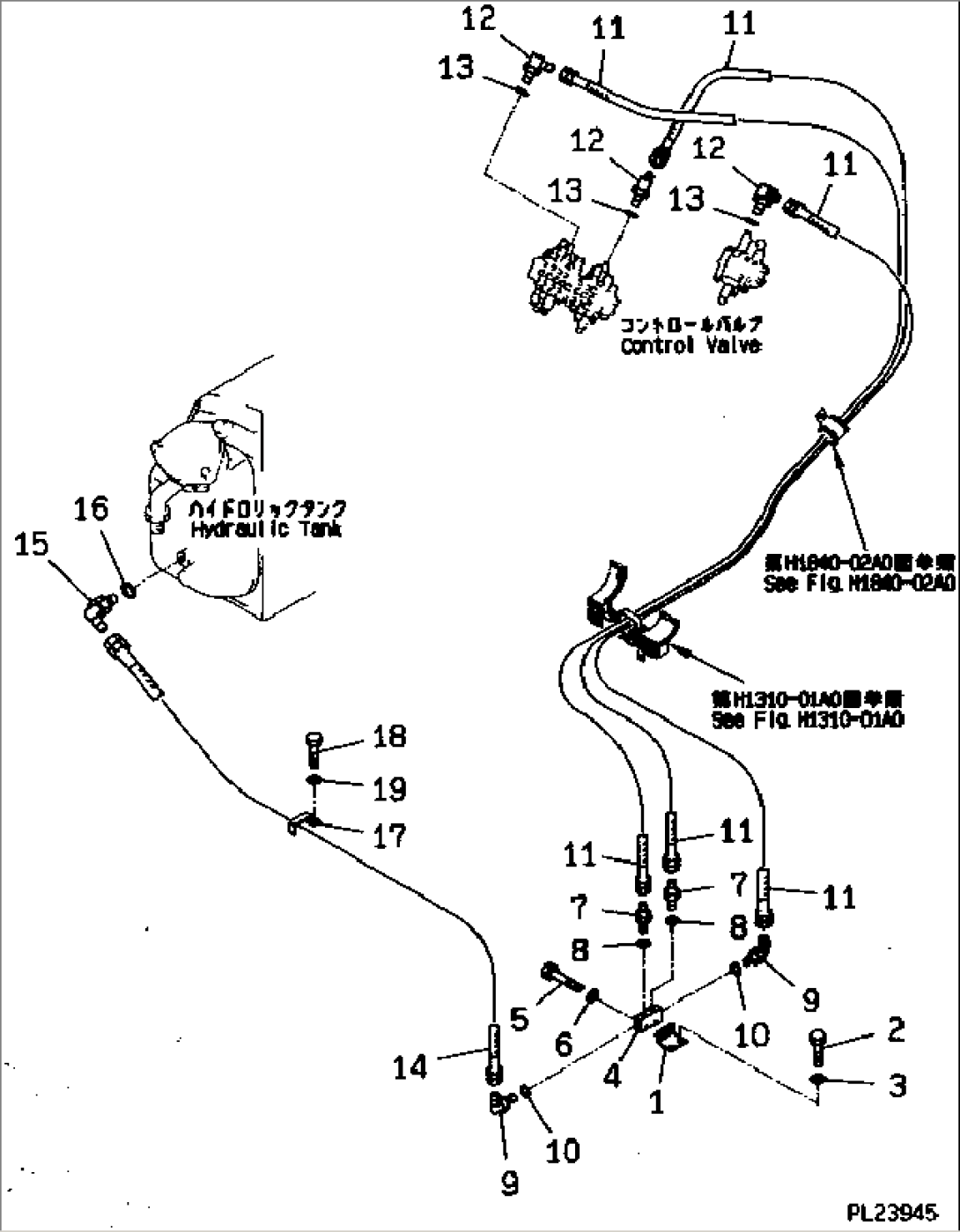

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 8253-62-1290 | BRACKET | 1001- | |
| 2 | 01010-51225 | BOLT | 1001- | |
| 3 | 01643-31232 | WASHER | 1001- | |
| 4 | 20Y-62-15831 | BLOCK | 1001- | |
| 5 | 01010-51050 | BOLT | 1001- | |
| 6 | 01643-31032 | WASHER | 1001- | |
| 7 | 07230-20210 | UNION | 1001- | |
| 8 | 07002-01423 | O-RING | 1001- | |
| 9 | 07235-10210 | ELBOW | 1001- | |
| 10 | 07002-01423 | O-RING | 1001- | |
| 11 | 07102-20217 | HOSE | 1001- | |
| 12 | 07235-10210 | ELBOW | 1001- | |
| 13 | 07002-01423 | O-RING | 1001- | |
| 14 | 07102-20212 | HOSE | 1001- | |
| 15 | 07236-10210 | ELBOW | 1001- | |
| 16 | 07002-01423 | O-RING | 1001- | |
| 17 | 04435-52212 | CLIP | 1001- | |
| 18 | 01010-51020 | BOLT | 1001- | |
| 19 | 01643-31032 | WASHER | 1001- |
