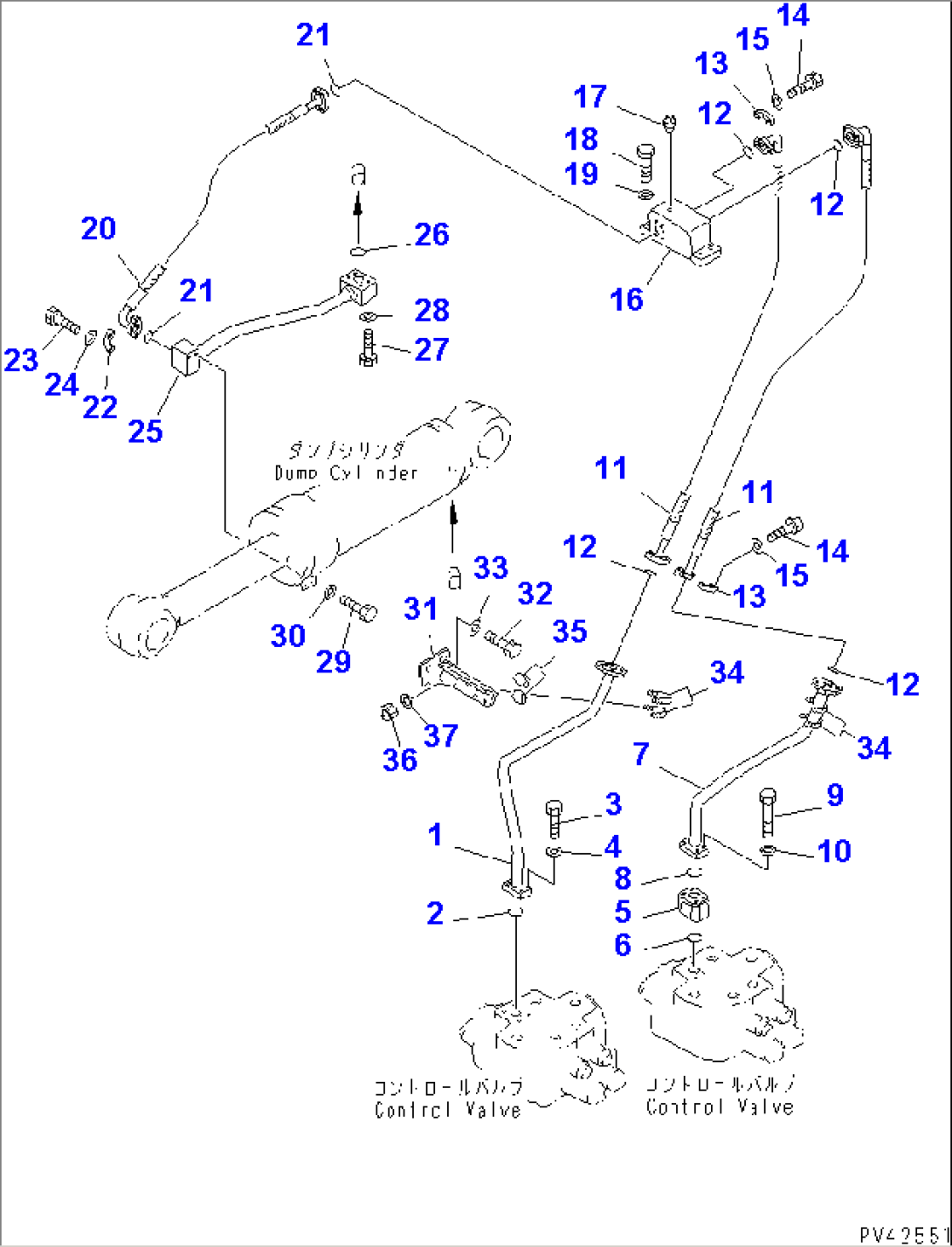

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 427-62-13421 | TUBE | 10501- | |
| 427-62-13420 | TUBE | 10001-10499 | ||
| 2 | 07000-F3038 | O-RING | 10054- | |
| \0\07000-13038 | O-RING | 10001-10053 | ||
| 3 | 01010-81250 | BOLT | 10001- | |
| 4 | 01643-31232 | WASHER | 10001- | |
| 5 | (702-23-41901) | VALVE ASS'Y,CHECK (SEE FIG.6245) | 10001- | |
| (\2\702-23-41900) | VALVE ASS'Y,CHECK (SEE FIG.6245) | (10001-10064) | ||
| 6 | 07000-F3038 | O-RING | 10054- | |
| \0\07000-13038 | O-RING | 10001-10053 | ||
| 7 | 427-62-13432 | TUBE | 10585- | |
| 427-62-13431 | TUBE | 10501-10584 | ||
| 427-62-13430 | TUBE | 10001-10499 | ||
| 8 | 07000-F3045 | O-RING | 10054- | |
| \0\07000-13045 | O-RING | 10001-10053 | ||
| 9 | 01011-81225 | BOLT | 10001- | |
| 10 | 01643-31232 | WASHER | 10001- | |
| 11 | 427-62-15680 | HOSE | 10001- | |
| (\2\07098-01415) | HOSE | (10001-10059) | ||
| 12 | 07000-F3048 | O-RING | 10054- | |
| \0\07000-13048 | O-RING | 10001-10053 | ||
| 13 | 07371-51470 | FLANGE,SPLIT | 10001- | |
| 14 | 01010-81455 | BOLT | 10001- | |
| 15 | 01643-31445 | WASHER | 10001- | |
| 16 | 427-62-13440 | BLOCK,R.H. | 10001- | |
| 17 | 07042-20108 | PLUG | 10001- | |
| 18 | 01010-81255 | BOLT | 10001- | |
| 19 | 01643-31232 | WASHER | 10001- | |
| 20 | 427-62-15730 | HOSE | 10001- | |
| (\2\07098-02022) | HOSE | (10001-10061) | ||
| 21 | 07000-F2060 | O-RING | 10054- | |
| \0\07000-12060 | O-RING | 10001-10053 | ||
| 22 | 07371-52080 | FLANGE,SPLIT | 10001- | |
| 23 | 01010-81870 | BOLT | 10001- | |
| 24 | 01643-31845 | WASHER | 10001- | |
| 25 | 427-62-13191 | TUBE | 10679- | |
| \3\427-62-13190 | TUBE | 10001-10678 | ||
| (427-62-13191{707-01-03210¤} | ||||
| 427-44-11111) | ||||
| 427-871-1111 | TUBE,(FOR HIGH LIFT) | 10679- | ||
| \3\427-871-1110 | TUBE,(FOR HIGH LIFT) | 10001-10678 | ||
| (427-871-1111{707-01-02490¤} | ||||
| 427-871-1122) | ||||
| 26 | 07000-F2060 | O-RING | 10054- | |
| \0\07000-12060 | O-RING | 10001-10053 | ||
| 27 | 01011-81830 | BOLT | 10001- | |
| 28 | 01643-31845 | WASHER | 10001- | |
| 29 | 01010-81840 | BOLT | 10001- | |
| 30 | 01643-31845 | WASHER | 10001- | |
| 31 | 427-62-13371 | BRACKET,R.H. | 10001- | |
| 32 | 01435-01225 | BOLT | 10501- | |
| \0\01010-51230 | BOLT | 10001-10499 | ||
| 33 | 01643-31232 | WASHER | 10001-10499 | |
| 34 | 07283-34354 | CLIP | 10001- | |
| 35 | 07283-54353 | SEAT | 10001- | |
| 36 | 01597-01009 | NUT | 10001- | |
| 37 | 01643-31032 | WASHER | 10001- |
