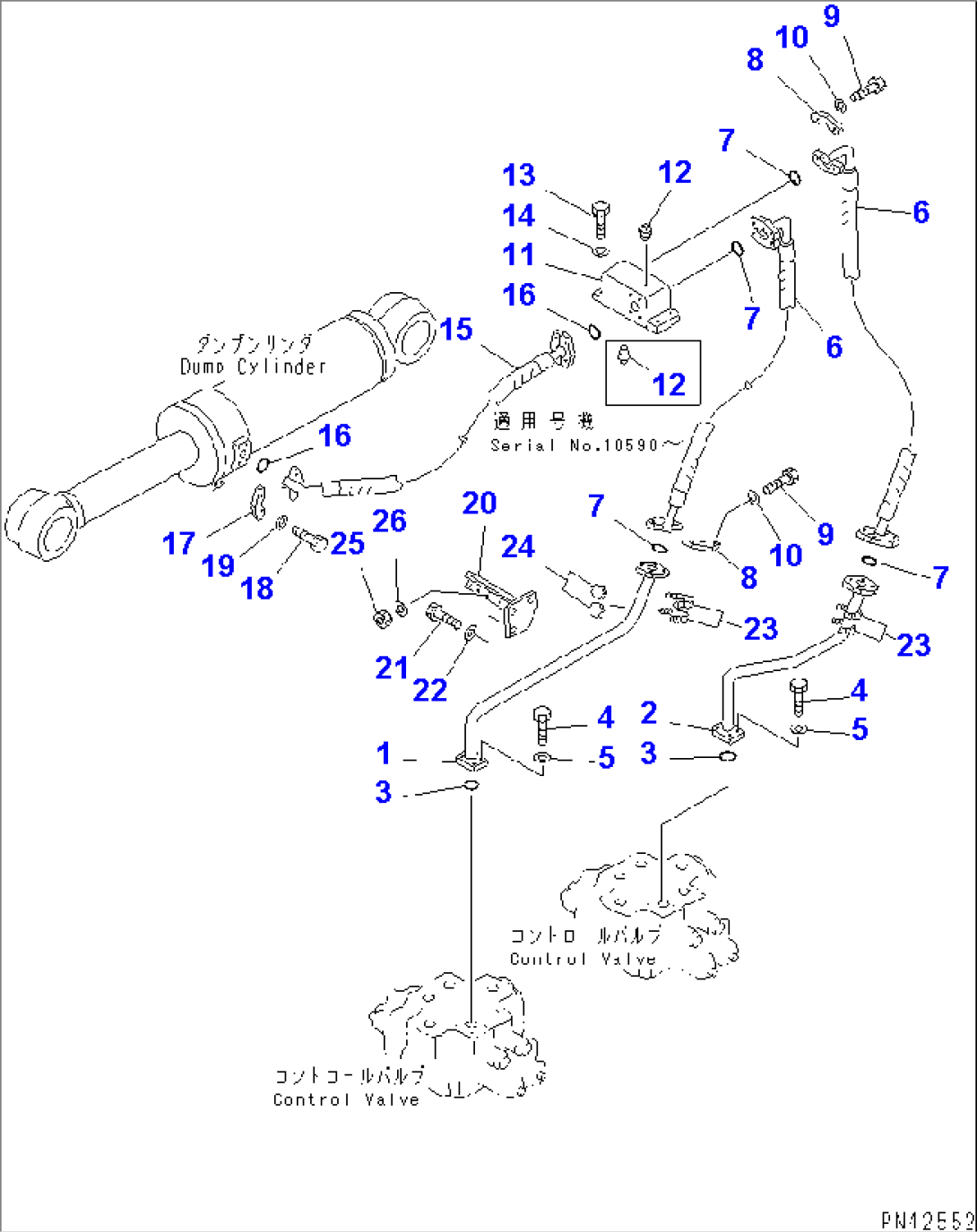

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 427-62-13461 | TUBE | 10501- | |
| 427-62-13460 | TUBE | 10001-10499 | ||
| 2 | 427-62-13471 | TUBE | 10501- | |
| 427-62-13470 | TUBE | 10001-10499 | ||
| 3 | 07000-F3038 | O-RING | 10054- | |
| \0\07000-13038 | O-RING | 10001-10053 | ||
| 4 | 01010-81250 | BOLT | 10001- | |
| 5 | 01643-31232 | WASHER | 10001- | |
| 6 | 427-62-15680 | HOSE | 10001- | |
| (\2\07098-01415) | HOSE | (10001-10061) | ||
| 7 | 07000-F3048 | O-RING | 10054- | |
| \0\07000-13048 | O-RING | 10001-10053 | ||
| 8 | 07371-51470 | FLANGE,SPLIT | 10001- | |
| 9 | 01010-81455 | BOLT | 10001- | |
| 10 | 01643-31445 | WASHER | 10001- | |
| 11 | 427-62-13490 | BLOCK,L.H. | 10001- | |
| 12 | 07042-20108 | PLUG | 10590- | |
| 07042-20108 | PLUG | 10001-10589 | ||
| 13 | 01010-81255 | BOLT | 10001- | |
| 14 | 01643-31232 | WASHER | 10001- | |
| 15 | 427-62-15730 | HOSE | 10001- | |
| (\2\07098-02022) | HOSE | (10001-10061) | ||
| 16 | 07000-F2060 | O-RING | 10054- | |
| \0\07000-12060 | O-RING | 10001-10053 | ||
| 17 | 07371-52080 | FLANGE,SPLIT | 10001- | |
| 18 | 01010-81870 | BOLT | 10001- | |
| 19 | 01643-31845 | WASHER | 10001- | |
| 20 | 427-62-13381 | BRACKET,L.H. | 10001- | |
| 21 | 01435-01225 | BOLT | 10501- | |
| \0\01010-51230 | BOLT | 10001-10499 | ||
| 22 | 01643-31232 | WASHER | 10001-10499 | |
| 23 | 07283-34354 | CLIP | 10001- | |
| 24 | 07283-54353 | SEAT | 10001- | |
| 25 | 01597-01009 | NUT | 10001- | |
| 26 | 01643-31032 | WASHER | 10001- |
