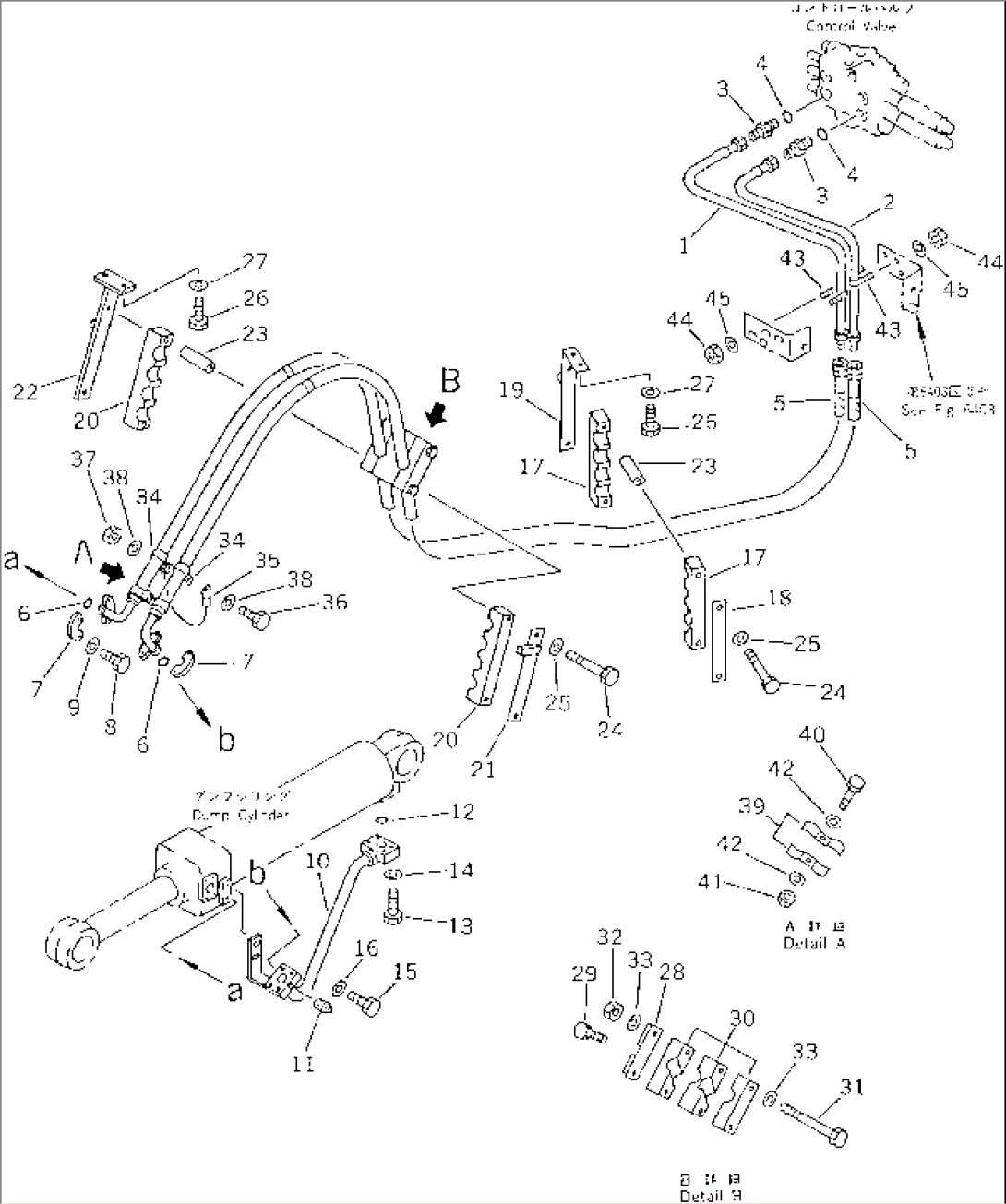

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 417-62-13351 | TUBE | 10001- | |
| 2 | 417-62-13371 | TUBE | 10001- | |
| 3 | 07230-10628 | UNION | 10001- | |
| 4 | 07002-12434 | O-RING | 10001- | |
| 5 | 417-62-13970 | HOSE | 10001- | |
| 6 | 07000-13022 | O-RING | 10001- | |
| 7 | 07371-31049 | FLANGE,SPLIT | 10001- | |
| 8 | 07372-21035 | BOLT | 10001- | |
| 9 | 01643-51032 | WASHER | 10001- | |
| 10 | 417-62-13980 | TUBE | 10001- | |
| 11 | 07042-20108 | PLUG | 10001- | |
| 12 | 07000-13022 | O-RING | 10001- | |
| 13 | 01010-31060 | BOLT | 10001- | |
| 14 | 01643-51032 | WASHER | 10001- | |
| 15 | 01010-51025 | BOLT | 10001- | |
| 16 | 01643-31032 | WASHER | 10001- | |
| 17 | 417-62-13411 | RUBBER,STRIP | 10001- | |
| 18 | 417-62-13550 | PLATE | 10001- | |
| 19 | 417-62-13541 | BRACKET | 10001- | |
| 20 | 417-62-13411 | RUBBER,STRIP | 10001- | |
| 21 | 417-62-13730 | PLATE | 10001- | |
| 22 | 417-62-13392 | BRACKET | 10001- | |
| 23 | 417-62-13420 | SPACER | 10001- | |
| 24 | 01011-31230 | BOLT | 10001- | |
| 25 | 01643-31232 | WASHER | 10001- | |
| 26 | 01010-31230 | BOLT | 10001- | |
| 27 | 01643-31232 | WASHER | 10001- | |
| 28 | 417-62-13461 | BRACKET | 10001- | |
| 29 | 01010-31035 | BOLT | 10001- | |
| 30 | 417-62-13452 | RUBBER ASS'Y,STRIP | 10001- | |
| 31 | 01011-31045 | BOLT | 10001- | |
| 32 | 426-43-19160 | NUT,LOCK | 10001- | |
| 33 | 01643-31032 | WASHER | 10001- | |
| 34 | 417-62-13470 | CLAMP | 10001- | |
| 35 | 419-62-13460 | WIRE | 10001- | |
| 36 | 01010-31225 | BOLT | 10001- | |
| 37 | 01580-01210 | NUT | 10001- | |
| 38 | 01643-31232 | WASHER | 10001- | |
| 39 | 417-62-13470 | CLAMP | 10001- | |
| 40 | 01010-31050 | BOLT | 10001- | |
| 41 | 01580-01008 | NUT | 10001- | |
| 42 | 01643-31032 | WASHER | 10001- | |
| 43 | 07283-32738 | CLIP | 10001- | |
| 44 | 426-09-11160 | NUT | 10001- | |
| 45 | 01643-31032 | WASHER | 10001- |
