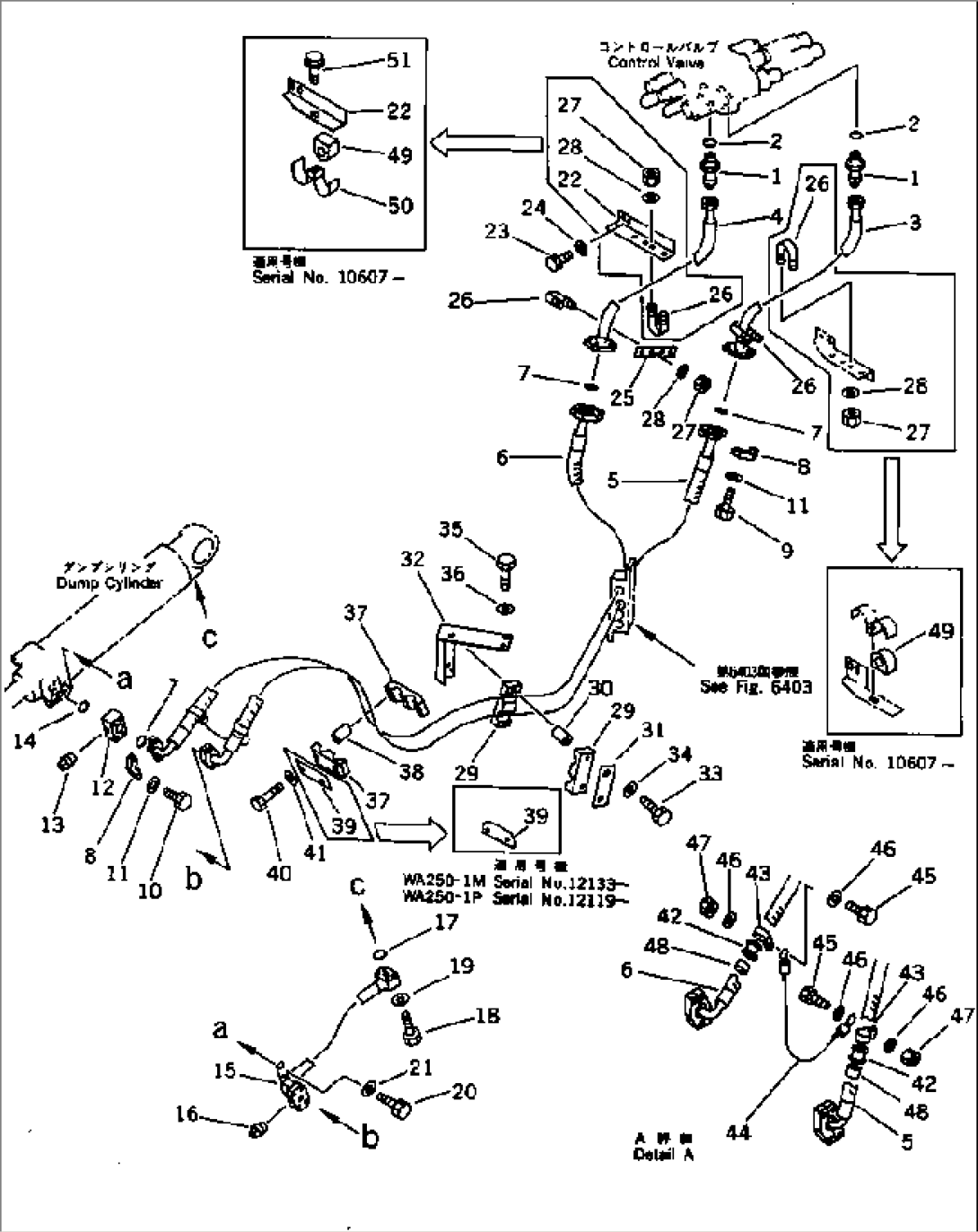

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 418-62-13630 | UNION | 10001- | |
| 2 | 07002-12434 | O-RING | 10001- | |
| 3 | 418-62-13371 | TUBE | 10001- | |
| 4 | 418-62-13361 | TUBE | 10001- | |
| 5 | 418-62-13840 | HOSE | 10001- | |
| 6 | 418-62-13850 | HOSE | 10001- | |
| 7 | 07000-13032 | O-RING | 10001- | |
| 8 | 07371-31049 | FLANGE,SPLIT | 10001- | |
| 9 | 07372-01035 | BOLT | 10001- | |
| 10 | 07372-01050 | BOLT | 10001- | |
| 11 | 01643-51032 | WASHER | 10001- | |
| 12 | 419-62-13490 | PLATE | 10001- | |
| 13 | 07042-20108 | PLUG | 10001- | |
| 14 | 07000-13032 | O-RING | 10001- | |
| 15 | 418-62-13830 | TUBE | 10001- | |
| 16 | 07042-20108 | PLUG | 10001- | |
| 17 | 07000-13035 | O-RING | 10001- | |
| 18 | 01010-31060 | BOLT | 10001- | |
| 19 | 22X-22-12660 | WASHER | 10001- | |
| 20 | 01010-51025 | BOLT | 10001- | |
| 21 | 01643-31032 | WASHER | 10001- | |
| 22 | 418-Z95-1150 | BRACKET | 10607- | |
| 22 | 418-62-13560 | BRACKET | 10001-10606 | |
| 23 | 01010-51225 | BOLT | 10001- | |
| 24 | 01643-31232 | WASHER | 10001- | |
| 25 | 418-62-13580 | PLATE | 10001- | |
| 26 | 07283-33442 | CLIP | 10607- | |
| 26 | 07283-33442 | CLIP | 10001-10606 | |
| 27 | 01599-01011 | NUT | 10607- | |
| 27 | 01599-01011 | NUT | 10001-10606 | |
| 28 | 01643-31032 | WASHER | 10607- | |
| 28 | 01643-31032 | WASHER | 10001-10606 | |
| 29 | 418-62-13751 | RUBBER | 10001- | |
| 30 | 419-62-13440 | SPACER | 10001- | |
| 31 | 418-62-13740 | PLATE | 10001- | |
| 32 | 418-62-13970 | BRACKET | 10001- | |
| 33 | 01011-51205 | BOLT | 10001- | |
| 34 | 01643-31232 | WASHER | 10001- | |
| 35 | 01010-51230 | BOLT | 10001- | |
| 36 | 01643-31232 | WASHER | 10001- | |
| 37 | 419-62-13421 | RUBBER | 10001- | |
| 38 | 419-62-13440 | SPACER | 10001- | |
| 39 | 419-62-13431 | PLATE,(WA250-1M) | 12133- | |
| 39 | \0\419-62-13430 | PLATE,(WA250-1M) | 10001-12132 | |
| 39 | 419-62-13431 | PLATE,(WA250-1P) | 12119- | |
| 39 | \0\419-62-13430 | PLATE,(WA250-1P) | 10001-12118 | |
| 40 | 01011-51210 | BOLT | 10001- | |
| 41 | 01643-31232 | WASHER | 10001- | |
| 42 | 419-62-13470 | RUBBER | 10001- | |
| 43 | 419-09-11150 | CLIP | 10001- | |
| 44 | 419-62-13460 | WIRE | 10001- | |
| 45 | 01010-51230 | BOLT | 10001- | |
| 46 | 01643-31232 | WASHER | 10001- | |
| 47 | 01580-11210 | NUT | 10001- | |
| 48 | 419-09-11310 | SHEET | 10001- | |
| 49 | 421-62-14790 | SEAT | 10607- | |
| 50 | 418-Z95-1170 | CLAMP | 10607- | |
| 51 | 01435-01225 | BOLT | 10607- |
