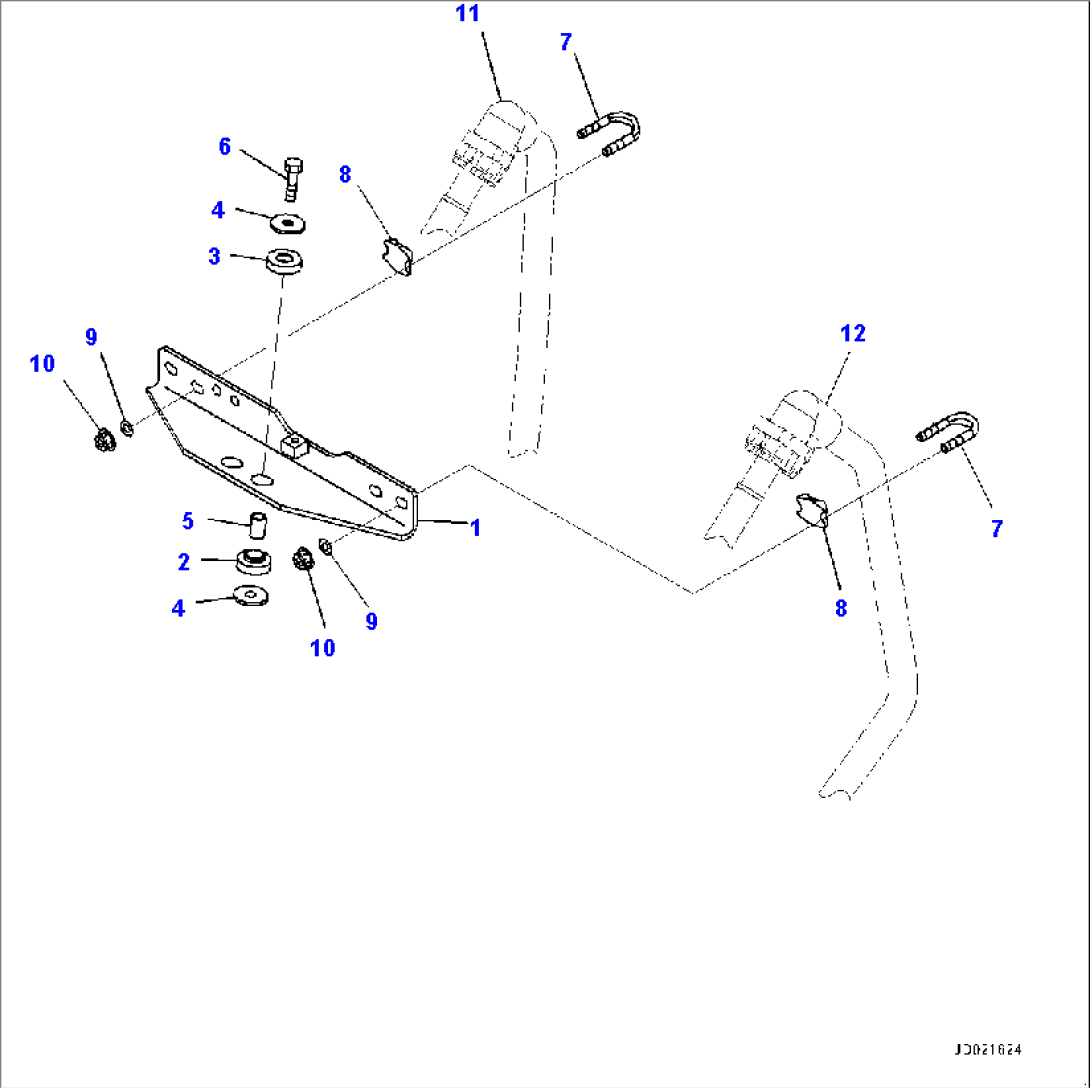

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 418-U77-4560 | Bracket | 75750-77877 | |
| 2 | 419-43-17930 | Cushion | 75750-77877 | |
| 3 | 415-64-13130 | Cushion | 75750-77877 | |
| 4 | 415-64-13120 | Washer | 75750-77877 | |
| 5 | 417-54-13470 | Spacer | 75750-77877 | |
| 6 | 01010-81045 | Bolt | 75750-77877 | |
| 7 | 07283-33450 | Clip | 75750-77877 | |
| 8 | 07283-53444 | Seat | 75750-77877 | |
| 9 | 01643-31032 | Washer | 75750-77877 | |
| 10 | 01597-01009 | Nut | 75750-77877 | |
| 11 | (418-T90-4364) | Tube | - | |
| 12 | (418-T90-4214) | Tube | - |
