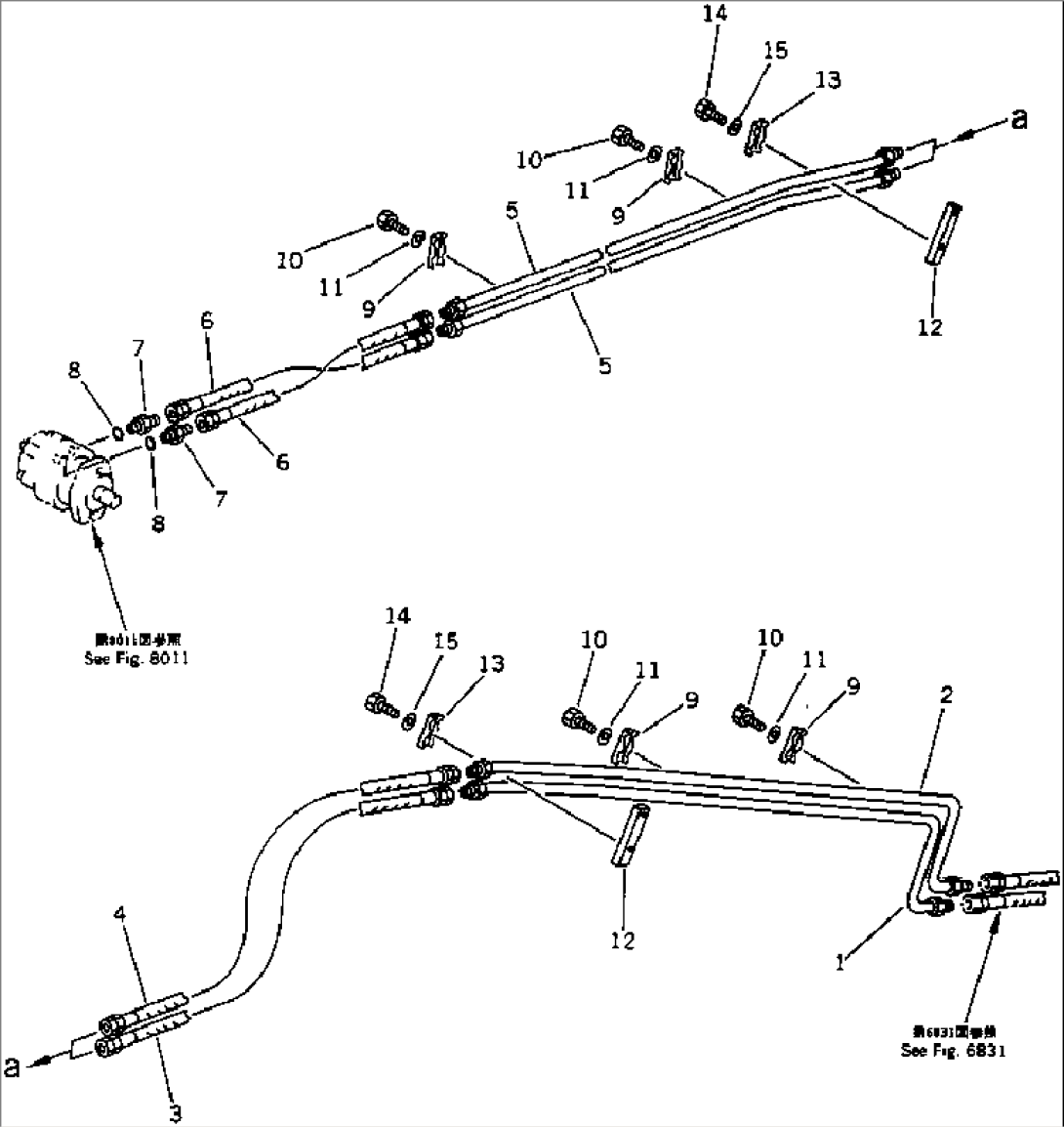

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 262-97-57680 | TUBE | 10026- | |
| 262-97-57620 | TUBE | 10001-10025 | ||
| 2 | 262-97-57690 | TUBE | 10026- | |
| 262-97-57630 | TUBE | 10001-10025 | ||
| 3 | 07108-20406 | HOSE | 10001- | |
| 4 | 07108-20407 | HOSE | 10001- | |
| 5 | 262-97-57650 | TUBE | 10001- | |
| 6 | 07108-20408 | HOSE | 10018- | |
| \0\07108-20407 | HOSE | 10001-10017 | ||
| 7 | 233-60-24530 | NIPPLE | 10001- | |
| 8 | 237-60-22240 | O-RING | 10001- | |
| 9 | 232-60-54820 | CLIP | 10001- | |
| 10 | 01010-51045 | BOLT | 10001- | |
| 11 | 01643-31032 | WASHER | 10001- | |
| 12 | 262-97-57530 | SEAT | 10001- | |
| 13 | 232-60-54820 | CLIP | 10001- | |
| 14 | 01010-51045 | BOLT | 10001- | |
| 15 | 01643-31032 | WASHER | 10001- |
