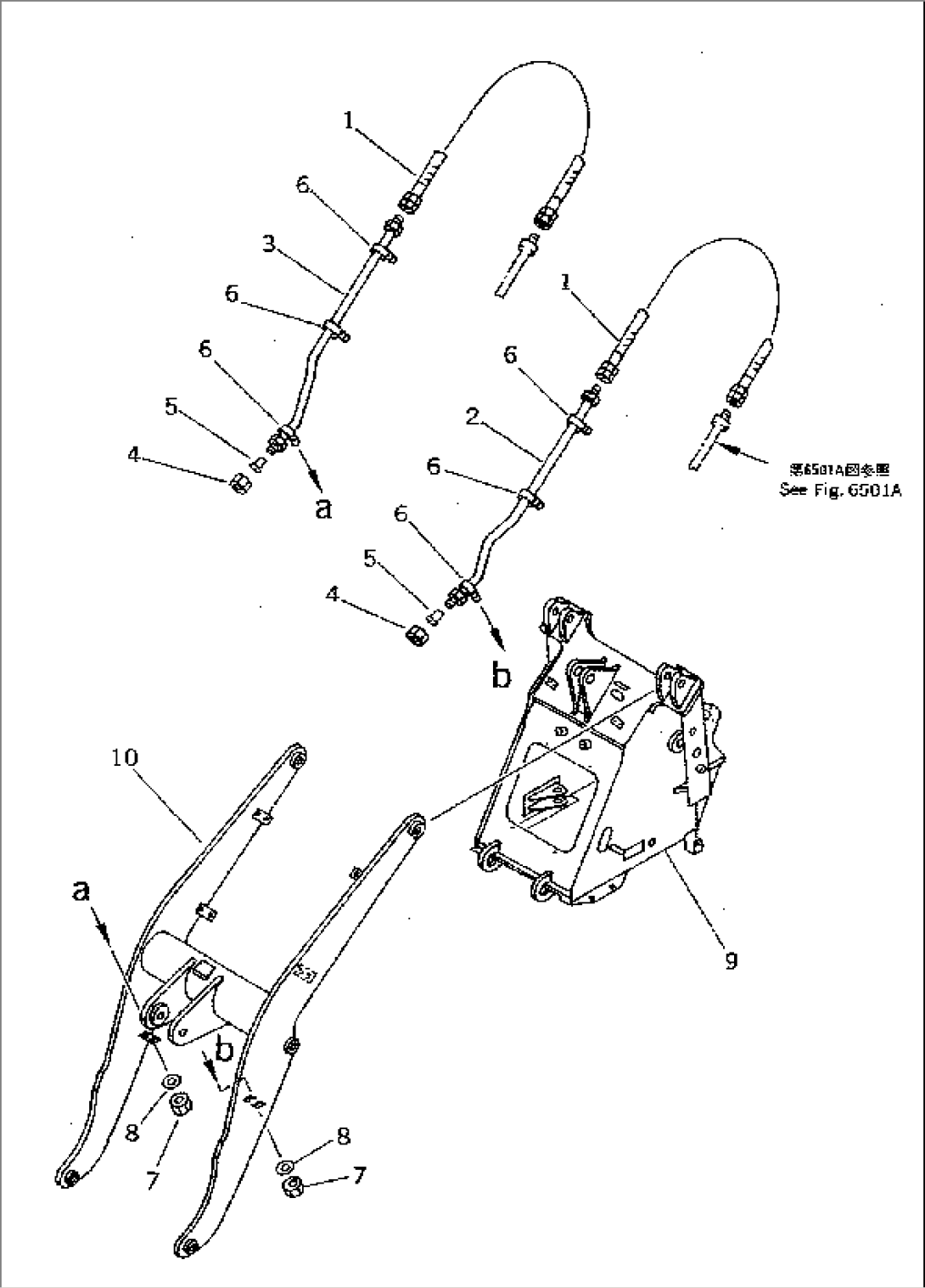

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 07123-40305 | HOSE | 12001- | |
| 2 | 415-877-1151 | TUBE | 10001- | |
| 3 | 415-877-1162 | TUBE | 10001- | |
| 4 | 07221-20315 | NUT | 12001- | |
| 5 | 07222-00312 | PLUG | 12001- | |
| 6 | 07283-31529 | CLIP | 12001- | |
| 7 | 01596-00807 | NUT | 12001- | |
| 8 | 01643-30823 | WASHER | 12001- | |
| 9 | 415-877-1511 | FRAME,(MODIFIED PART) | 12001- | |
| 9 | 415-877-1230 | PLATE (WELDED) | 12001- | |
| 9 | 01571-01218 | SEAT (WELDED) | 12001- | |
| 10 | 415-877-1531 | BOOM,(MODIFIED PART) | 12001- | |
| 10 | 415-877-1250 | PLATE (WELDED) | 12001- | |
| 10 | 415-877-1260 | PLATE (WELDED) | 12001- |
