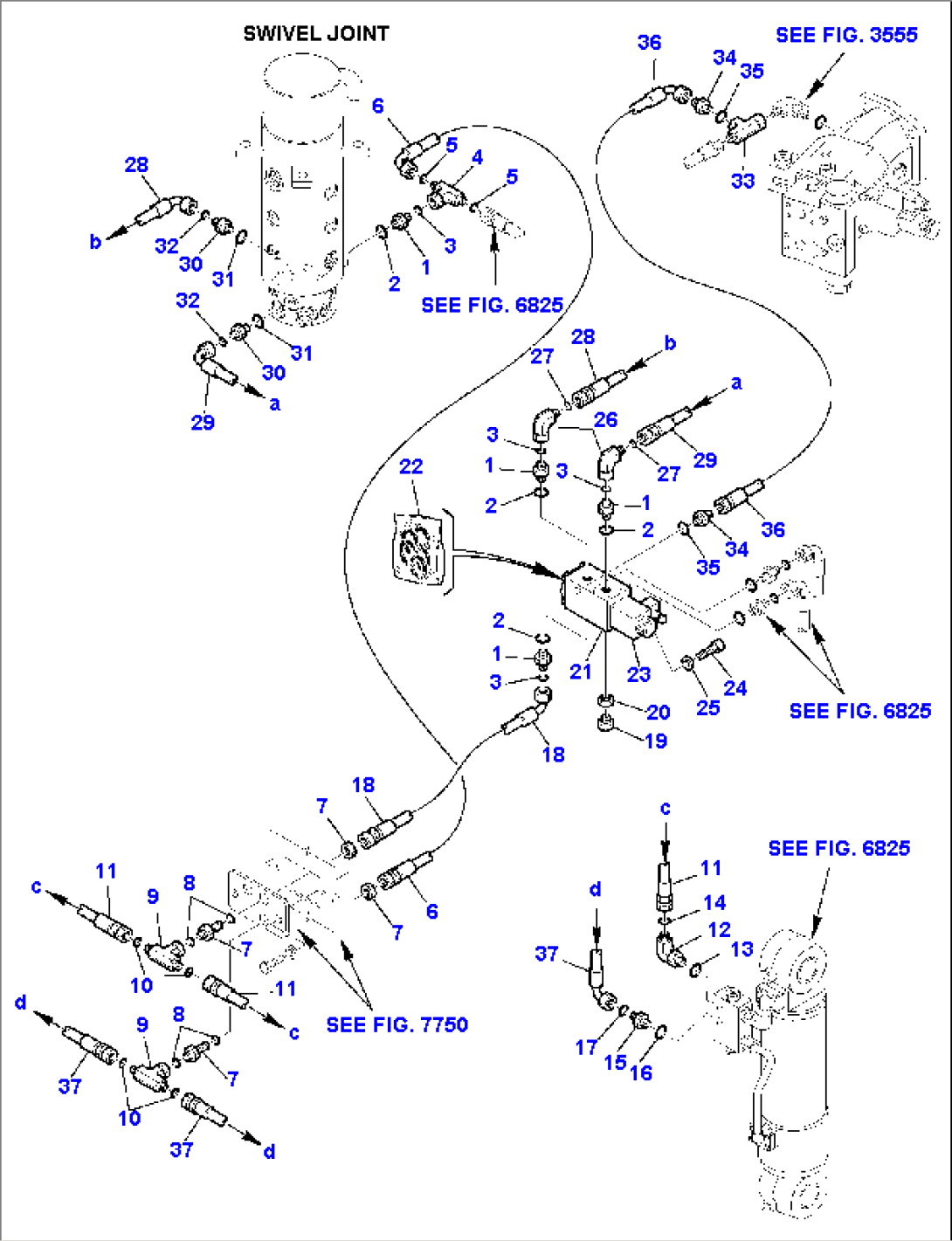

HYDRAULIC PIPING (FRONT BLADE WITH REAR OUTRIGGER) (1/2)

HYDRAULIC PIPING (FRONT BLADE WITH REAR OUTRIGGER) (1/2)

HYDRAULIC PIPING (FRONT BLADE WITH REAR OUTRIGGER) (1/2)

Item	Part No.	Part Name	Qty	Serial No.
1	226-09-12680	UNION		2260000001-
2	21D-09-69970	O-RING		2260000001-
3	21D-09-69670	O-RING		2260000001-
4	226-09-12370	TEE		2260000001-
5	21D-09-69670	O-RING		2260000001-
6	22E-09-12860	HOSE		2260000001-
7	226-09-12450	UNION		2260000001-
8	21D-09-69670	O-RING		2260000001-
9	226-09-12370	TEE		2260000001-
10	21D-09-69670	O-RING		2260000001-
11	226-09-11960	HOSE		2260000001-
12	226-09-12750	ELBOW		2260000001-
13	21D-09-69910	O-RING		2260000001-
14	21D-09-69670	O-RING		2260000001-
15	226-09-12670	UNION		2260000001-
16	21D-09-69910	O-RING		2260000001-
17	21D-09-69670	O-RING		2260000001-
18	226-09-11370	HOSE		2260000001-
19	21D-09-54740	PLUG		2260000001-
20	21D-09-86210	GASKET		2260000001-
21	22E-60-12600	VALVE		2260000001-
22	22E-60-12610	KIT, GASKET		2260000001-
23	22E-60-12620	COIL		2260000001-
24	01252-40670	SCREW		2260000001-
25	21D-09-73680	WASHER		2260000001-
26	226-09-12140	ELBOW		2260000001-
27	21D-09-69670	O-RING		2260000001-
28	226-09-11380	HOSE		2260000001-
29	226-09-11210	HOSE		2260000001-
30	226-09-12670	UNION		2260000001-
31	21D-09-69910	O-RING		2260000001-
32	21D-09-69670	O-RING		2260000001-
33	22E-62-11420	TEE		2260000001-
34	21D-09-51160	UNION		2260000001-
35	21D-09-69960	O-RING		2260000001-
36	22E-09-12910	HOSE		2260000001-
37	226-09-11220	HOSE		2260000001-
		SEE FIG. 3555
		SEE FIG. 6825
		SEE FIG. 7750
