| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 07103-50308 | HOSE | 11009- | |
| 2 | 07235-10315 | ELBOW | 11009- | |
| 3 | 07002-12034 | O-RING | 11009- | |
| 4 | 262-60-59340 | JOINT | 11009- | |
| 5 | 07043-70108 | PLUG | 11009- | |
| 6 | 07103-50325 | HOSE | 11009- |
- Главная
- Каталог запчастей
- Нарезчик продольных швов
- Gc380f 1a s/n 11009 up
- Hydraulic system
- Hydraulic piping (gate and door control valve drain)
Поиск по каталогу

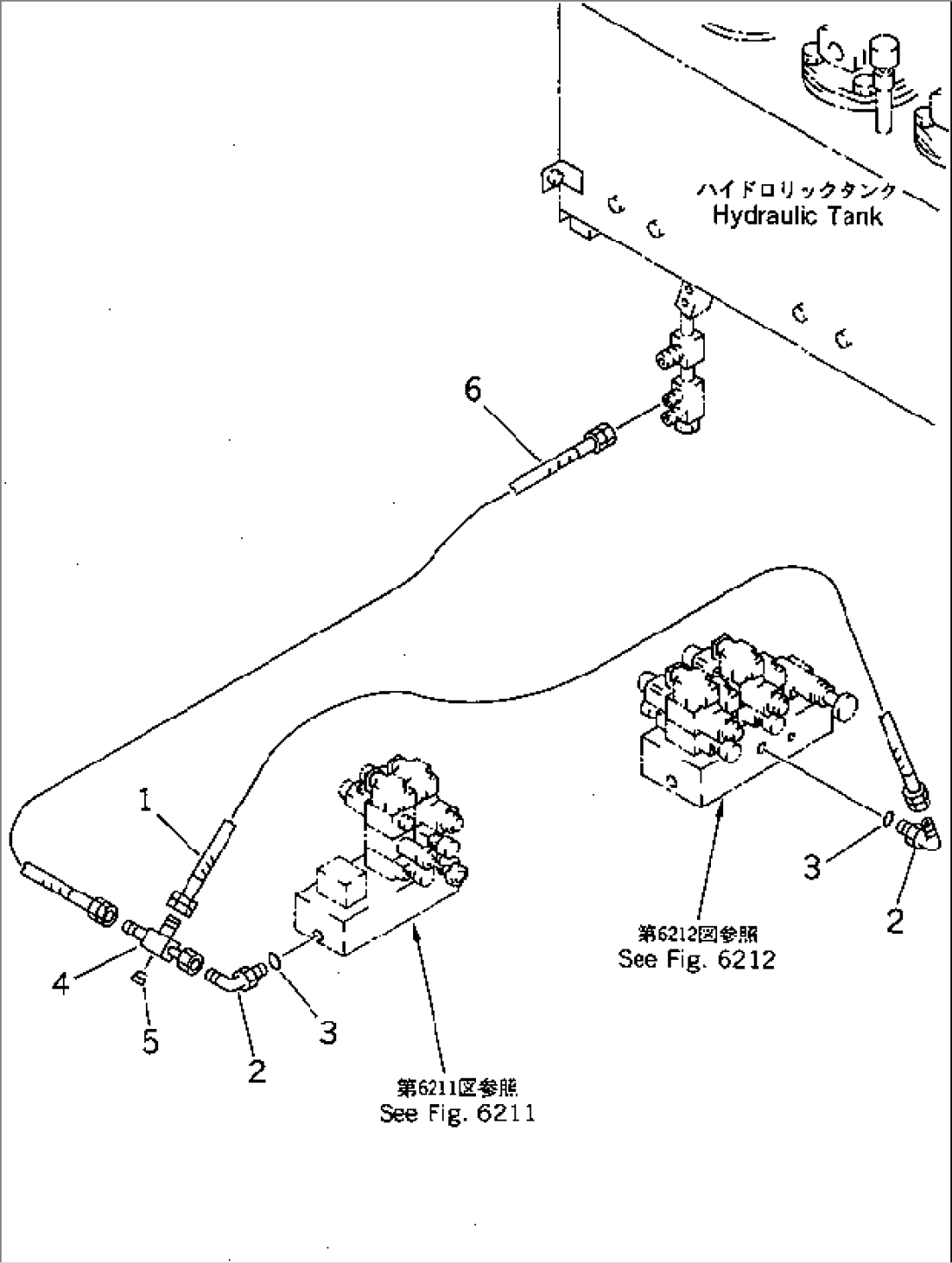

HYDRAULIC PIPING (GATE AND DOOR CONTROL VALVE DRAIN)
