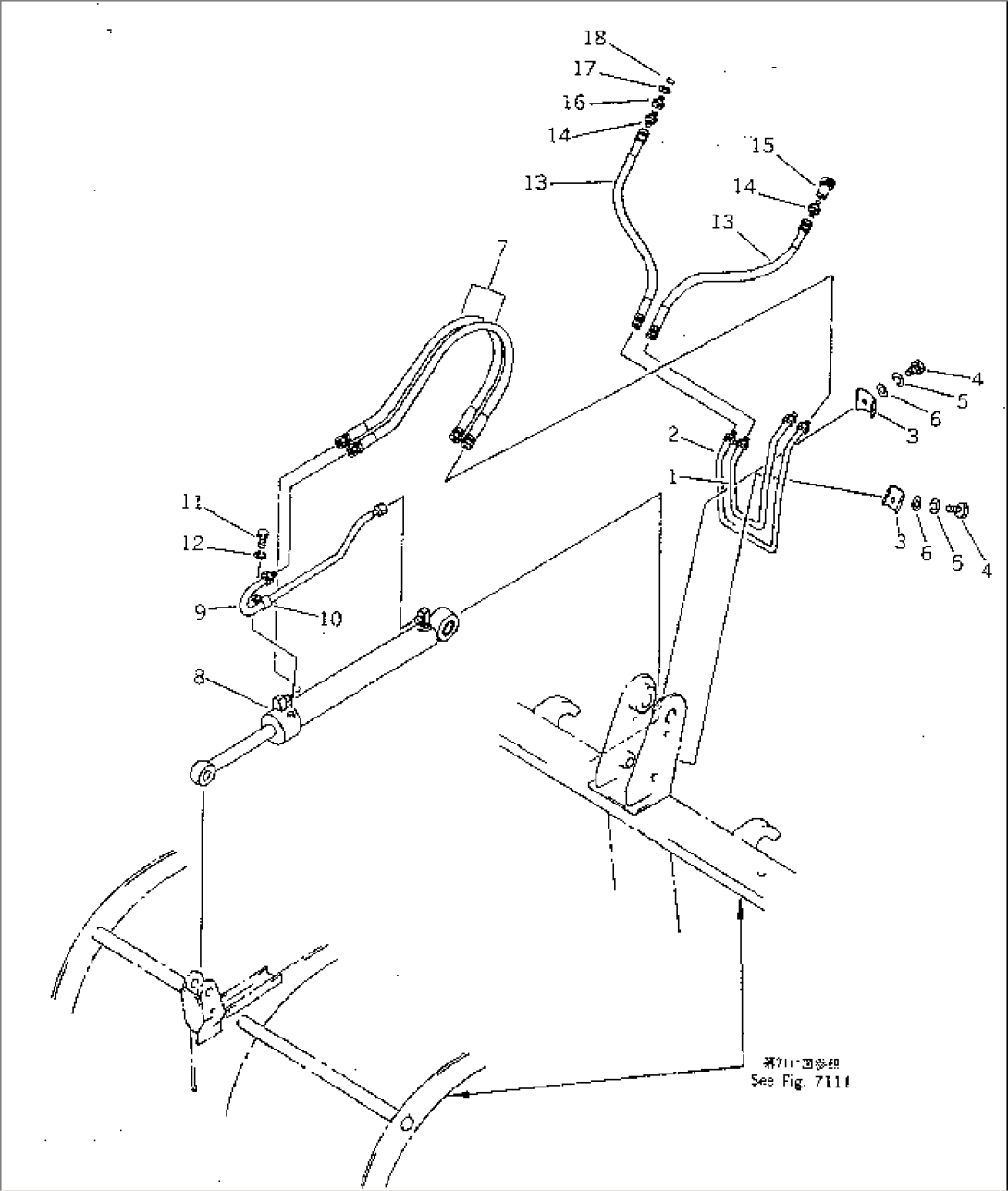

| Item | Part No. | Part Name | Qty | Serial No. |
| (FF7829-13100) | FORK ASS'Y | 3001- | ||
| 1 | FF7829-13170 | PIPE | 3001- | |
| 2 | FF7829-13180 | PIPE | 3001- | |
| 3 | WB8710-87550 | CLAMP | 3001- | |
| 4 | 01010-50616 | BOLT | 3001- | |
| 5 | 01602-20619 | WASHER,SPRING | 3001- | |
| 6 | 01640-20610 | WASHER | 3001- | |
| 7 | 07113-00206 | HOSE | 3001- | |
| 8 | (707-00-09010) | CYLINDER ASS'Y,(SEE FIG.7301) | 3001- | |
| 9 | FF7829-13160 | PIPE | 3001- | |
| 10 | 101-854-8442 | CLAMP | 3001- | |
| 11 | 01010-50816 | BOLT | 3001- | |
| 12 | 01602-20825 | WASHER,SPRING | 3001- | |
| 13 | 07113-00210 | HOSE | 3001- | |
| 14 | FF7820-91610 | NIPPLE | 3001- | |
| FF7810-91600 | COUPLING ASS'Y,SELF-SEAL | 3001- | ||
| 15 | FF7810-91610 | COUPLING | 3001- | |
| 16 | FF7810-91640 | RING | 3001- | |
| 17 | FF7810-91630 | O-RING | 3001- | |
| 18 | FF7810-91620 | COUPLING | 3001- |
