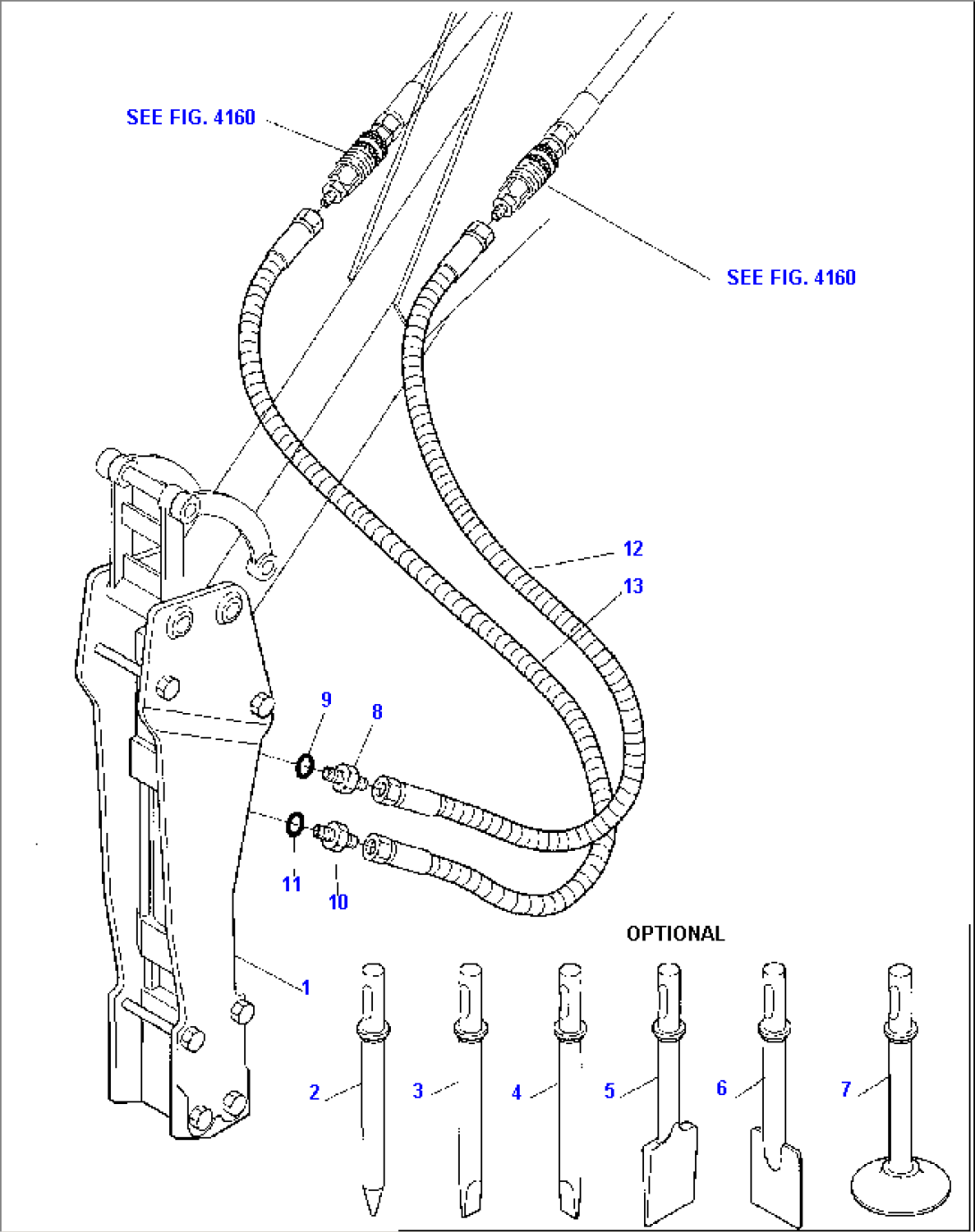

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 827010293 | HAMMER, ASSY. | 6335- | |
| 2 | 827010220 | POINT | 6335- | |
| 3 | 827010221 | POINT | 6335- | |
| 4 | 827010223 | POINT | 6335- | |
| 5 | 827010224 | POINT | 6335- | |
| 6 | 827010222 | POINT | 6335- | |
| 7 | 827010225 | COMPACTOR | 6335- | |
| 8 | 500351710 | UNION | 6335- | |
| 9 | 855051617 | O-RING | 6335- | |
| 10 | 500351747 | UNION | 6335- | |
| 11 | 855051617 | O-RING | 6335- | |
| 12 | 852300065 | HOSE | 6335- | |
| 13 | 852090034 | HOSE | 6335- | |
| SEE FIG. 4160 |
