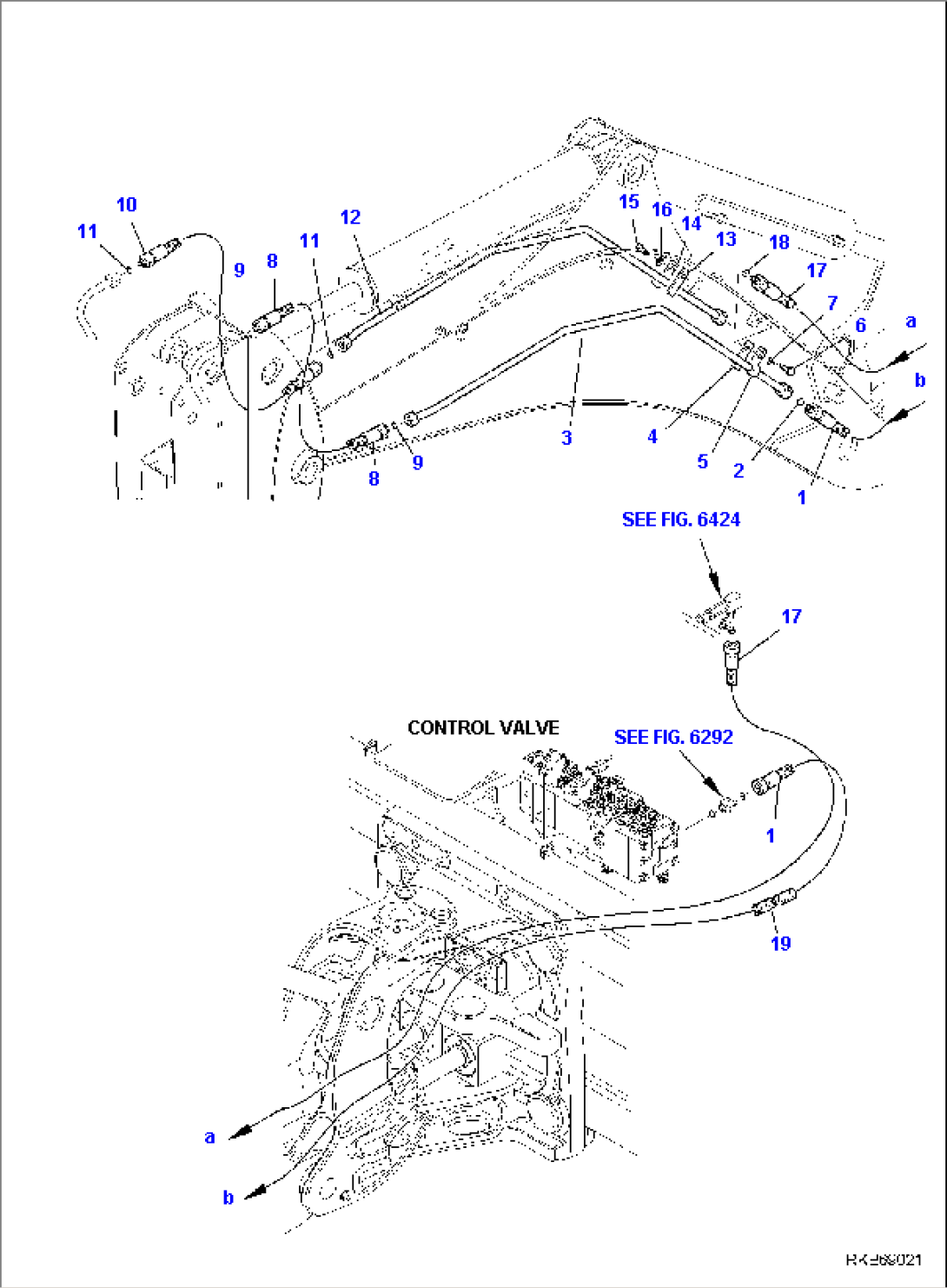

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 42N-62-14530 | HOSE | F61778- | |
| 2 | 02896-11018 | O-RING | F61778- | |
| 3 | 42N-62-14810 | PIPE | F61778- | |
| 4 | 42N-62-14241 | PLATE | F61778- | |
| 5 | 42N-62-14231 | CLAMP | F61778- | |
| 6 | 01016-51030 | BOLT | F61778- | |
| 7 | 01643-11032 | WASHER | F61778- | |
| 8 | 42N-62-14540 | HOSE | F61778- | |
| 9 | 02896-11018 | O-RING | F61778- | |
| 10 | 42N-62-14550 | HOSE | F61778- | |
| 11 | 37B-09-15021 | O-RING | F61778- | |
| 12 | 42N-62-14820 | PIPE | F61778- | |
| 13 | 42N-62-14241 | PLATE | F61778- | |
| 14 | 42N-62-14221 | CLAMP | F61778- | |
| 15 | 01016-51030 | BOLT | F61778- | |
| 16 | 01643-11032 | WASHER | F61778- | |
| 17 | 42N-62-14522 | HOSE | F61778- | |
| 18 | 37B-09-15021 | O-RING | F61778- | |
| 19 | 42N-62-17150 | PROTECTION | F61778- | |
| SEE FIG. 6292 | ||||
| SEE FIG. 6424 |
