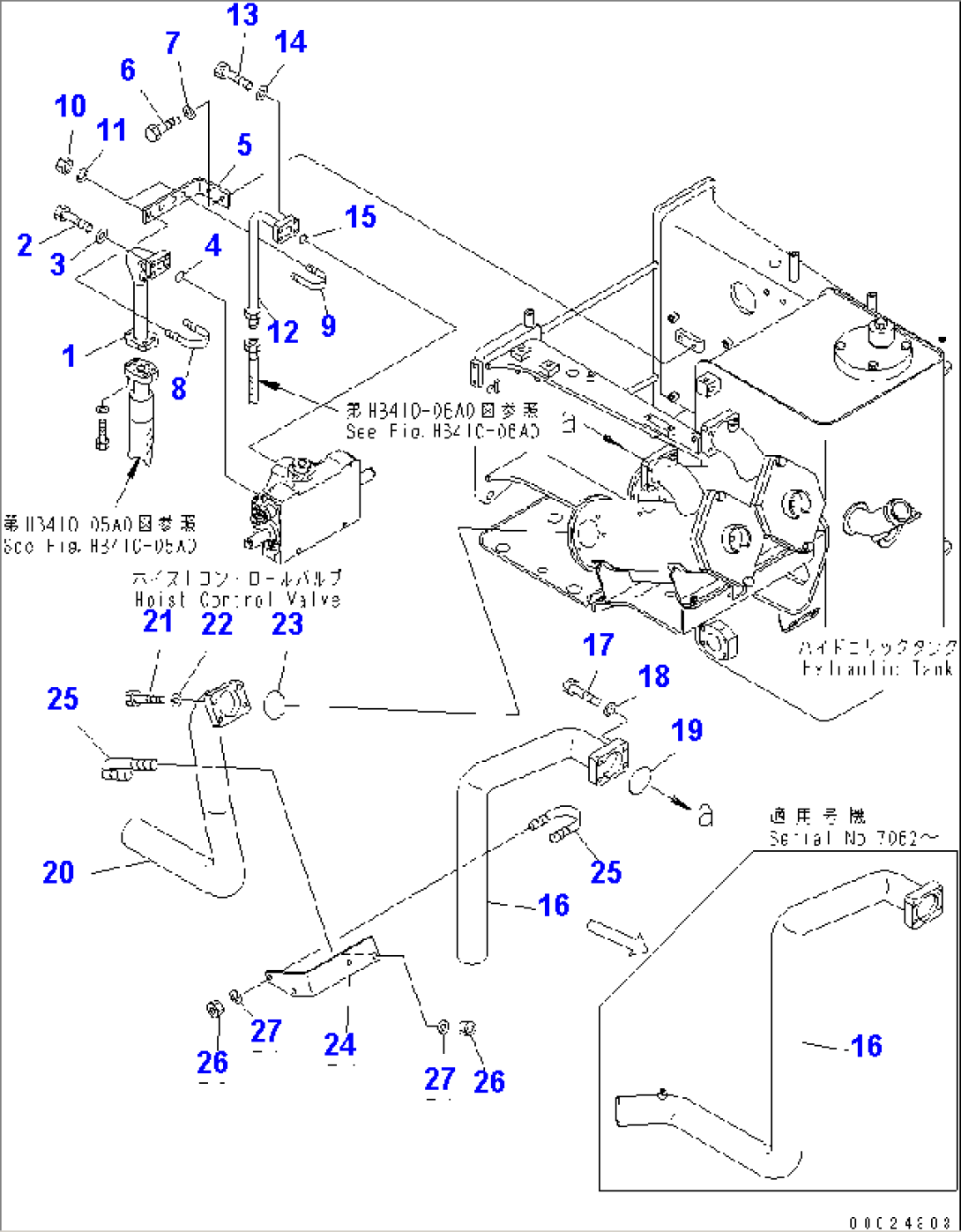

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 569-61-83231 | TUBE | 7704- | |
| 1 | \0\569-61-83230 | TUBE | 7001-7703 | |
| 2 | 07372-21035 | BOLT | 7001- | |
| 3 | 01643-51032 | WASHER | 7001- | |
| 4 | 07000-F3032 | O-RING | 7001- | |
| 5 | 569-61-83380 | BRACKET | 7001- | |
| 6 | 01010-81225 | BOLT | 7001- | |
| 7 | 01643-31232 | WASHER | 7001- | |
| 8 | 07283-33442 | CLIP | 7001- | |
| 9 | 07283-32236 | CLIP | 7001- | |
| 10 | 01597-01009 | NUT | 7001- | |
| 11 | 01643-31032 | WASHER | 7001- | |
| 12 | 569-61-83261 | TUBE | 7001- | |
| 13 | 07372-21035 | BOLT | 7001- | |
| 14 | 01643-51032 | WASHER | 7001- | |
| 15 | 07000-F3035 | O-RING | 7001- | |
| 16 | 569-61-85244 | TUBE | 7704- | |
| 16 | \0\569-61-85243 | TUBE | 7062-7703 | |
| 16 | 569-61-85242 | TUBE | 7001-7061 | |
| 17 | 07372-21245 | BOLT | 7001- | |
| 18 | 01643-51232 | WASHER | 7001- | |
| 19 | 07000-F2075 | O-RING | 7001- | |
| 20 | 569-61-86114 | TUBE | 7704- | |
| 20 | \0\569-61-86113 | TUBE | 7001-7703 | |
| 21 | 07372-21245 | BOLT | 7001- | |
| 22 | 01643-51232 | WASHER | 7001- | |
| 23 | 07000-F2075 | O-RING | 7001- | |
| 24 | 569-61-85582 | BRACKET | 7001- | |
| 25 | 07283-37663 | CLIP | 7001- | |
| 26 | 01597-01009 | NUT | 7001- | |
| 27 | 01643-31032 | WASHER | 7001- |
