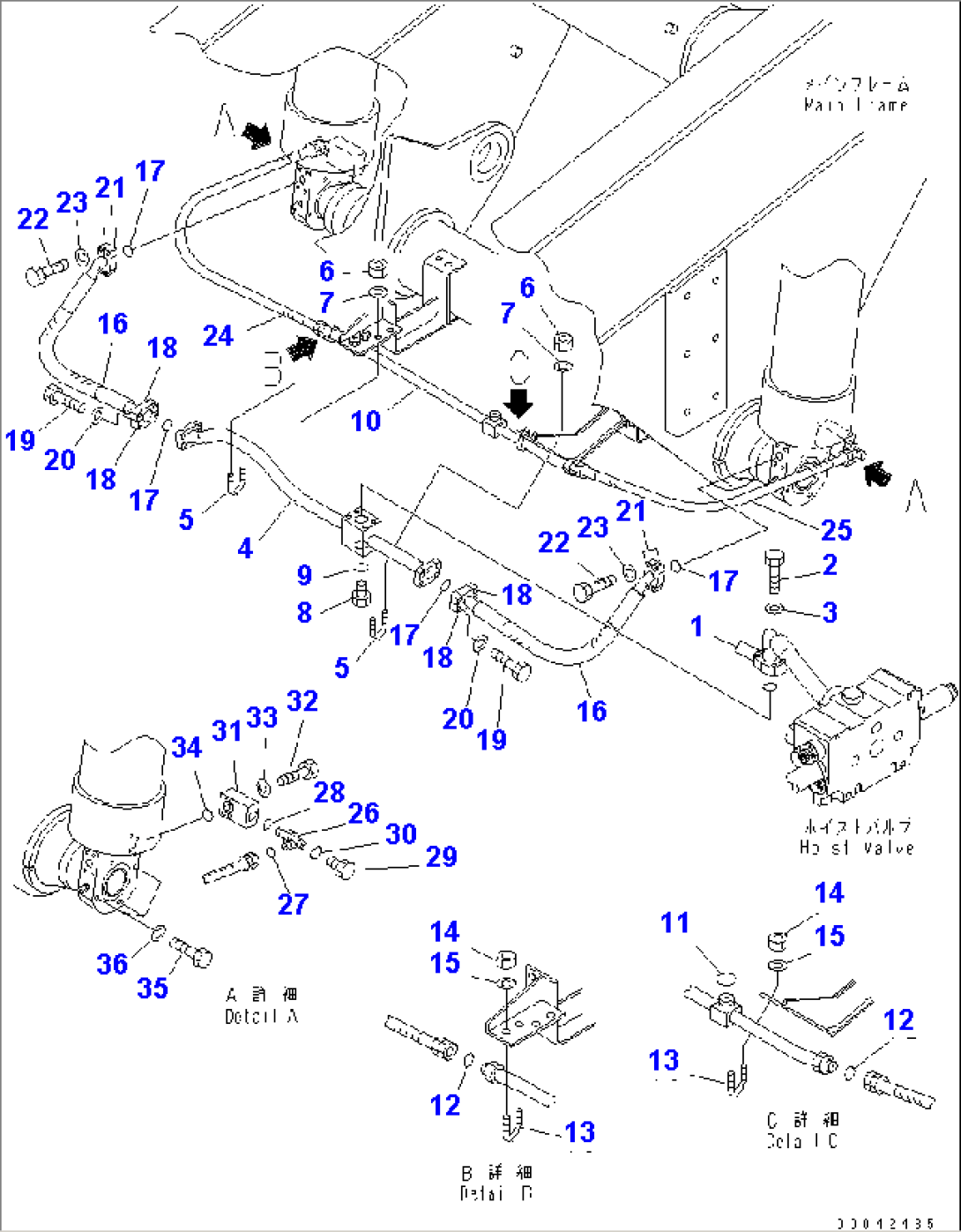

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 07371-31049 | FLANGE | 3001- | |
| 2 | 01010-81035 | BOLT | 3001- | |
| 3 | 01643-51032 | WASHER | 3001- | |
| 4 | 566-61-83521 | TUBE | 7569- | |
| 4 | 566-61-83520 | TUBE | 3001-7568 | |
| 5 | 07283-32738 | CLIP | 3001- | |
| 6 | 01597-01009 | NUT | 3001- | |
| 7 | 01643-31032 | WASHER | 3001- | |
| 8 | 07040-11007 | PLUG | 3001- | |
| 9 | 07002-21023 | O-RING | 3001- | |
| 10 | 566-61-83511 | TUBE | 3001- | |
| 11 | 02896-21015 | O-RING | 3001- | |
| 12 | 02896-21012 | O-RING | 3001- | |
| 13 | 07283-32236 | CLIP | 3001- | |
| 14 | 01597-01009 | NUT | 3001- | |
| 15 | 01643-31032 | WASHER | 3001- | |
| 16 | 566-61-43250 | HOSE | 3001- | |
| 17 | 07000-F3025 | O-RING | 3001- | |
| 18 | 07371-30640 | FLANGE | 3001- | |
| 19 | 01010-81035 | BOLT | 3001- | |
| 20 | 01643-51032 | WASHER | 3001- | |
| 21 | 07371-30638 | FLANGE | 3001- | |
| 22 | 01010-80830 | BOLT | 3001- | |
| 23 | 01643-50823 | WASHER | 3001- | |
| 24 | 02765-00408 | HOSE | 3001- | |
| 25 | 02765-00407 | HOSE, 700MM | 3001- | |
| 26 | 02782-50422 | ELBOW | 3001- | |
| 27 | 07002-22034 | O-RING | 3001- | |
| 28 | 02896-21012 | O-RING | 3001- | |
| 29 | 07040-11007 | PLUG | 3001- | |
| 30 | 07002-21023 | O-RING | 3001- | |
| 31 | 566-61-43830 | BLOCK | 3001- | |
| 32 | 01010-80850 | BOLT | 3001- | |
| 33 | 01643-50823 | WASHER | 3001- | |
| 34 | 07000-F3022 | O-RING | 3001- | |
| 35 | 01010-81016 | BOLT | 3001- | |
| 36 | 01643-31032 | WASHER | 3001- |
