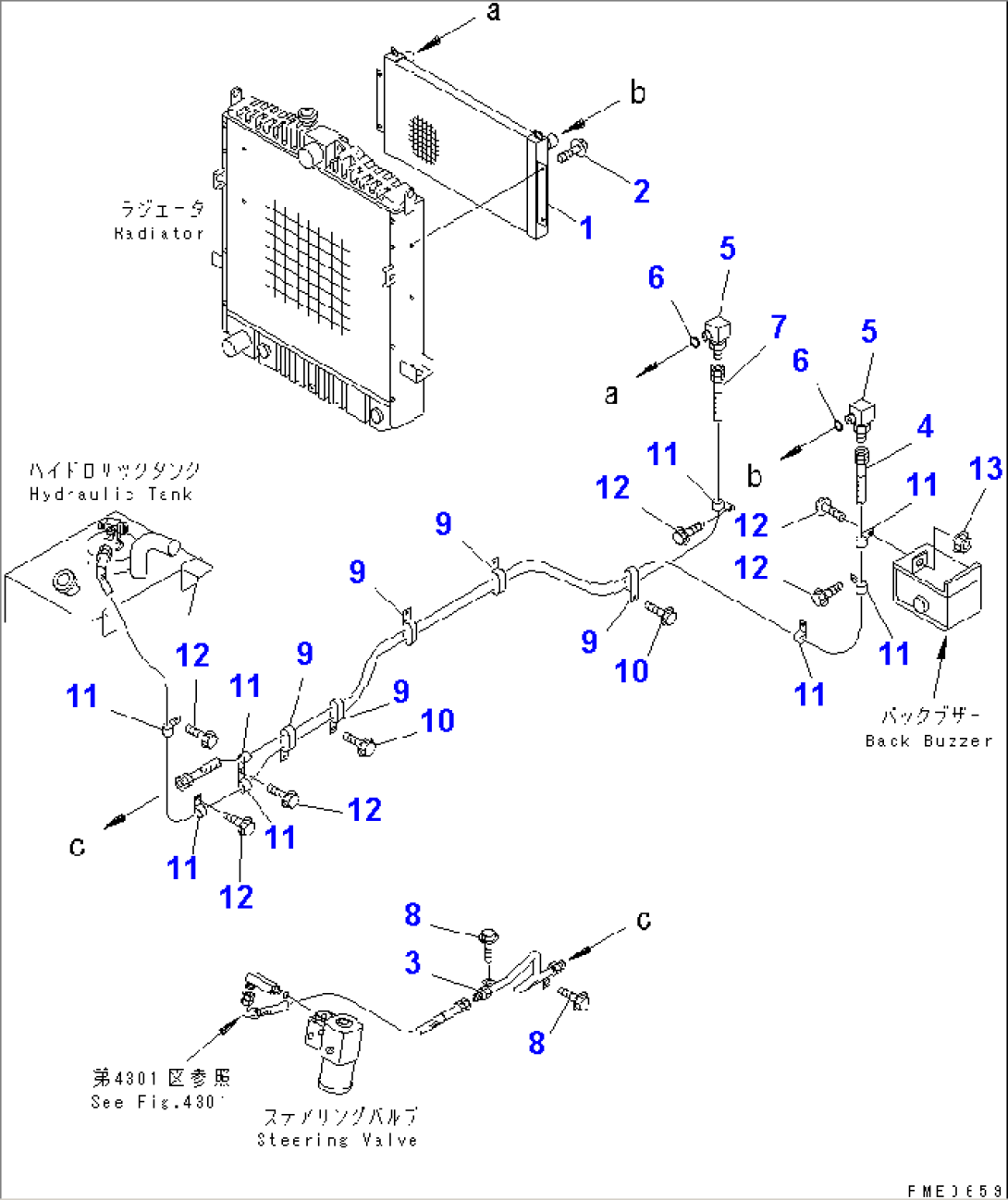

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 418-62-25120 | OIL COOLER ASS'Y | 50001- | |
| 2 | 01435-00816 | BOLT | 50001- | |
| 3 | 418-62-25110 | TUBE | 50001- | |
| 4 | 418-62-25150 | HOSE | 50001- | |
| 5 | 07235-10628 | ELBOW | 50001- | |
| 6 | 07002-12434 | O-RING | 50001- | |
| 7 | 418-62-25160 | HOSE | 50001- | |
| 8 | 01435-01220 | BOLT | 50001- | |
| 9 | 198-61-14180 | CLIP | 50001- | |
| 10 | 01435-01016 | BOLT | 50001- | |
| 11 | 04434-52712 | CLIP | 50001- | |
| 12 | 01435-01016 | BOLT | 50001- | |
| 13 | 01584-01008 | NUT | 50001- |
