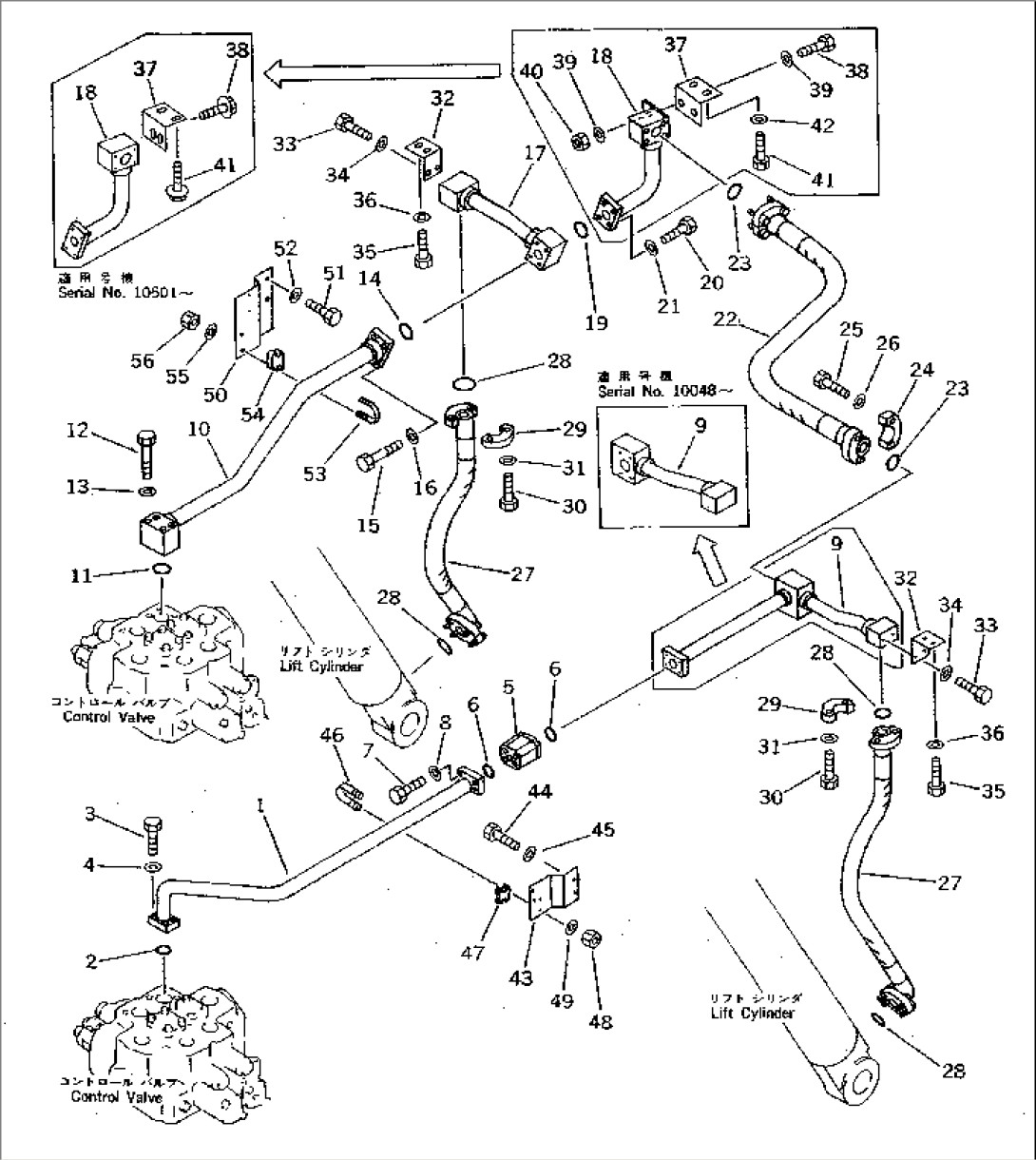

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 427-62-14943 | TUBE | 10501- | |
| 427-62-14942 | TUBE | 10048-10499 | ||
| \3\427-62-14941 | TUBE | 10001-10047 | ||
| (427-62-14942{427-62-14633¤} | ||||
| 01011-51220(4)) | ||||
| 2 | 07000-F3048 | O-RING | 10054- | |
| \0\07000-13048 | O-RING | 10001-10053 | ||
| 3 | 01010-81250 | BOLT | 10001- | |
| 4 | 01643-31232 | WASHER | 10001- | |
| 5 | (702-23-41901) | VALVE ASS'Y,CHECK (SEE FIG.6245) | 10001- | |
| (\2\702-23-41900) | VALVE ASS'Y,CHECK (SEE FIG.6245) | (10001-10064) | ||
| 6 | 07000-F3045 | O-RING | 10054- | |
| \0\07000-13045 | O-RING | 10001-10053 | ||
| 7 | 01011-81220 | BOLT | 10048- | |
| 01011-51225 | BOLT | 10001-10047 | ||
| 8 | 01643-31232 | WASHER | 10001- | |
| 9 | 427-62-14633 | TUBE | 10048- | |
| 427-62-14632 | TUBE | 10001-10047 | ||
| 10 | 427-62-15231 | TUBE | 10526- | |
| 427-62-14642 | TUBE | 10501-10525 | ||
| 427-62-15230 | TUBE | 10034-10499 | ||
| 427-62-14641 | TUBE | 10001-10033 | ||
| 11 | 07000-F3048 | O-RING | 10054- | |
| \0\07000-13048 | O-RING | 10001-10053 | ||
| 12 | 427-62-15260 | BOLT | 10034- | |
| 01011-51230 | BOLT | 10001-10033 | ||
| 13 | 01643-31232 | WASHER | 10001- | |
| 14 | 07000-F2055 | O-RING | 10054- | |
| \0\07000-12055 | O-RING | 10001-10053 | ||
| 15 | 07372-21650 | BOLT | 10001- | |
| 16 | 01643-51645 | WASHER | 10001- | |
| 17 | 427-62-14662 | TUBE | 10001- | |
| 18 | 427-62-14651 | TUBE | 10501- | |
| 427-62-14650 | TUBE | 10001-10499 | ||
| 19 | 07000-F3048 | O-RING | 10054- | |
| \0\07000-13048 | O-RING | 10001-10053 | ||
| 20 | 01010-81460 | BOLT | 10001- | |
| 21 | 01643-31445 | WASHER | 10001- | |
| 22 | 427-62-15720 | HOSE | 10001- | |
| (\2\07083-01408) | HOSE | (10001-10061) | ||
| 23 | 07000-F3048 | O-RING | 10054- | |
| \0\07000-13048 | O-RING | 10001-10053 | ||
| 24 | 07371-51470 | FLANGE,SPLIT | 10001- | |
| 25 | 01010-81455 | BOLT | 10001- | |
| 26 | 01643-31445 | WASHER | 10001- | |
| 27 | 427-62-15560 | HOSE | 10001- | |
| (\2\07084-01413) | HOSE | (10001-10059) | ||
| 28 | 07000-F3048 | O-RING | 10054- | |
| \0\07000-13048 | O-RING | 10001-10053 | ||
| 29 | 07371-51470 | FLANGE,SPLIT | 10001- | |
| 30 | 01010-81455 | BOLT | 10001- | |
| 31 | 01643-31445 | WASHER | 10001- | |
| 32 | 427-62-13291 | PLATE | 10001- | |
| 33 | 01010-81435 | BOLT | 10001- | |
| 34 | 01643-31445 | WASHER | 10001- | |
| 35 | 01010-81435 | BOLT | 10001- | |
| 36 | 01643-31445 | WASHER | 10001- | |
| 37 | 427-62-14571 | PLATE | 10501- | |
| 427-62-14570 | PLATE | 10001-10499 | ||
| 38 | 01435-01225 | BOLT | 10501- | |
| \0\01010-51240 | BOLT | 10001-10499 | ||
| 39 | 01643-31232 | WASHER | 10001-10499 | |
| 40 | 01580-11210 | NUT | 10001-10499 | |
| 41 | 01435-01225 | BOLT | 10501- | |
| \0\01010-51230 | BOLT | 10001-10499 | ||
| 42 | 01643-31232 | WASHER | 10001-10499 | |
| 43 | 427-62-13351 | PLATE | 10001- | |
| 44 | 01435-01220 | BOLT | 10501- | |
| \0\01010-51225 | BOLT | 10001-10499 | ||
| 45 | 01643-31232 | WASHER | 10001-10499 | |
| 46 | 07283-34354 | CLIP | 10001- | |
| 47 | 07283-54353 | SEAT | 10001- | |
| 48 | 01597-01009 | NUT | 10001- | |
| 49 | 01643-31032 | WASHER | 10001- | |
| 50 | 427-62-14562 | PLATE | 10001- | |
| 51 | 01435-01225 | BOLT | 10501- | |
| \0\01010-51230 | BOLT | 10001-10499 | ||
| 52 | 01643-31232 | WASHER | 10001-10499 | |
| 53 | 07283-36163 | CLIP | 10001- | |
| 54 | 07283-56170 | SEAT | 10001- | |
| 55 | 01643-31032 | WASHER | 10001- | |
| 56 | 01597-01009 | NUT | 10001- |
