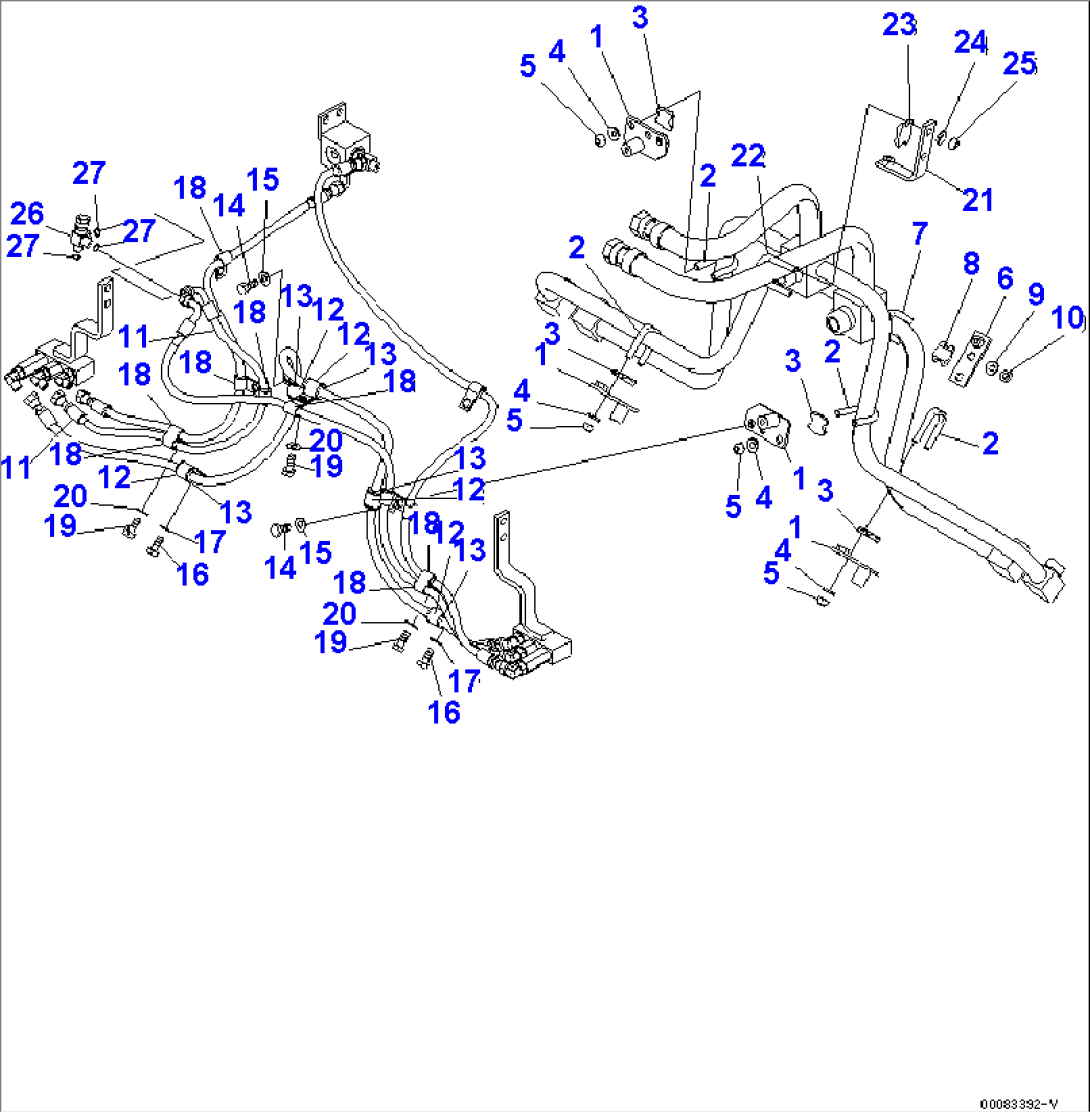

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 418-U77-4570 | BRACKET | 75001- | |
| 2 | 07283-32746 | CLIP | 75001- | |
| 3 | 07283-52737 | SEAT | 75001- | |
| 4 | 01643-31032 | WASHER | 75001- | |
| 5 | 01597-01009 | NUT | 75001- | |
| 6 | 417-06-32280 | BRACKET | 75001- | |
| 7 | 07283-32746 | CLIP | 75001- | |
| 8 | 07283-52737 | SEAT | 75001- | |
| 9 | 01643-31032 | WASHER | 75001- | |
| 10 | 01597-01009 | NUT | 75001- | |
| 11 | 418-T91-4360 | HOSE, 670MM | 75001- | |
| 12 | 04434-51912 | CLIP | 75001- | |
| 13 | 07095-20213 | CUSHION | 75001- | |
| 14 | 01010-81025 | BOLT | 75001- | |
| 15 | 01643-31032 | WASHER | 75001- | |
| 16 | 01010-81020 | BOLT | 75001- | |
| 17 | 01643-31032 | WASHER | 75001- | |
| 18 | 04434-51212 | CLIP | 75001- | |
| 19 | 01010-81025 | BOLT | 75001- | |
| 20 | 01643-31032 | WASHER | 75001- | |
| 21 | 418-U77-4950 | BRACKET | 75001- | |
| 22 | 07283-33450 | CLIP | 75001- | |
| 23 | 07283-53444 | SEAT | 75001- | |
| 24 | 01643-31032 | WASHER | 75001- | |
| 25 | 01597-01009 | NUT | 75001- | |
| 26 | 418-T91-4340 | TEE | 75001- | |
| 27 | 02896-11008 | O-RING | 75001- |
