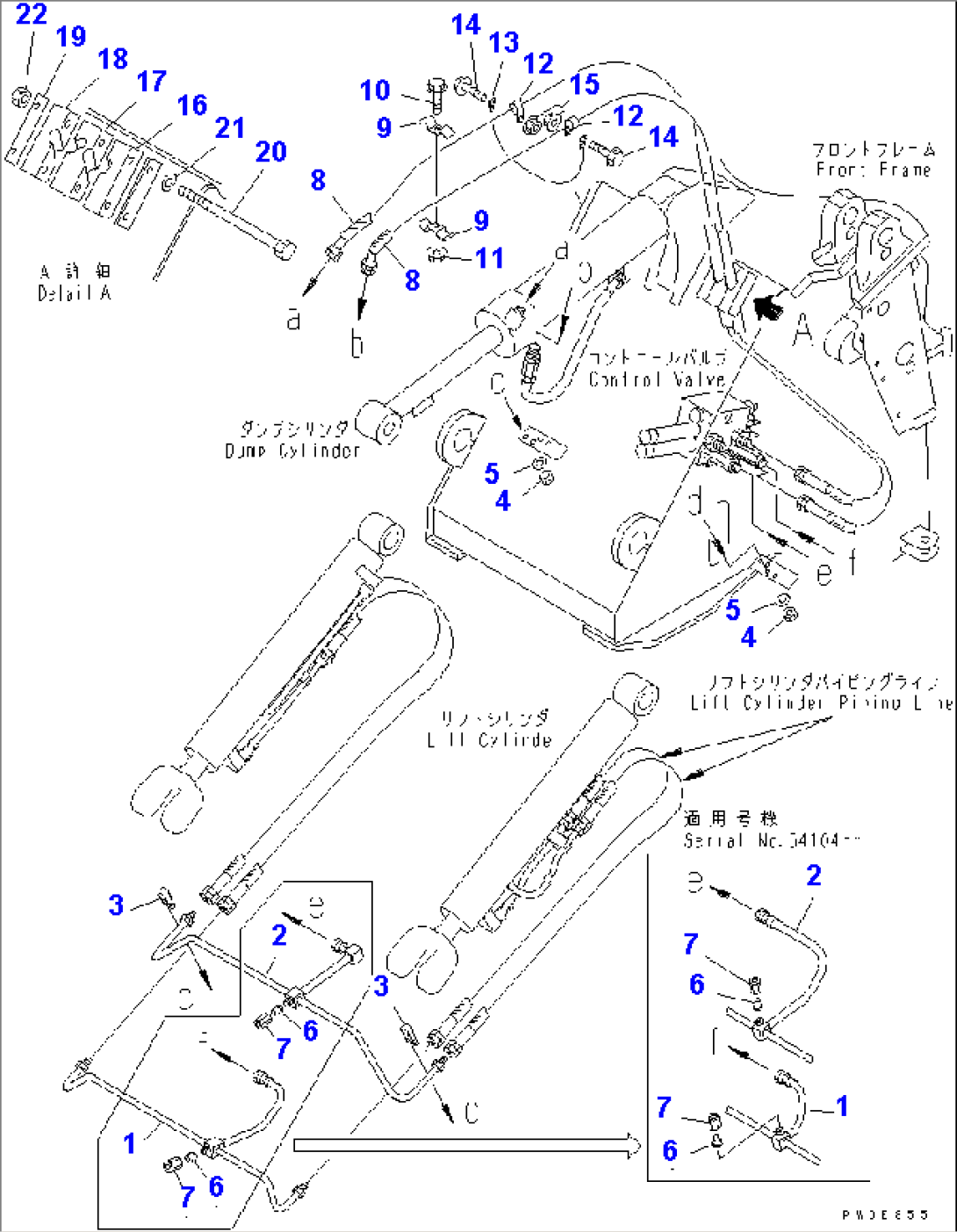

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 417-62-23720 | TUBE | 54104- | |
| 1 | 417-62-23190 | TUBE | 54001-54103 | |
| 2 | 417-62-23730 | TUBE | 54104- | |
| 2 | 417-62-23180 | TUBE | 54001-54103 | |
| 3 | 07283-32236 | CLIP | 54001- | |
| 4 | 01597-01009 | NUT | 54001- | |
| 5 | 01643-31032 | WASHER | 54001- | |
| 6 | 07221-20315 | NUT | 54001- | |
| 7 | 07222-00312 | PLUG | 54001- | |
| 8 | 417-62-23120 | HOSE | 54001- | |
| 9 | 417-62-13470 | CLAMP | 54001- | |
| 10 | 01435-01050 | BOLT | 54001- | |
| 11 | 01584-01008 | NUT | 54001- | |
| 12 | 424-09-12570 | CLIP | 54001- | |
| 13 | 419-62-13460 | WIRE | 54001- | |
| 14 | 01435-01225 | BOLT | 54001- | |
| 15 | 01584-01210 | NUT | 54001- | |
| 417-62-13452 | RUBBER ASS'Y | 54001- | ||
| 16 | 417-62-13631 | RUBBER | 54001- | |
| 17 | 417-62-13641 | RUBBER | 54001- | |
| 18 | 417-62-13651 | RUBBER | 54001- | |
| 19 | 417-62-23550 | PLATE | 54001- | |
| 20 | 01011-81045 | BOLT | 54001- | |
| 21 | 01643-31032 | WASHER | 54001- | |
| 22 | 01594-01008 | NUT | 54001- |
