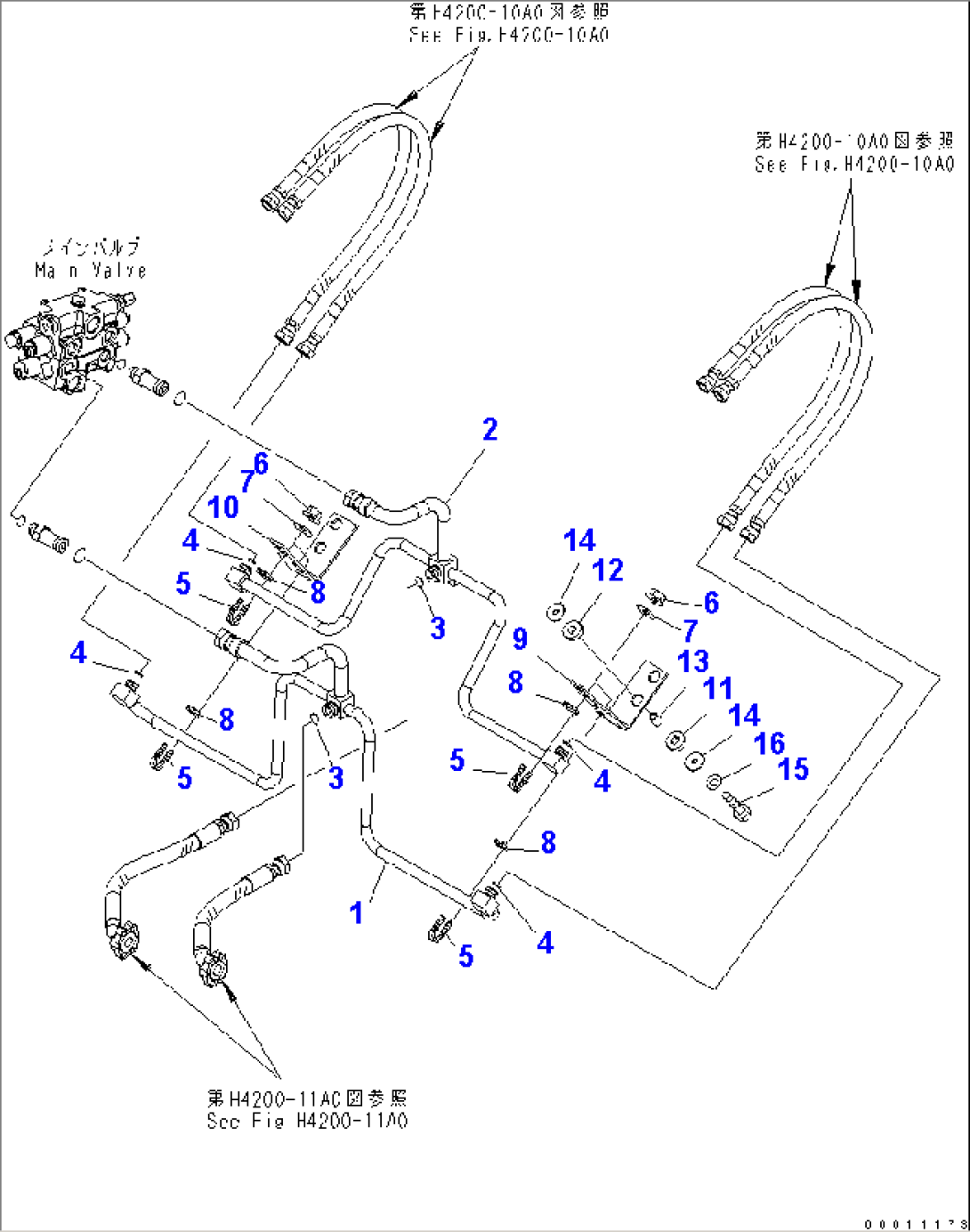

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 417-62-33172 | TUBE | 65043- | |
| 1 | 417-62-33171 | TUBE | 65001-65042 | |
| 2 | 417-62-33181 | TUBE | 65001- | |
| 3 | 02896-11018 | O-RING | 65001- | |
| 4 | 02896-11015 | O-RING | 65001- | |
| 5 | 07283-32236 | CLIP | 65001- | |
| 6 | 01597-01009 | NUT | 65001- | |
| 7 | 01643-31032 | WASHER | 65001- | |
| 8 | 07283-52232 | SEAT | 65001- | |
| 9 | 417-62-33281 | BRACKET,L.H. | 69271- | |
| 9 | \0\417-62-33280 | BRACKET,L.H. | 65001-69270 | |
| 10 | 417-62-33291 | BRACKET,R.H. | 69271- | |
| 10 | \0\417-62-33290 | BRACKET,R.H. | 65001-69270 | |
| 11 | 415-64-13130 | CUSHION | 65001- | |
| 12 | 419-43-17930 | CUSHION | 65001- | |
| 13 | 417-54-13470 | SPACER | 65001- | |
| 14 | 415-64-13120 | WASHER | 65001- | |
| 15 | 01010-81060 | BOLT | 65001- | |
| 16 | 01643-31032 | WASHER | 65001- |
