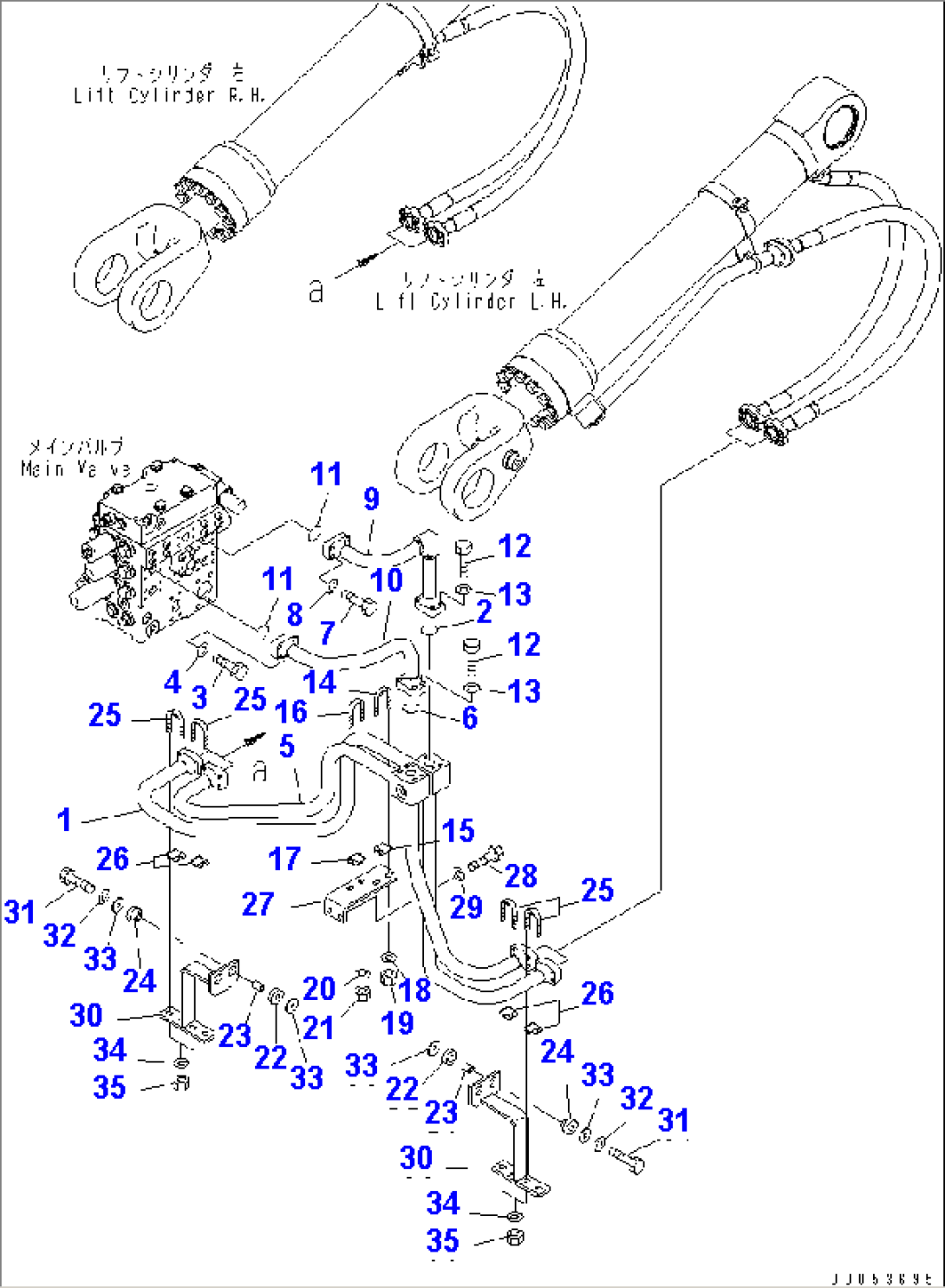

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 421-62-43243 | TUBE | 85075- | |
| 1 | (\2\421-62-43242) | TUBE | (85075-90172) | |
| 1 | 421-62-43241 | TUBE | 85001-85074 | |
| 2 | 07000-13035 | O-RING | 85001- | |
| 3 | 07372-21040 | BOLT | 85001- | |
| 4 | 01643-51032 | WASHER | 85001- | |
| 5 | 421-62-43252 | TUBE | 85075- | |
| 5 | (\2\421-62-43251) | TUBE | (85075-90172) | |
| 5 | 421-62-43250 | TUBE | 85001-85074 | |
| 6 | 07000-13035 | O-RING | 85001- | |
| 7 | 07372-21040 | BOLT | 85001- | |
| 8 | 01643-51032 | WASHER | 85001- | |
| 9 | 421-62-43140 | TUBE | 85001- | |
| 10 | 421-62-43150 | TUBE | 85001- | |
| 11 | 07000-13035 | O-RING | 85001- | |
| 12 | 07372-21040 | BOLT | 85001- | |
| 13 | 01643-51032 | WASHER | 85001- | |
| 14 | 07283-33450 | CLIP | 85001- | |
| 15 | 07283-53444 | SEAT | 85001- | |
| 16 | 07283-33450 | CLIP | 85001- | |
| 17 | 07283-53444 | SEAT | 85001- | |
| 18 | 01643-31032 | WASHER | 85001- | |
| 19 | 01597-01009 | NUT | 85001- | |
| 20 | 01643-31032 | WASHER | 85001- | |
| 21 | 01597-01009 | NUT | 85001- | |
| 22 | 415-64-13130 | CUSHION | 85001- | |
| 23 | 421-62-18560 | SPACER | 85001- | |
| 24 | 419-43-17930 | CUSHION | 85001- | |
| 25 | 07283-33450 | CLIP | 85001- | |
| 26 | 07283-53444 | SEAT | 85001- | |
| 27 | 421-62-43270 | BRACKET | 85001- | |
| 28 | 01010-81035 | BOLT | 85001- | |
| 29 | 01643-31032 | WASHER | 85001- | |
| 30 | 421-62-43261 | BRACKET | 90173- | |
| 30 | \0\421-62-43260 | BRACKET | 85001-90172 | |
| 31 | 01010-81050 | BOLT | 85001- | |
| 32 | 01643-31032 | WASHER | 85001- | |
| 33 | 415-64-13120 | WASHER | 85001- | |
| 34 | 01643-31032 | WASHER | 85001- | |
| 35 | 01597-01009 | NUT | 85001- |
