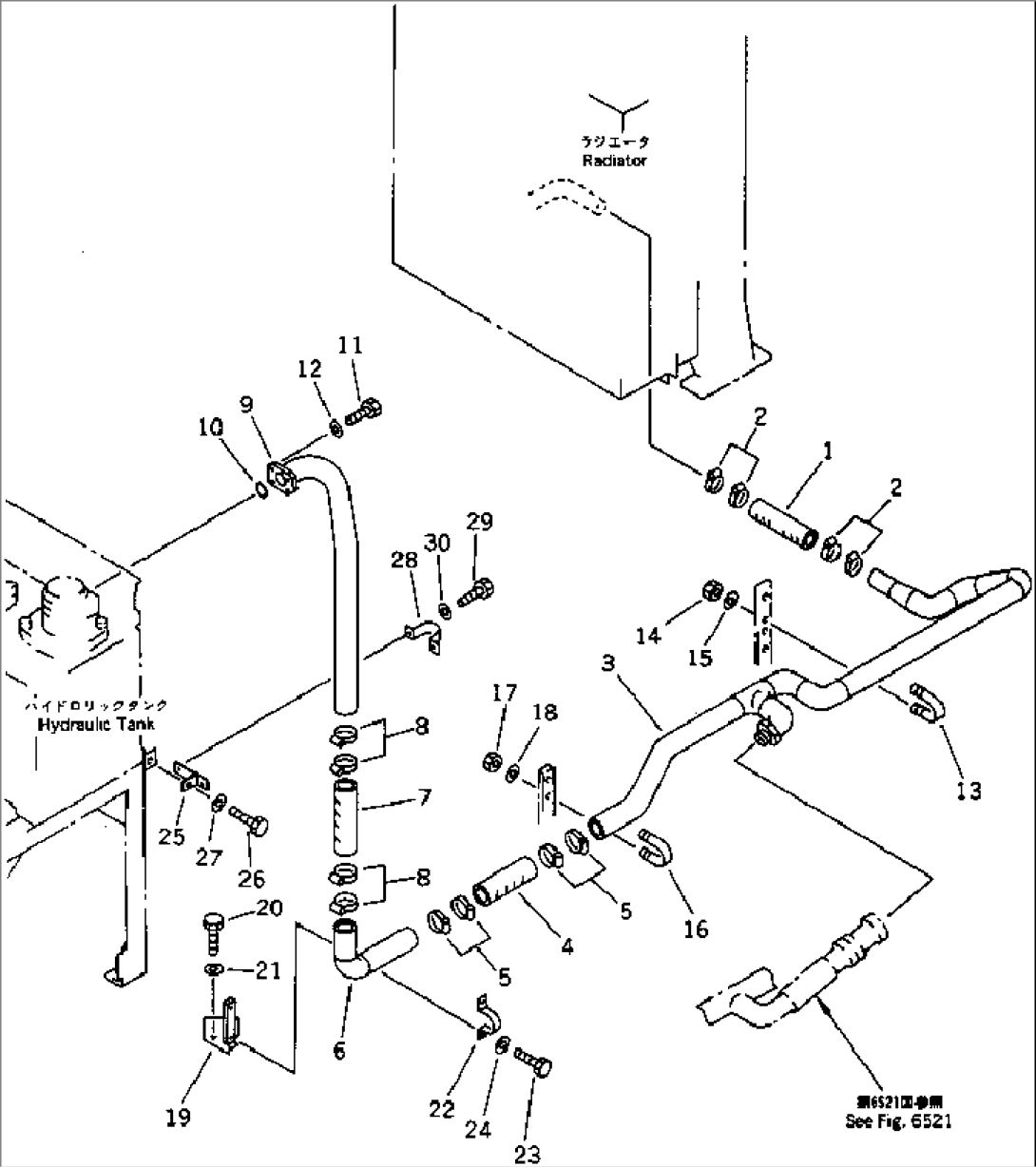

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 07260-24722 | HOSE | 10001- | |
| 2 | 07281-00709 | CLAMP | 10001- | |
| 3 | 262-60-55620 | TUBE | 10001- | |
| 4 | 07260-25820 | HOSE | 10001- | |
| 5 | 07281-00809 | CLAMP | 10001- | |
| 6 | 263-60-35540 | TUBE | 10001- | |
| 7 | 07260-25822 | HOSE | 10001- | |
| 8 | 07281-00809 | CLAMP | 10001- | |
| 9 | 262-60-58310 | TUBE | 10001- | |
| 10 | 07000-12060 | O-RING | 10001- | |
| 11 | 01010-51240 | BOLT | 10001- | |
| 12 | 01641-21223 | WASHER | 10001- | |
| 13 | 07283-26163 | CLIP | 10006- | |
| 14 | 01599-01011 | NUT | 10006- | |
| 15 | 01643-31032 | WASHER | 10006- | |
| 16 | 07283-26163 | CLIP | 10001- | |
| 17 | 01599-01011 | NUT | 10001- | |
| 18 | 01643-31032 | WASHER | 10001- | |
| 19 | 262-60-58810 | BRACKET | 10006- | |
| 20 | 01010-51220 | BOLT | 10006- | |
| 21 | 01643-31232 | WASHER | 10006- | |
| 22 | 07282-06114 | CLAMP | 10006- | |
| 23 | 01010-51220 | BOLT | 10006- | |
| 24 | 01643-31232 | WASHER | 10006- | |
| 25 | 263-60-35550 | BRACKET | 10001- | |
| 26 | 01010-51035 | BOLT | 10001- | |
| 27 | 01643-31032 | WASHER | 10001- | |
| 28 | 07282-06114 | CLAMP | 10001- | |
| 29 | 01010-51220 | BOLT | 10001- | |
| 30 | 01643-31232 | WASHER | 10001- |
