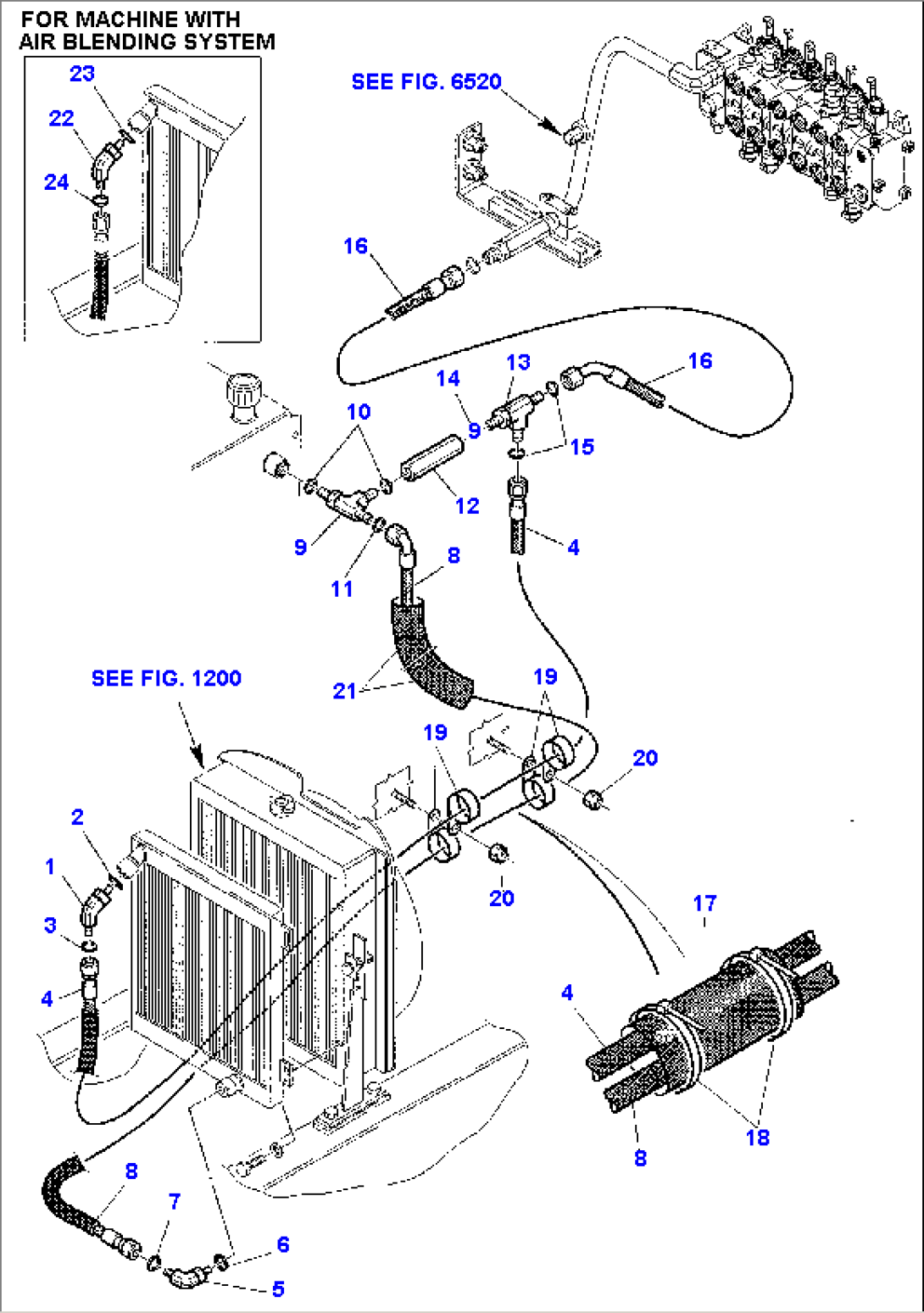

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 500380380 | UNION | 15050001- | |
| 2 | 855051217 | O-RING | 15050001- | |
| 3 | 855051021 | O-RING | 15050001- | |
| 4 | 392400001 | HOSE | 15050001- | |
| 5 | 500380516 | ELBOW | 15050001- | |
| 6 | 855051217 | O-RING | 15050001- | |
| 7 | 855051021 | O-RING | 15050001- | |
| 8 | 392405005 | HOSE | 15050001- | |
| 9 | 312610617 | UNION | 15050001- | |
| 10 | 855051217 | O-RING | 15050001- | |
| 11 | 855051021 | O-RING | 15050001- | |
| 12 | 845190008 | VALVE | 15050001- | |
| 13 | 500380910 | UNION | 15050001- | |
| 14 | 855051217 | O-RING | 15050001- | |
| 15 | 855051021 | O-RING | 15050001- | |
| 16 | 392403002 | HOSE | 15050001- | |
| 17 | 312610621 | PROTECTION | 15050001-15050001 | |
| 17 | 312610629 | PROTECTION | 15050002- | |
| 18 | 885180004 | WRAPPER | 15050001- | |
| 19 | 802660508 | COLLAR | 15050001- | |
| 20 | 801880208 | SELF-LOCKING NUT | 15050001- | |
| 21 | 3F3084605 | PROTECTION | 15050001- | |
| 22 | 312610646 | UNION | 15050001- | |
| 23 | 855051217 | O-RING | 15050001- | |
| 24 | 855051021 | O-RING | 15050001- | |
| SEE FIG. 1200 | ||||
| SEE FIG. 6520 |
