| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 23B-60-74470 | Plug | 1001- | |
| 2 | 07040-12412 | Plug | 1001- | |
| 3 | 07002-12434 | O-ring | 1001- | |
| 4 | 416-54-34230 | Plug | 1001- | |
| 5 | (23H-60-12281) | Bracket | - | |
| 6 | (23H-60-12651) | Bracket | - |
- Главная
- Каталог запчастей
- Автогрейдеры
- Gd535 5 s/n 1001 up
- Hydraulic system
- Hydraulic piping, plug (2/2) (#1001 )
Поиск по каталогу

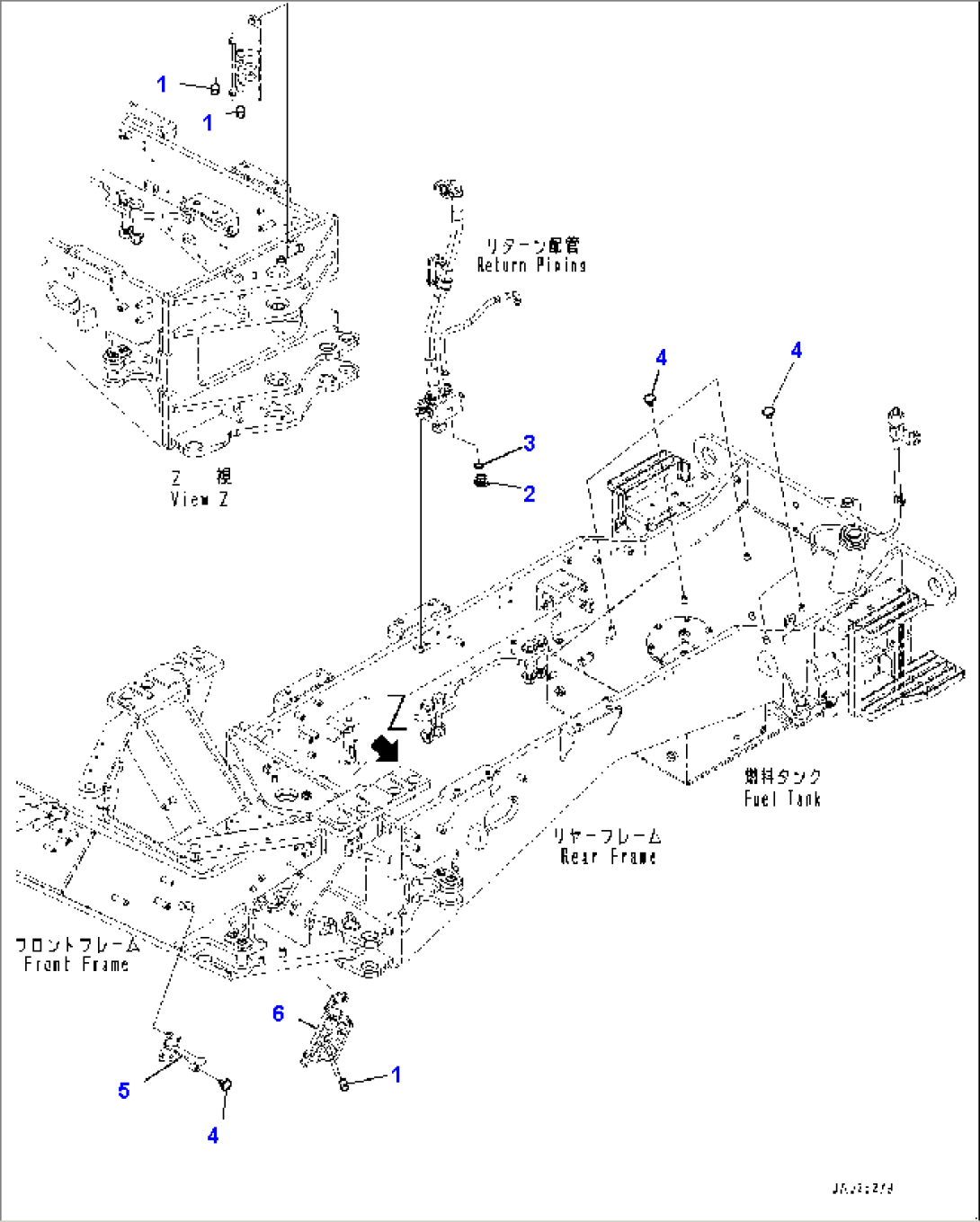

Hydraulic Piping, Plug (2/2) (#1001-)
