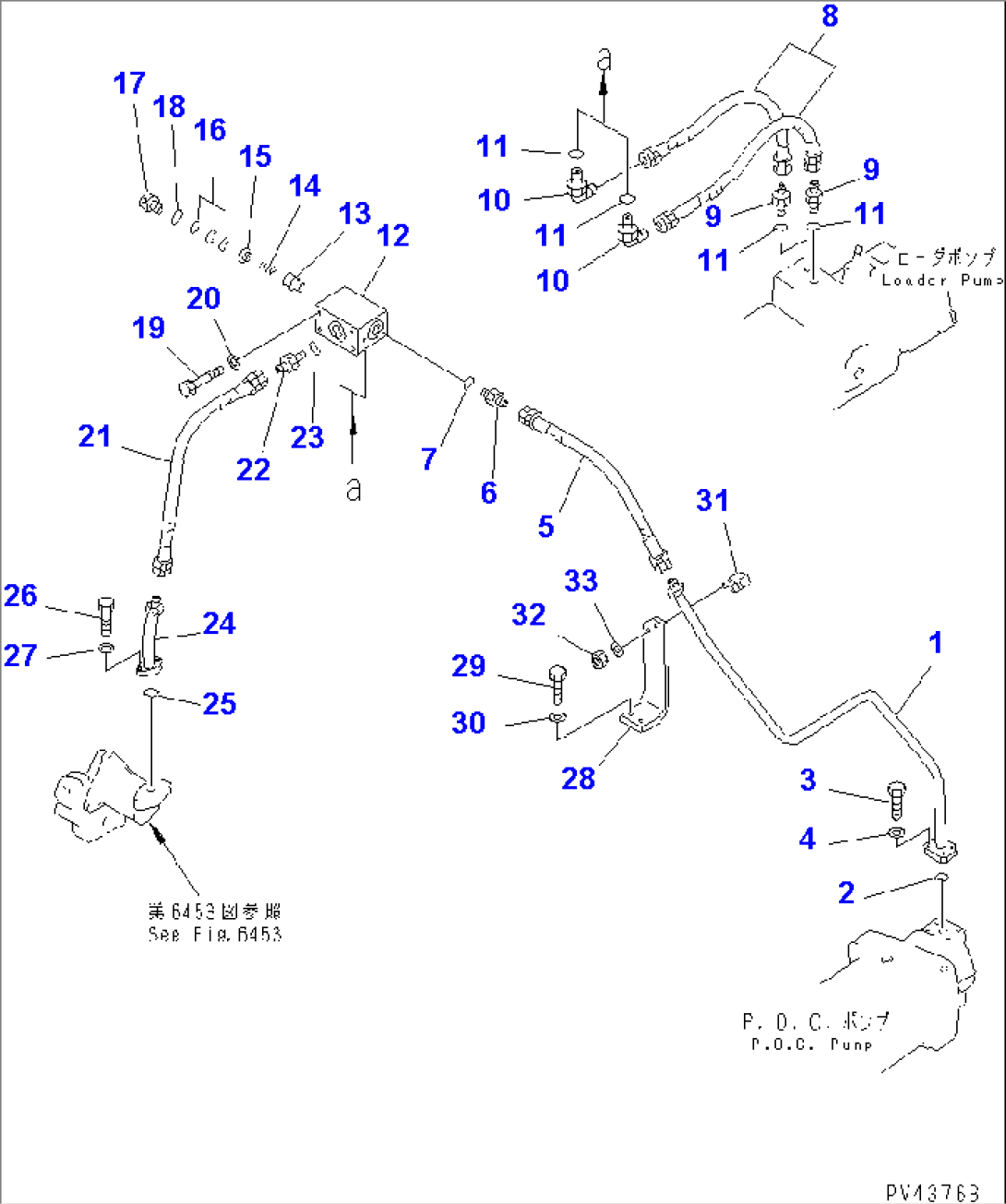

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 427-62-11810 | TUBE | 10027- | |
| 427-62-11371 | TUBE | 10026-10026 | ||
| 427-62-11810 | TUBE | 10025-10025 | ||
| 427-62-11371 | TUBE | 10023-10024 | ||
| 427-62-11810 | TUBE | 10022-10022 | ||
| 427-62-11371 | TUBE | 10014-10021 | ||
| 427-62-11810 | TUBE | 10012-10013 | ||
| 427-62-11371 | TUBE | 10001-10011 | ||
| 2 | 07000-F3030 | O-RING | 10054- | |
| \0\07000-03030 | O-RING | 10001-10053 | ||
| 3 | 01435-00830 | BOLT | 10501- | |
| \0\01010-50835 | BOLT | 10001-10499 | ||
| 4 | 01643-30823 | WASHER | 10001-10499 | |
| 5 | 427-62-15980 | HOSE | 10560- | |
| \0\07102-20605 | HOSE | 10027-10559 | ||
| 07102-20505 | HOSE | 10026-10026 | ||
| 07102-20605 | HOSE | 10025-10025 | ||
| 07102-20505 | HOSE | 10023-10024 | ||
| 07102-20605 | HOSE | 10022-10022 | ||
| 07102-20505 | HOSE | 10014-10021 | ||
| 07102-20605 | HOSE | 10012-10013 | ||
| 07102-20505 | HOSE | 10001-10011 | ||
| 6 | 07236-10628 | ELBOW | 10560- | |
| 07230-10628 | UNION | 10027-10559 | ||
| 07230-10522 | UNION | 10026-10026 | ||
| 07230-10628 | UNION | 10025-10025 | ||
| 07230-10522 | UNION | 10023-10024 | ||
| 07230-10628 | UNION | 10022-10022 | ||
| 07230-10522 | UNION | 10014-10021 | ||
| 07230-10628 | UNION | 10012-10013 | ||
| 07230-10522 | UNION | 10001-10011 | ||
| 7 | 07002-22434 | O-RING | 10027- | |
| \0\07002-02434 | O-RING | 10001-10026 | ||
| 8 | 07102-20205 | HOSE | 10001- | |
| 9 | 07230-20210 | UNION | 10001- | |
| 10 | 07235-10210 | ELBOW | 10001- | |
| 11 | 07002-21423 | O-RING | 10054- | |
| \0\07002-01423 | O-RING | 10001-10053 | ||
| 427-62-11302 | VALVE ASS'Y | 10001- | ||
| (\2\427-62-11301) | VALVE ASS'Y | (10001-10012) | ||
| 12 | \6\ | BODY | 10001- | |
| 13 | \6\ | VALVE | 10001- | |
| (\2\427-62-11671) | VALVE | (10001-10012) | ||
| 14 | \6\ | SPRING | 10001- | |
| 15 | \6\ | SEAT | 10001- | |
| 16 | \6\ | SHIM¤ 0.1MM | 10001- | |
| \6\ | SHIM¤ 0.2MM | 10001- | ||
| \6\ | SHIM¤ 0.5MM | 10001- | ||
| 17 | \6\ | PLUG | 10001- | |
| 18 | 07002-13034 | O-RING | 10054- | |
| \0\07002-03034 | O-RING | 10001-10053 | ||
| 19 | 01011-81010 | BOLT | 10001- | |
| 20 | 01643-31032 | WASHER | 10001- | |
| 21 | 427-62-15990 | HOSE | 10560- | |
| 07102-20604 | HOSE | 10501-10559 | ||
| 07102-20605 | HOSE | 10027-10499 | ||
| 07102-20505 | HOSE | 10026-10026 | ||
| 07102-20605 | HOSE | 10025-10025 | ||
| 07102-20505 | HOSE | 10023-10024 | ||
| 07102-20605 | HOSE | 10022-10022 | ||
| 07102-20505 | HOSE | 10014-10021 | ||
| 07102-20605 | HOSE | 10012-10013 | ||
| 07102-20505 | HOSE | 10001-10011 | ||
| 22 | 07230-20628 | UNION | 10520- | |
| 07236-10628 | ELBOW | 10501-10519 | ||
| 07230-10628 | UNION | 10027-10499 | ||
| 07230-10522 | UNION | 10026-10026 | ||
| 07230-10628 | UNION | 10025-10025 | ||
| 07230-10522 | UNION | 10023-10024 | ||
| 07230-10628 | UNION | 10022-10022 | ||
| 07230-10522 | UNION | 10014-10021 | ||
| 07230-10628 | UNION | 10012-10013 | ||
| 07230-10522 | UNION | 10001-10011 | ||
| 23 | 07002-22434 | O-RING | 10027- | |
| \0\07002-02434 | O-RING | 10001-10026 | ||
| 24 | 427-62-11790 | TUBE | 10027- | |
| 427-62-11131 | TUBE | 10026-10026 | ||
| 427-62-11790 | TUBE | 10025-10025 | ||
| 427-62-11131 | TUBE | 10023-10024 | ||
| 427-62-11790 | TUBE | 10022-10022 | ||
| 427-62-11131 | TUBE | 10014-10021 | ||
| 427-62-11790 | TUBE | 10012-10013 | ||
| 427-62-11131 | TUBE | 10001-10011 | ||
| 25 | 07000-F3025 | O-RING | 10054- | |
| \0\07000-03025 | O-RING | 10001-10053 | ||
| 26 | 01435-01040 | BOLT | 10501- | |
| \0\01010-51040 | BOLT | 10027-10499 | ||
| 01010-51035 | BOLT | 10026-10026 | ||
| 01010-51040 | BOLT | 10025-10025 | ||
| 01010-51035 | BOLT | 10023-10024 | ||
| 01010-51040 | BOLT | 10022-10022 | ||
| 01010-51035 | BOLT | 10014-10021 | ||
| 01010-51040 | BOLT | 10012-10013 | ||
| 01010-51035 | BOLT | 10001-10011 | ||
| 27 | 01643-31032 | WASHER | 10001-10499 | |
| 28 | 427-62-11382 | PLATE | 10027- | |
| \0\427-62-11381 | PLATE | 10026-10026 | ||
| 427-62-11382 | PLATE | 10025-10025 | ||
| \0\427-62-11381 | PLATE | 10023-10024 | ||
| 427-62-11382 | PLATE | 10022-10022 | ||
| \0\427-62-11381 | PLATE | 10014-10021 | ||
| 427-62-11382 | PLATE | 10012-10013 | ||
| \0\427-62-11381 | PLATE | 10001-10011 | ||
| 29 | 01435-01225 | BOLT | 10501- | |
| \0\01010-51230 | BOLT | 10001-10499 | ||
| 30 | 01643-31232 | WASHER | 10001-10499 | |
| 31 | 07283-32738 | CLIP | 10027- | |
| 07283-22236 | CLIP | 10026-10026 | ||
| 07283-32738 | CLIP | 10025-10025 | ||
| 07283-22236 | CLIP | 10023-10024 | ||
| 07283-32738 | CLIP | 10022-10022 | ||
| 07283-22236 | CLIP | 10014-10021 | ||
| 07283-32738 | CLIP | 10012-10013 | ||
| 07283-22236 | CLIP | 10001-10011 | ||
| 32 | 01597-01009 | NUT | 10001- | |
| 33 | 01643-31032 | WASHER | 10001- |
