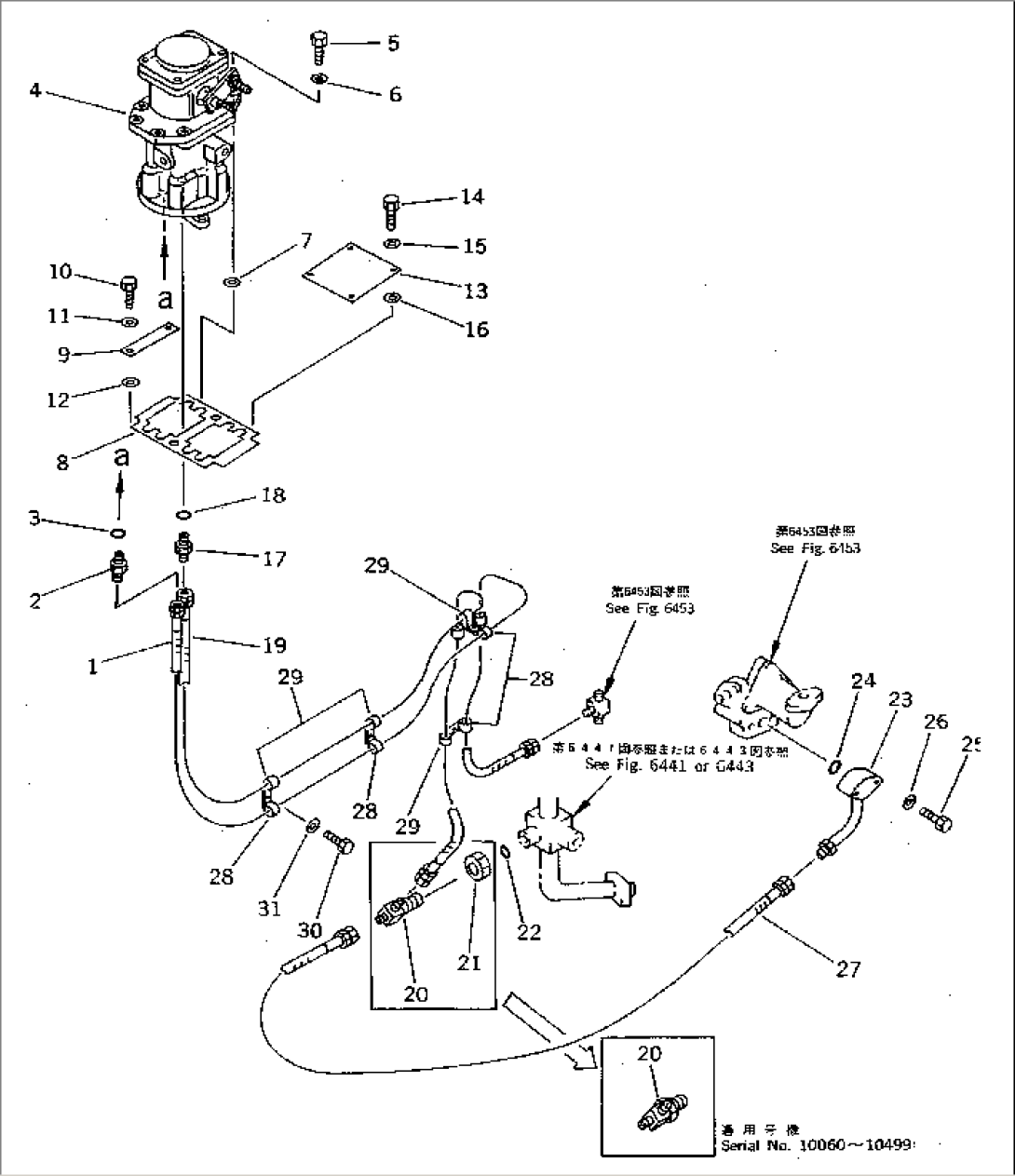

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 07102-20423 | HOSE | 10027-@ | |
| 07102-20323 | HOSE | 10026-10026 | ||
| 07102-20423 | HOSE | 10025-10025 | ||
| 07102-20323 | HOSE | 10023-10024 | ||
| 07102-20423 | HOSE | 10022-10022 | ||
| 07102-20323 | HOSE | 10014-10021 | ||
| 07102-20423 | HOSE | 10012-10013 | ||
| 07102-20323 | HOSE | 10001-10011 | ||
| 2 | 427-62-11750 | NIPPLE | 10027-10499 | |
| 205-62-55270 | NIPPLE | 10026-10026 | ||
| 427-62-11750 | NIPPLE | 10025-10025 | ||
| 205-62-55270 | NIPPLE | 10023-10024 | ||
| 427-62-11750 | NIPPLE | 10022-10022 | ||
| 205-62-55270 | NIPPLE | 10014-10021 | ||
| 427-62-11750 | NIPPLE | 10012-10013 | ||
| 205-62-55270 | NIPPLE | 10001-10011 | ||
| 3 | 07002-31423 | O-RING | .-10499 | |
| \0\07002-01423 | O-RING | 10001-. | ||
| 4 | (702-16-19000) | VALVE ASS'Y,P.O.C. | 10001-10499 | |
| 5 | 01010-80825 | BOLT | 10001-10499 | |
| 6 | 01643-30823 | WASHER | 10001-10499 | |
| 7 | 209-62-11810 | SPACER | 10001-10499 | |
| 8 | 425-62-14280 | SHEET | 10001-10499 | |
| 9 | 421-62-13930 | PLATE | 10001-10499 | |
| 10 | 01010-80825 | BOLT | 10001-10499 | |
| 11 | 01643-30823 | WASHER | 10001-10499 | |
| 12 | 209-62-11810 | SPACER | 10001-10499 | |
| 13 | 425-62-13740 | PLATE | 10001-10499 | |
| 14 | 01010-80830 | BOLT | 10001-10499 | |
| 15 | 01643-30823 | WASHER | 10001-10499 | |
| 16 | 209-62-11810 | SPACER | 10001-10499 | |
| 17 | 07230-10422 | UNION | 10001-10499 | |
| 18 | 07002-22034 | O-RING | .-@ | |
| \0\07002-02034 | O-RING | 10001-. | ||
| 19 | 07102-20422 | HOSE | 10001-10499 | |
| 20 | 427-62-14472 | TEE | 10001-@ | |
| (\2\427-62-14471) | TEE | (10001-10059) | ||
| 21 | 07239-13320 | NUT | 10001-10059 | |
| 22 | 07002-23334 | O-RING | 10001-@ | |
| 23 | 427-62-11152 | TUBE | 10001-@ | |
| 24 | 07000-F3025 | O-RING | .-@ | |
| \0\07000-03025 | O-RING | 10001-. | ||
| 25 | 01010-81055 | BOLT | 10001-10499 | |
| 26 | 01643-31032 | WASHER | 10001-10499 | |
| 27 | 07102-20507 | HOSE | 10001-@ | |
| 28 | 08035-02510 | CLIP | 10027-@ | |
| 08036-01814 | CLIP | 10026-10026 | ||
| 08035-02510 | CLIP | 10025-10025 | ||
| 08036-01814 | CLIP | 10023-10024 | ||
| 08035-02510 | CLIP | 10022-10022 | ||
| 08036-01814 | CLIP | 10014-10021 | ||
| 08035-02510 | CLIP | 10012-10013 | ||
| 08036-01814 | CLIP | 10001-10011 | ||
| 29 | 08035-02510 | CLIP | 10001-@ | |
| 30 | 01010-81020 | BOLT | 10001-@ | |
| 31 | 01643-31032 | WASHER | 10001-@ |
