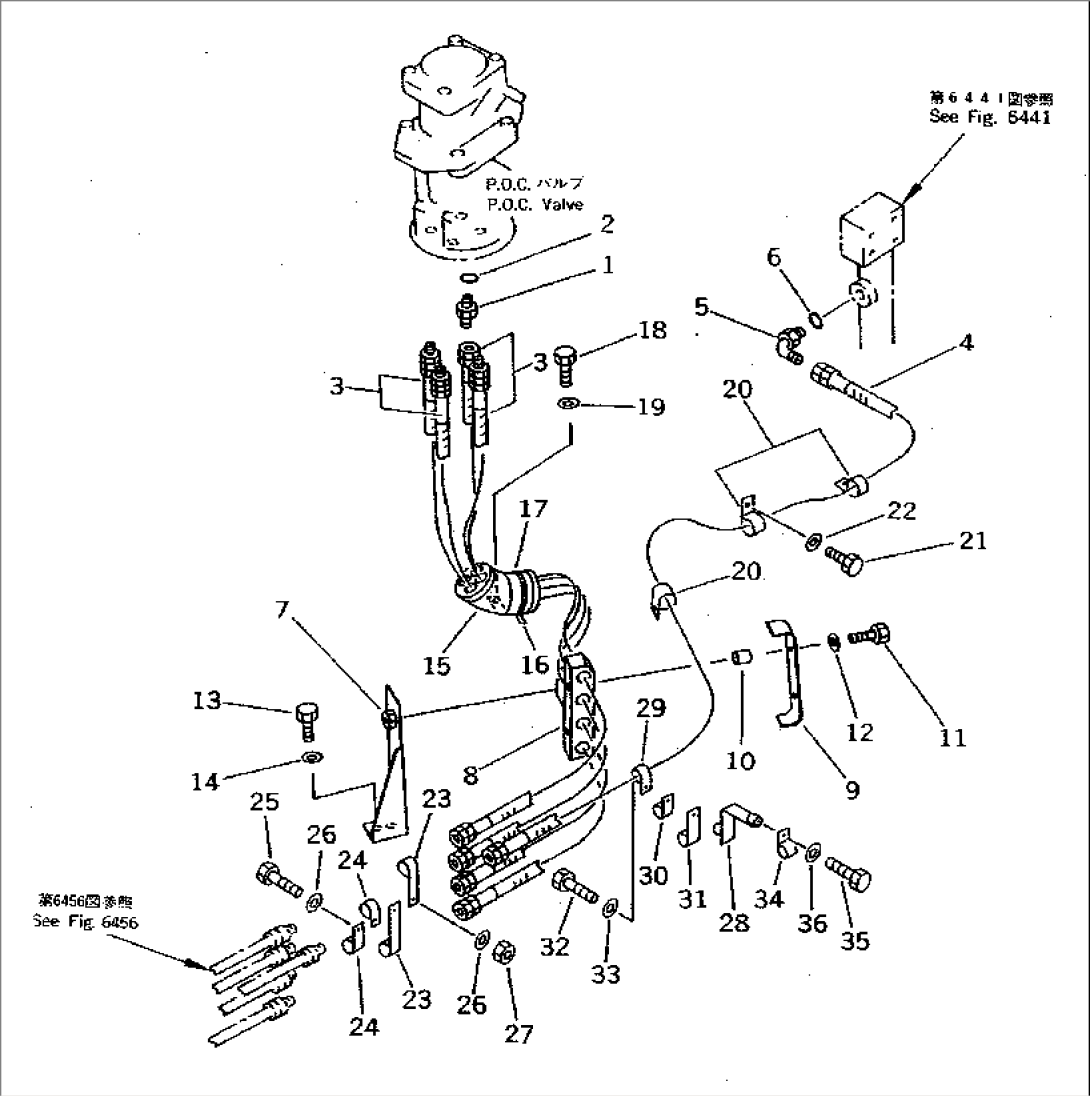

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 205-62-55270 | NIPPLE | 10001-10499 | |
| 2 | 07002-31423 | O-RING | .-10499 | |
| \0\07002-01423 | O-RING | 10001-. | ||
| 3 | 07102-20315 | HOSE | 10001-@ | |
| 4 | 07102-20321 | HOSE | 10001-@ | |
| 5 | 07235-10315 | ELBOW | 10001-@ | |
| 6 | 07002-02034 | O-RING | 10001-10499 | |
| 7 | 427-62-11620 | BRACKET | 10001-@ | |
| 8 | 427-62-11630 | RUBBER | 10001-@ | |
| 9 | 427-62-11640 | PLATE | 10001-@ | |
| 10 | 20T-03-11130 | SPACER | 10001-@ | |
| 11 | 01010-81055 | BOLT | 10001-10499 | |
| 12 | 01643-31032 | WASHER | 10001-10499 | |
| 13 | 01010-81020 | BOLT | 10001-10499 | |
| 14 | 01643-31032 | WASHER | 10001-10499 | |
| 15 | 427-62-11650 | COVER | 10001-@ | |
| 16 | 08034-00823 | BAND | 10001-@ | |
| 17 | 198-911-4480 | CLIP | 10001-@ | |
| 18 | 01010-81016 | BOLT | 10001-@ | |
| 19 | 01643-31032 | WASHER | 10001-@ | |
| 20 | 08036-01814 | CLIP | 10001-@ | |
| 21 | 01010-81016 | BOLT | 10001-@ | |
| 22 | 01643-31032 | WASHER | 10001-@ | |
| 23 | 08035-03008 | CLIP | 10001-@ | |
| 24 | 08036-01814 | CLIP | 10001-@ | |
| 25 | 01010-81025 | BOLT | 10001-10499 | |
| 26 | 01643-31032 | WASHER | 10001-10499 | |
| 27 | 01580-11008 | NUT | 10001-@ | |
| 28 | 427-63-14130 | BRACKET | 10001-@ | |
| 29 | 08036-01814 | CLIP | 10001-@ | |
| 30 | 08036-01414 | CLIP | 10001-@ | |
| 31 | 08035-03008 | CLIP | 10001-@ | |
| 32 | 01010-81025 | BOLT | 10001-@ | |
| 33 | 01643-31032 | WASHER | 10001-@ | |
| 34 | 424-06-12780 | CLIP | 10001-@ | |
| 35 | 01010-81020 | BOLT | 10001-@ | |
| 36 | 01643-31032 | WASHER | 10001-@ |
