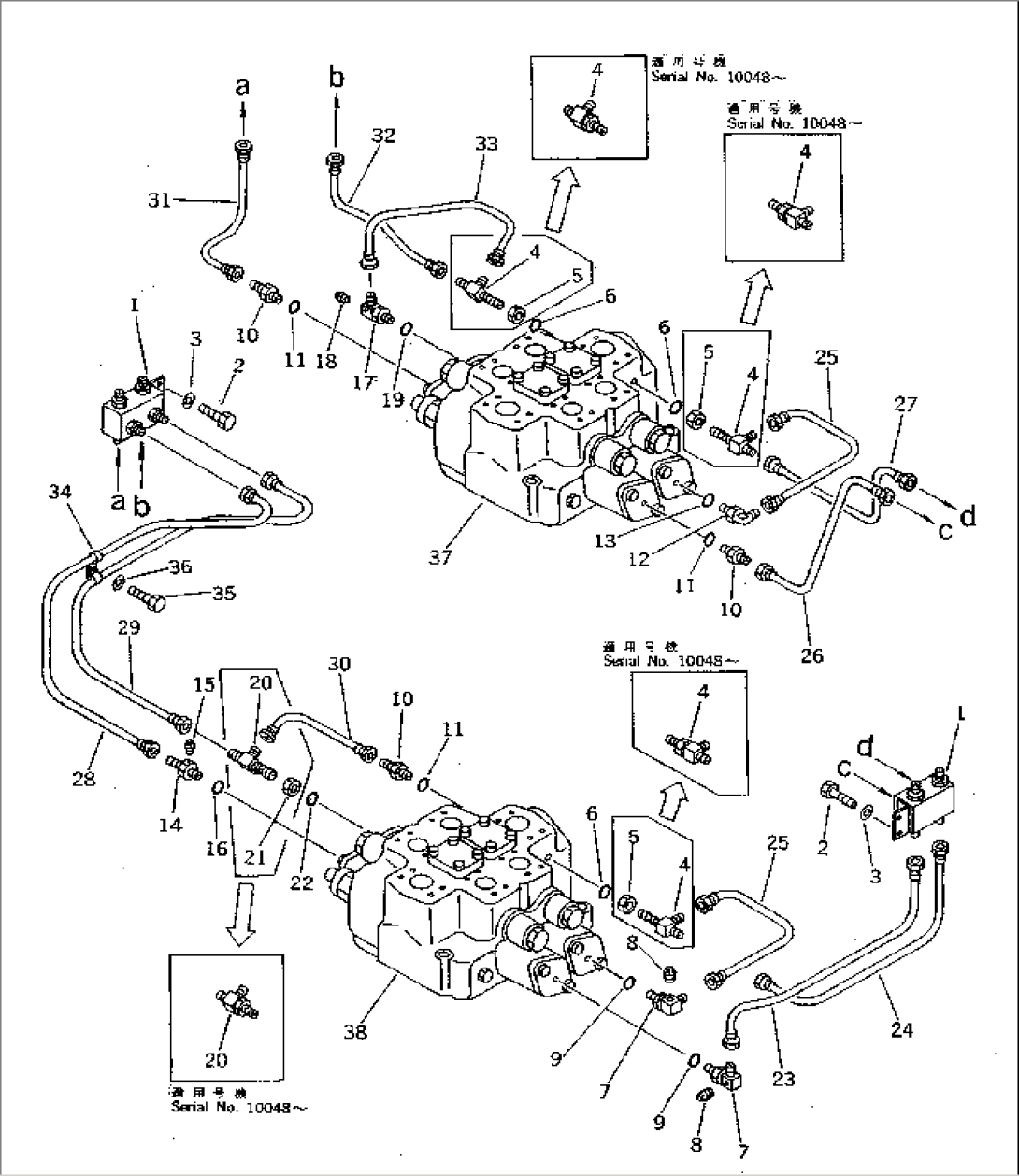

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 427-62-11450 | BLOCK | 10001-10499 | |
| 2 | 01010-81020 | BOLT | 10001-10499 | |
| 3 | 01643-31032 | WASHER | 10001-10499 | |
| 4 | 709-12-12350 | TEE | 10001-10499 | |
| (\2\207-62-16940) | TEE | (10001-10047) | ||
| 5 | 07239-11408 | NUT | 10001-10047 | |
| 6 | 07002-21423 | O-RING | 10054-@ | |
| \0\07002-01423 | O-RING | 10001-10053 | ||
| 7 | 426-62-13131 | ELBOW | 10001-10499 | |
| 8 | 07042-20108 | PLUG | 10001-10499 | |
| 9 | 07002-31423 | O-RING | 10054-10499 | |
| \0\07002-01423 | O-RING | 10001-10053 | ||
| 10 | 07230-10210 | UNION | 10001-10499 | |
| 11 | 07002-31423 | O-RING | 10054-10499 | |
| \0\07002-01423 | O-RING | 10001-10053 | ||
| 12 | 07235-10210 | ELBOW | 10001-10499 | |
| 13 | 07002-31423 | O-RING | 10054-10499 | |
| \0\07002-01423 | O-RING | 10001-10053 | ||
| 14 | 427-62-11570 | UNION | 10001-10499 | |
| 15 | 07042-20108 | PLUG | 10001-@ | |
| 16 | 07002-31423 | O-RING | 10054-10499 | |
| \0\07002-01423 | O-RING | 10001-10053 | ||
| 17 | 427-62-11580 | ELBOW | 10001-10499 | |
| 18 | 07042-20108 | PLUG | 10001-@ | |
| 19 | 07002-31423 | O-RING | 10054-10499 | |
| \0\07002-01423 | O-RING | 10001-10053 | ||
| 20 | 427-62-11820 | TEE | 10001-10499 | |
| (\2\427-62-11590) | TEE | (10001-10047) | ||
| 21 | 07239-11408 | NUT | 10001-10047 | |
| 22 | 07002-31423 | O-RING | 10054-10499 | |
| \0\07002-01423 | O-RING | 10001-10053 | ||
| 23 | 427-62-11551 | TUBE | 10001-10499 | |
| 24 | 427-62-11530 | TUBE | 10001-10499 | |
| 25 | 427-62-11310 | TUBE | 10001-10499 | |
| 26 | 427-62-11540 | TUBE | 10001-10499 | |
| 27 | 427-62-11520 | TUBE | 10001-10499 | |
| 28 | 427-62-11510 | TUBE | 10001-10499 | |
| 29 | 427-62-11850 | TUBE | 10066- | |
| 427-62-11480 | TUBE | 10001-10065 | ||
| 30 | 427-62-11860 | TUBE | 10066- | |
| 427-62-11260 | TUBE | 10001-10065 | ||
| 31 | 427-62-11490 | TUBE | 10001-10499 | |
| 32 | 427-62-11460 | TUBE | 10001-10499 | |
| 33 | 427-62-16240 | TUBE | 10066- | |
| 427-62-11470 | TUBE | 10001-10065 | ||
| 34 | 424-04-11120 | CLIP | 10001-10499 | |
| 35 | 01010-81020 | BOLT | 10001-10499 | |
| 36 | 01643-31032 | WASHER | 10001-10499 | |
| 37 | (709-12-11405) | VALVE ASS'Y | 10066-10499 | |
| (\4\709-12-11404) | VALVE ASS'Y | 10001-10065 | ||
| (709-12-11405{427-62-16240)} | ||||
| 38 | (709-12-11405) | VALVE ASS'Y | 10066-10499 | |
| (\4\709-12-11404) | VALVE ASS'Y | 10001-10065 | ||
| (709-12-11405{427-62-11850¤} | ||||
| 427-62-11860) |
