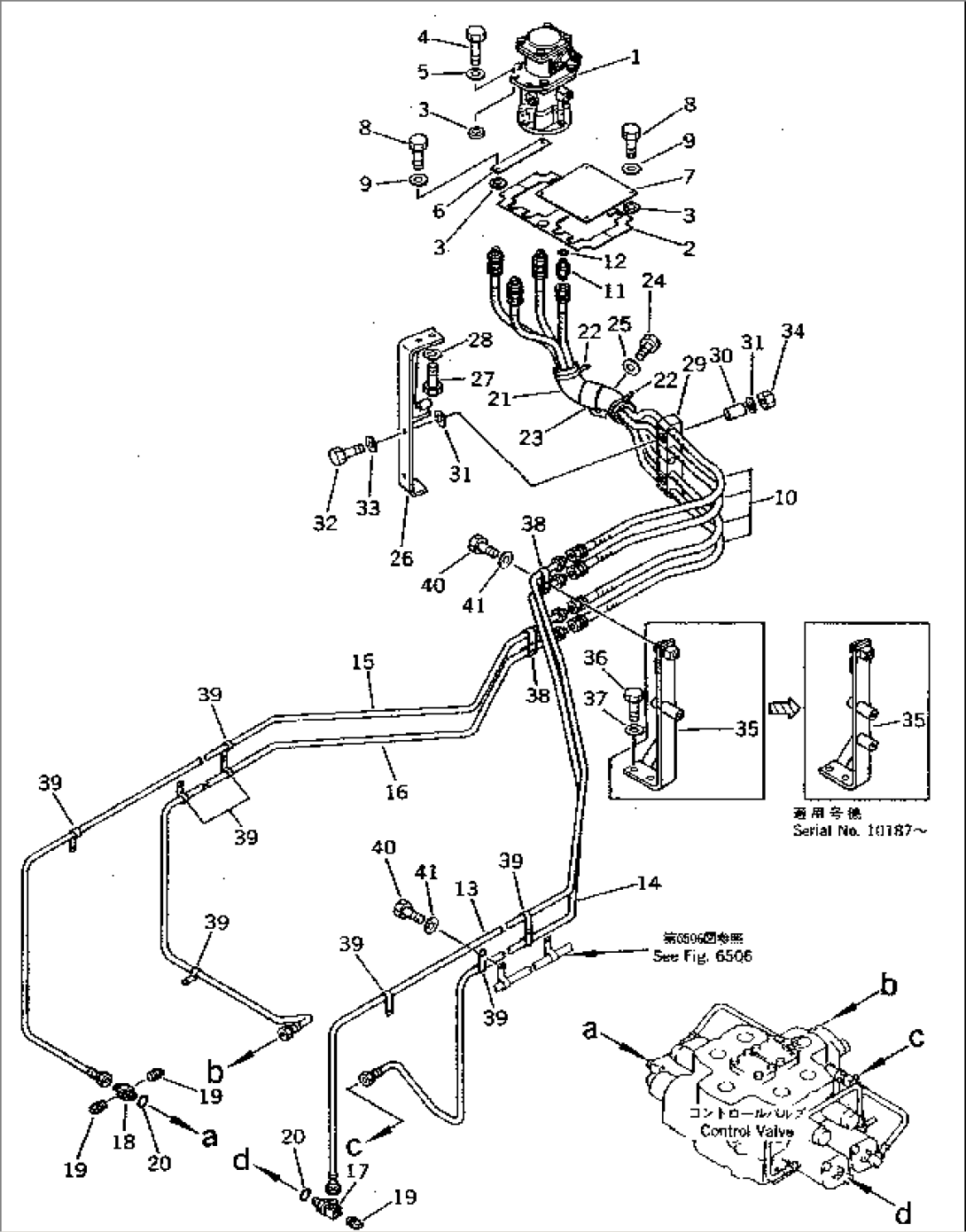

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | (702-16-18000) | VALVE ASS'Y,P.O.C. | 10187-10864 | |
| (702-16-17001) | VALVE ASS'Y,P.O.C. | 10001-10186 | ||
| 2 | 425-62-14280 | SHEET | 10001-10864 | |
| 3 | 209-62-11810 | SPACER | 10001-10864 | |
| 4 | 01010-50830 | BOLT | 10001-10864 | |
| 5 | 01643-30823 | WASHER | 10001-10864 | |
| 6 | 421-62-13930 | PLATE | 10001-10864 | |
| 7 | 425-62-13740 | PLATE,(WITHOUT FRONT ATTACHMENT) | 10001-10864 | |
| 8 | 01010-50825 | BOLT | 10001-10864 | |
| 9 | 01643-30823 | WASHER | 10001-10864 | |
| 10 | 07102-20211 | HOSE | 10001-10864 | |
| 11 | 07230-10210 | UNION | 10001-10864 | |
| 12 | 07002-11423 | O-RING | 10001-@ | |
| 13 | 426-62-11670 | TUBE | 10001-10864 | |
| 14 | 426-62-11680 | TUBE | 10001-10864 | |
| 15 | 426-62-11650 | TUBE | 10001-10864 | |
| 16 | 426-62-11660 | TUBE | 10001-10864 | |
| 17 | 426-62-13131 | ELBOW | 10079-10864 | |
| \0\426-62-13130 | ELBOW | 10001-10078 | ||
| 18 | 426-62-13110 | UNION | 10001-10864 | |
| 19 | 07042-20108 | PLUG | 10001-@ | |
| 20 | 07002-11423 | O-RING | 10001-10864 | |
| 21 | 205-62-53780 | COVER | 10001-10864 | |
| 22 | 08034-00519 | BAND | 10001-@ | |
| 23 | 566-16-11560 | CLIP | 10001-10864 | |
| 24 | 01010-81020 | BOLT | 10001-@ | |
| 25 | 01643-31032 | WASHER | 10001-@ | |
| 26 | 426-62-11611 | BRACKET | 10001-10864 | |
| 27 | 01010-81020 | BOLT | 10001-@ | |
| 28 | 01643-31032 | WASHER | 10001-@ | |
| 29 | 421-62-14341 | RUBBER | 10001-10864 | |
| 30 | 421-62-14490 | SPACER | 10001-10864 | |
| 31 | 421-62-14740 | WASHER | 10001-10864 | |
| 32 | 01010-51045 | BOLT | 10001-10864 | |
| 33 | 01643-31032 | WASHER | 10001-@ | |
| 34 | 01580-11008 | NUT | 10001-10864 | |
| 35 | 426-62-11642 | BRACKET | 10187-10864 | |
| \0\426-62-11641 | BRACKET | 10001-10186 | ||
| 36 | 01010-81225 | BOLT | 10001-@ | |
| 37 | 01643-31232 | WASHER | 10001-@ | |
| 38 | 176-43-54580 | CLIP | 10001-@ | |
| 39 | 424-04-11120 | CLIP | 10001-10864 | |
| 40 | 01010-81020 | BOLT | 10001-@ | |
| 41 | 01643-31032 | WASHER | 10001-@ |
