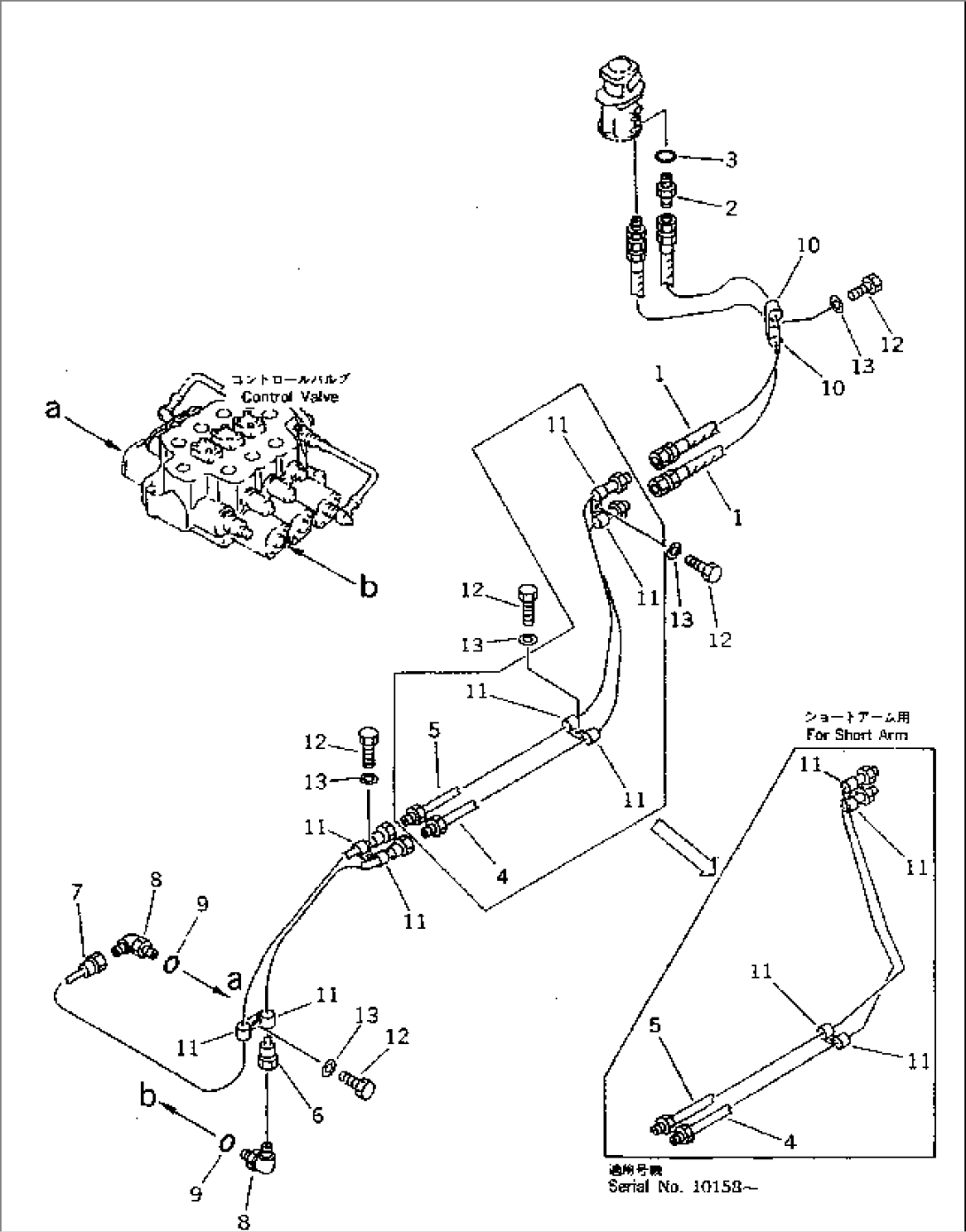

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 07102-20211 | HOSE | 10001-10880 | |
| 2 | 07230-10210 | UNION | 10001-10880 | |
| 3 | 07002-01423 | O-RING | 10001-10880 | |
| 4 | 426-877-1311 | TUBE | 10158-10880 | |
| 4 | 426-877-1310 | TUBE | 10001-10157 | |
| 4 | 426-877-1311 | TUBE,(FOR SHORT ARM) | 10001-10880 | |
| 5 | 426-877-1331 | TUBE | 10158-10880 | |
| 5 | 426-877-1330 | TUBE | 10001-10157 | |
| 5 | 426-877-1331 | TUBE,(FOR SHORT ARM) | 10001-10880 | |
| 6 | 426-877-1320 | TUBE | 10001-10880 | |
| 7 | 426-877-1340 | TUBE | 10001-10880 | |
| 8 | 07235-10210 | ELBOW | 10001-10880 | |
| 9 | 07002-01423 | O-RING | 10001-10880 | |
| 10 | 08036-01414 | CLIP | 10001-10880 | |
| 11 | 424-04-11120 | CLIP | 10001-10880 | |
| 12 | 01010-51025 | BOLT | 10001-10880 | |
| 13 | 01643-31032 | WASHER | 10001-10880 |
