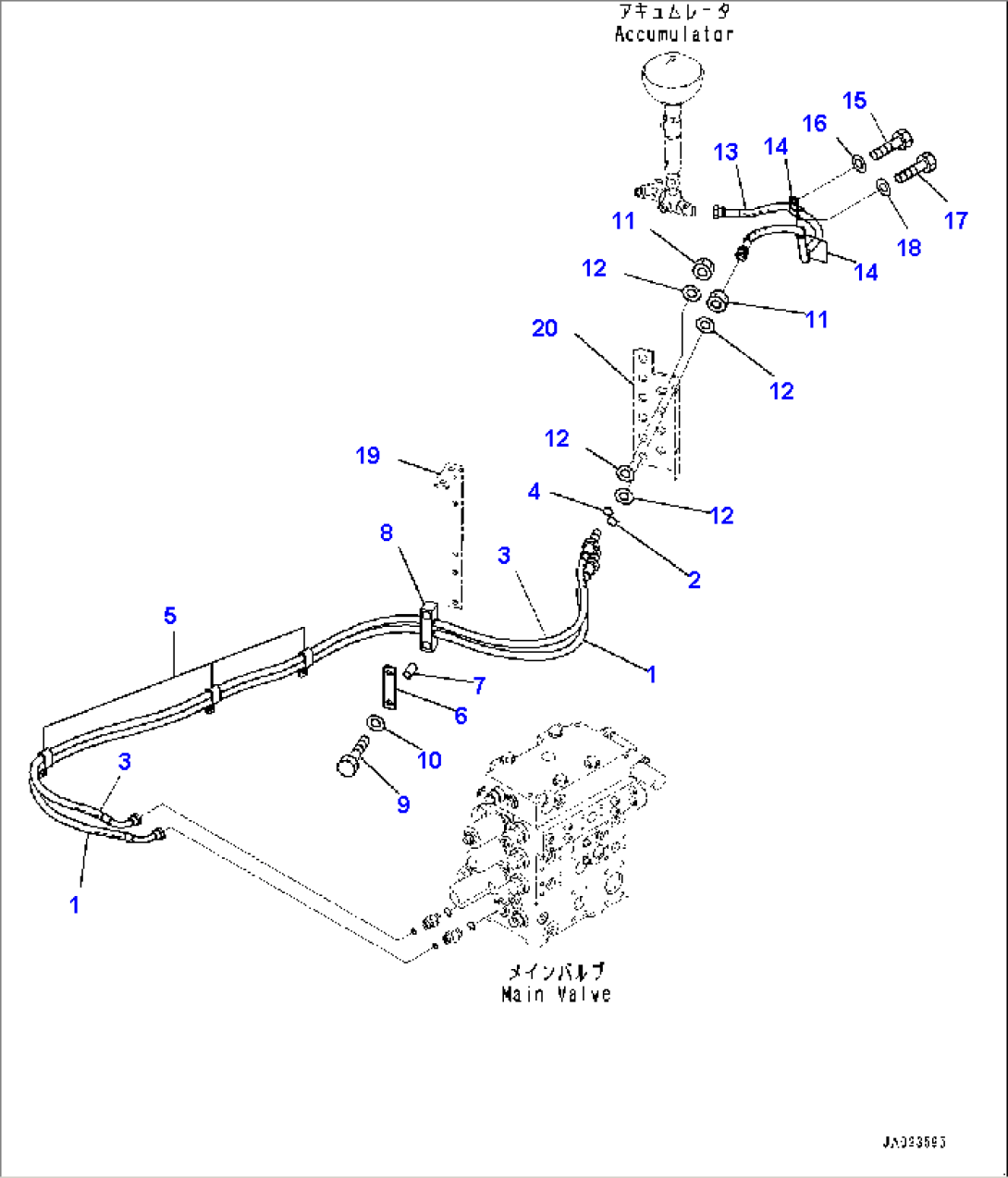

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 421-62-43851 | Hose | 90216- | |
| 2 | 02896-11009 | O-ring | 90216- | |
| 3 | 421-62-43861 | Hose, Black | 90216- | |
| 3 | 21U-62-34720 | Band, Black | 90216- | |
| 4 | 02896-11009 | O-ring | 90216- | |
| 5 | 04435-51610 | Clip | 90216- | |
| 6 | 423-62-41550 | Plate | 90216- | |
| 7 | 419-43-17910 | Spacer | 90216- | |
| 8 | 423-62-41330 | Rubber | 90216- | |
| 9 | 01010-81060 | Bolt | 90216- | |
| 10 | 01643-31032 | Washer | 90216- | |
| 11 | 426-62-35620 | Nut | 90216- | |
| 12 | 01643-31845 | Washer | 90216- | |
| 13 | 421-62-45711 | Hose | 90216- | |
| 14 | 04434-51510 | Clip | 90216- | |
| 15 | 01010-81025 | Bolt | 90216- | |
| 16 | 01643-31032 | Washer | 90216- | |
| 17 | 01010-81020 | Bolt | 90216- | |
| 18 | 01643-31032 | Washer | 90216- | |
| 19 | (421-62-44260) | Bracket | - | |
| 20 | (421-62-46510) | Plate | - |
