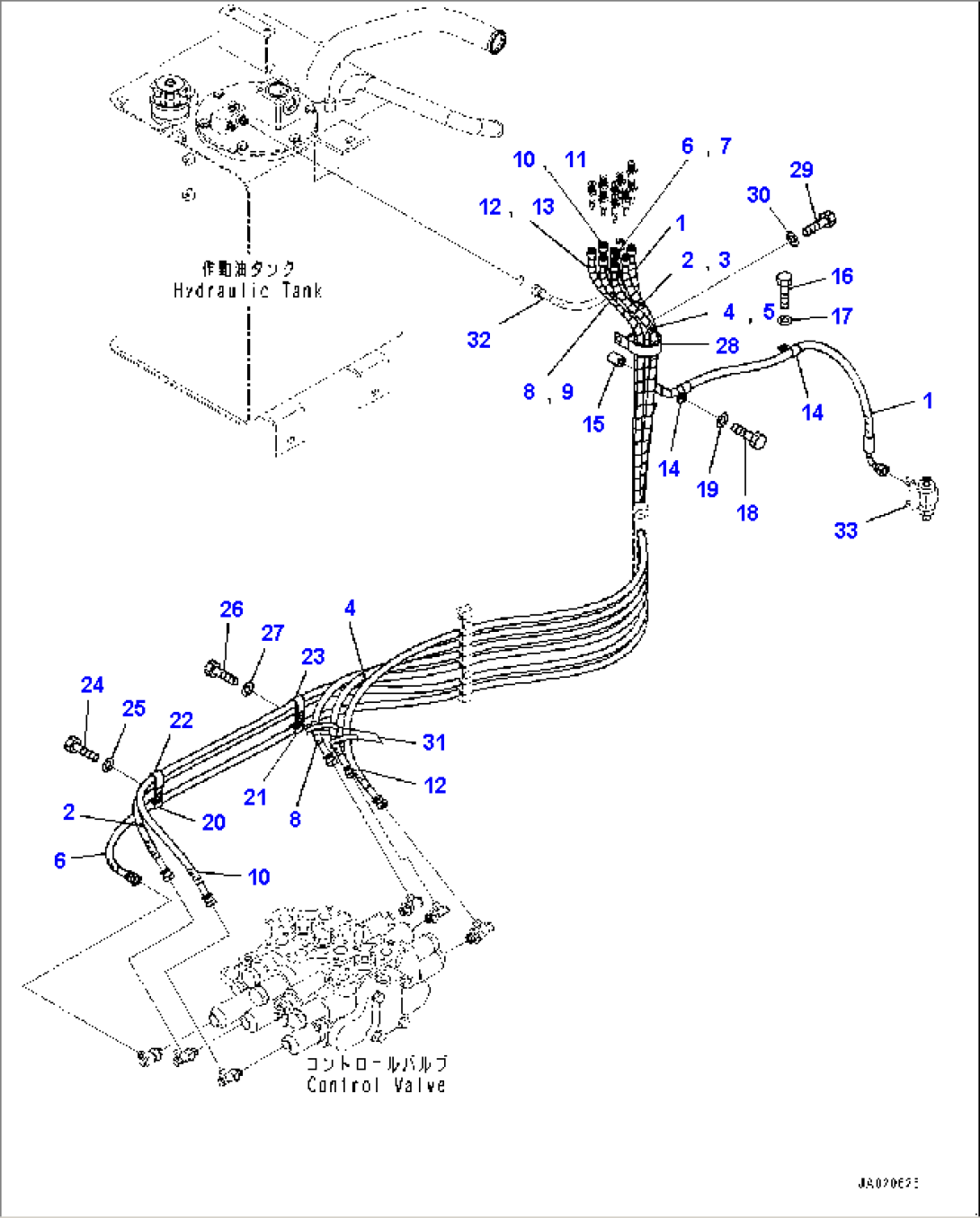

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 419-62-43420 | Hose | 72402- | |
| 1 | 21U-62-34760 | Band, Red | 72402- | |
| 1 | 21U-62-34750 | Band, Blue | 72402- | |
| 2 | 419-62-33442 | Hose | 72402- | |
| 3 | 08210-01206 | Tube, Spiral | 72402- | |
| 3 | 21U-62-34760 | Band, Red | 72402- | |
| 4 | 419-62-33452 | Hose | 72402- | |
| 5 | 08210-01206 | Tube, Spiral | 72402- | |
| 5 | 21U-62-34750 | Band, Blue | 72402- | |
| 6 | 419-62-33462 | Hose | 72402- | |
| 7 | 08210-01206 | Tube, Spiral | 72402- | |
| 7 | 21U-62-34710 | Band, Yellow | 72402- | |
| 8 | 419-62-33472 | Hose | 72402- | |
| 9 | 08210-01206 | Tube, Spiral | 72402- | |
| 9 | 21U-62-34740 | Band, Orange | 72402- | |
| 10 | 419-877-3153 | Hose | 72402- | |
| 11 | 08210-01206 | Tube, Spiral | 72402- | |
| 11 | 21U-62-34770 | Band, White | 72402- | |
| 11 | 21U-62-34760 | Band, Red | 72402- | |
| 12 | 419-877-3164 | Hose | 72402- | |
| 13 | 08210-01206 | Tube, Spiral | 72402- | |
| 13 | 21U-62-34730 | Band, Green | 72402- | |
| 14 | 04434-51512 | Clip | 72402- | |
| 15 | 423-43-47350 | Spacer | 72402- | |
| 16 | 01010-81025 | Bolt | 72402- | |
| 17 | 01643-31032 | Washer | 72402- | |
| 18 | 01010-81055 | Bolt | 72402- | |
| 19 | 01643-31032 | Washer | 72402- | |
| 20 | 04434-51510 | Clip | 72402- | |
| 21 | 04434-51510 | Clip | 72402- | |
| 22 | 04435-51510 | Clip | 72402- | |
| 23 | 04435-51510 | Clip | 72402- | |
| 24 | 01010-81025 | Bolt | 72402- | |
| 25 | 01643-31032 | Washer | 72402- | |
| 26 | 01010-81025 | Bolt | 72402- | |
| 27 | 01643-31032 | Washer | 72402- | |
| 28 | 21K-03-11190 | Clip | 72402- | |
| 29 | 01010-81025 | Bolt | 72402- | |
| 30 | 01643-31032 | Washer | 72402- | |
| 31 | 08034-40521 | Band | 72402- | |
| 32 | (419-62-48630) | Hose | - | |
| 33 | (418-62-34232) | Tee | - |
