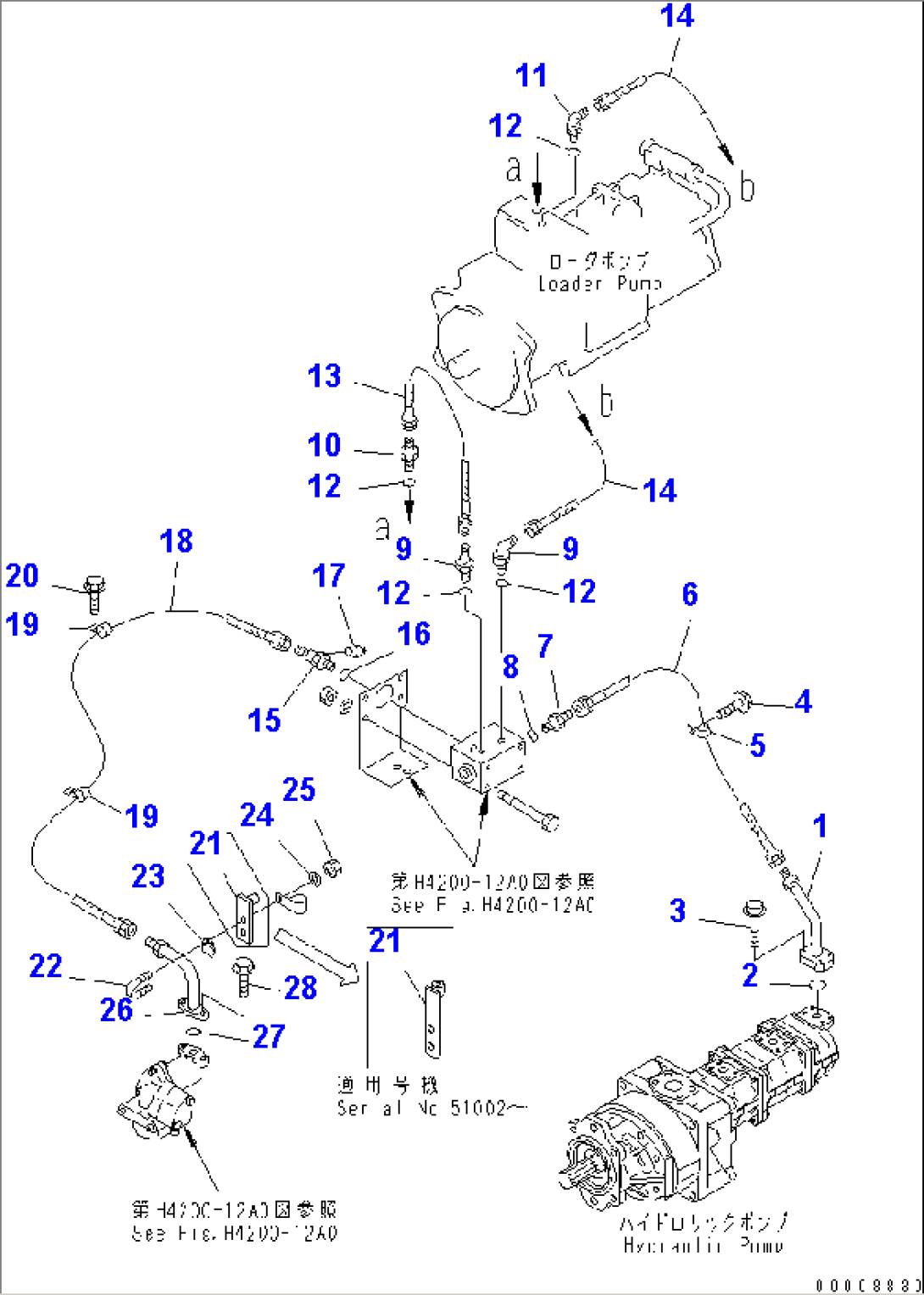

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 428-62-13111 | TUBE | 51001- | |
| 2 | 07000-F3030 | O-RING | 51001- | |
| 3 | 01435-00835 | BOLT | 51001- | |
| 4 | 01435-01016 | BOLT | 51001- | |
| 5 | 08036-02514 | CLIP | 51001- | |
| 6 | 07102-20508 | HOSE | 51001- | |
| 7 | 07230-20522 | UNION | 51001- | |
| 8 | 07002-22434 | O-RING | 51001- | |
| 9 | 07235-10210 | ELBOW | 51001- | |
| 10 | 07230-20210 | UNION | 51001- | |
| 11 | 07236-10210 | ELBOW | 51001- | |
| 12 | 07002-21423 | O-RING | 51001- | |
| 13 | 07102-20205 | HOSE | 51001- | |
| 14 | 07102-20204 | HOSE | 51001- | |
| 15 | 07236-50522 | ELBOW | 51001- | |
| 16 | 07002-22434 | O-RING | 51001- | |
| 17 | 07042-20108 | PLUG | 51001- | |
| 18 | 07102-20507 | HOSE | 51001- | |
| 19 | 08036-02514 | CLIP | 51001- | |
| 20 | 01435-01016 | BOLT | 51001- | |
| 21 | 428-62-21171 | BRACKET | 51002- | |
| 428-62-21170 | BRACKET | 51001-51001 | ||
| 22 | 07283-33450 | CLIP | 51002- | |
| 07283-32244 | CLIP | 51001-51001 | ||
| 23 | 07283-53444 | SEAT | 51002- | |
| 07283-52232 | SEAT | 51001-51001 | ||
| 24 | 01643-31032 | WASHER | 51001- | |
| 25 | 01597-01009 | NUT | 51001- | |
| 26 | 428-62-23230 | TUBE | 51001- | |
| 27 | 07000-F3025 | O-RING | 51001- | |
| 28 | 01435-01030 | BOLT | 51001- |
