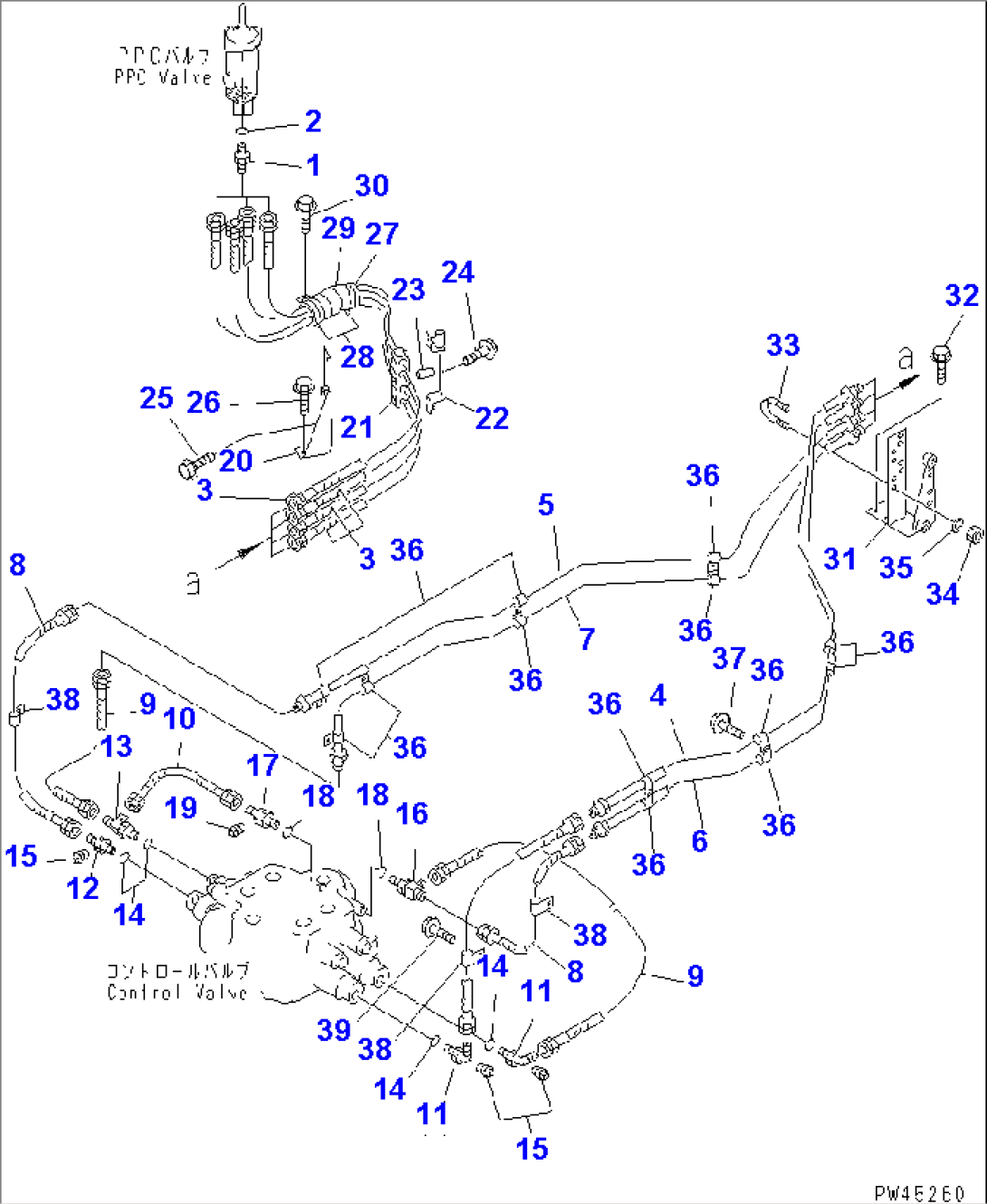

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 07230-20315 | UNION | 10001- | |
| 2 | 07002-32034 | O-RING | 10001- | |
| 3 | 07102-20315 | HOSE | 10001- | |
| 4 | 428-62-13172 | TUBE | 10001- | |
| 5 | 428-62-13152 | TUBE | 10001- | |
| 6 | 428-62-14161 | TUBE | 10001- | |
| 7 | 428-62-13162 | TUBE | 10001- | |
| 8 | 07102-20307 | HOSE | 10001- | |
| 9 | 07102-20304 | HOSE | 10001- | |
| 10 | 07102-20203 | HOSE | 10001- | |
| 11 | 07235-50315 | ELBOW | 10001- | |
| 12 | 427-62-11840 | UNION | 10001- | |
| 13 | 427-62-11830 | TEE | 10001- | |
| 14 | 07002-22034 | O-RING | 10001- | |
| 15 | 07042-20108 | PLUG | 10001- | |
| 16 | 709-12-12740 | TEE | 10001- | |
| 17 | 428-62-14660 | UNION | 10001- | |
| 18 | 07002-21423 | O-RING | 10001- | |
| 19 | 07042-20108 | PLUG | 10001- | |
| 20 | 428-62-14180 | BRACKET | 10001- | |
| 21 | 428-62-14190 | RUBBER | 10001- | |
| 22 | 428-62-14210 | PLATE | 10001- | |
| 23 | 20T-03-11130 | SPACER | 10001- | |
| 24 | 01435-01060 | BOLT | 10001- | |
| 25 | 01435-01020 | BOLT | 10001- | |
| 26 | 01435-01220 | BOLT | 10001- | |
| 27 | 427-62-11650 | COVER | 10001- | |
| 28 | 08034-20536 | BAND | .- | |
| 08034-00823 | BAND | 10001-. | ||
| 29 | 198-911-4480 | CLIP | 10001- | |
| 30 | 01435-01016 | BOLT | 10001- | |
| 31 | 428-62-14171 | BRACKET | 10001- | |
| 32 | 01435-01230 | BOLT | 10001- | |
| 33 | 07283-31529 | CLIP | 10001- | |
| 34 | 01596-00807 | NUT | 10001- | |
| 35 | 01643-30823 | WASHER | 10001- | |
| 36 | 04434-51510 | CLIP | 10001- | |
| 37 | 01435-01016 | BOLT | 10001- | |
| 38 | 04434-52212 | CLIP | 10001- | |
| 39 | 01435-01016 | BOLT | 10001- |
