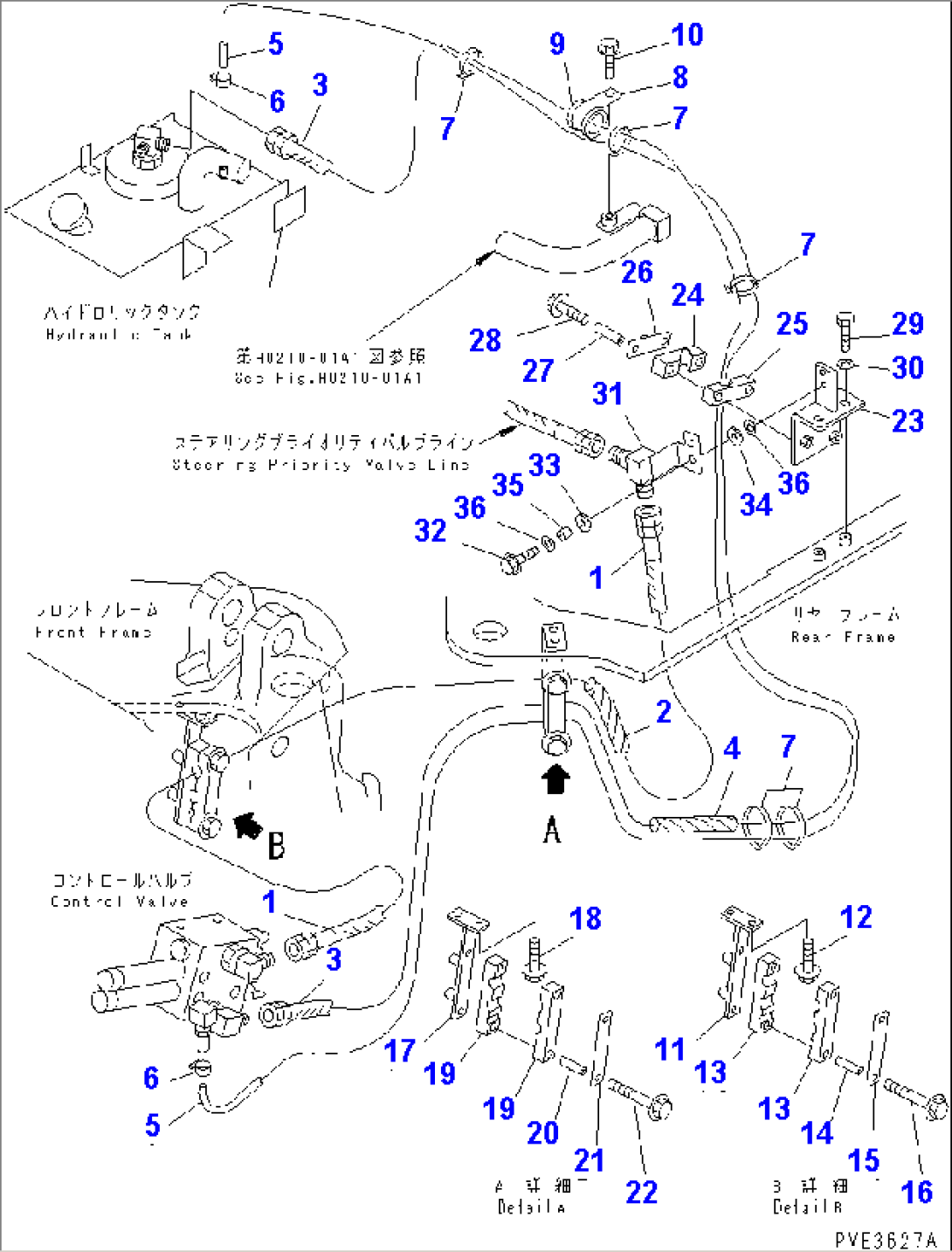

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 417-62-23310 | HOSE | 53001-@ | |
| 2 | 419-U45-1220 | PROTECTOR | 53001-@ | |
| 3 | 417-62-23320 | HOSE | 53001-@ | |
| 4 | 419-U45-1220 | PROTECTOR | 53001-@ | |
| 5 | 417-62-23610 | HOSE,DRAIN | 53001-@ | |
| 6 | 07281-00197 | CLAMP | 53001-@ | |
| 7 | 08034-20834 | BAND | 53001-@ | |
| 8 | 419-09-11150 | CLIP | 53001-@ | |
| 9 | 419-62-13470 | RUBBER | 53001-@ | |
| 10 | 01435-01016 | BOLT | 53001-@ | |
| 11 | 417-62-23220 | BRACKET | 53001-53097 | |
| 12 | 01435-01220 | BOLT | 53001-@ | |
| 13 | 417-62-23230 | CLAMP | 53001-53097 | |
| 14 | 417-62-23391 | SPACER | 53001-@ | |
| 15 | 417-62-23340 | PLATE | 53001-53097 | |
| 16 | 01435-01290 | BOLT | 53001-@ | |
| 17 | 417-62-23330 | BRACKET | 53001-53097 | |
| 18 | 01435-01220 | BOLT | 53001-@ | |
| 19 | 417-62-23230 | CLAMP | 53001-53097 | |
| 20 | 417-62-23391 | SPACER | 53001-@ | |
| 21 | 417-62-23340 | PLATE | 53001-53097 | |
| 22 | 01435-01290 | BOLT | 53001-@ | |
| 23 | 417-62-23620 | BRACKET | 53001-@ | |
| 24 | 417-62-23460 | CLAMP | 53001-@ | |
| 25 | 417-62-23470 | CLAMP | 53001-@ | |
| 26 | 417-62-23510 | PLATE | 53001-@ | |
| 27 | 417-62-23391 | SPACER | 53001-@ | |
| 28 | 01435-01290 | BOLT | 53001-@ | |
| 29 | 01010-81020 | BOLT | 53001-@ | |
| 30 | 01643-31032 | WASHER | 53001-@ | |
| 31 | 417-62-23630 | ELBOW | 53001-@ | |
| 32 | 01435-01250 | BOLT | 53001-@ | |
| 33 | 419-43-17930 | CUSHION | 53001-@ | |
| 34 | 417-62-13620 | CUSHION | 53001-@ | |
| 35 | 417-62-14130 | SPACER | 53001-@ | |
| 36 | 419-43-17920 | WASHER | 53001-@ |
