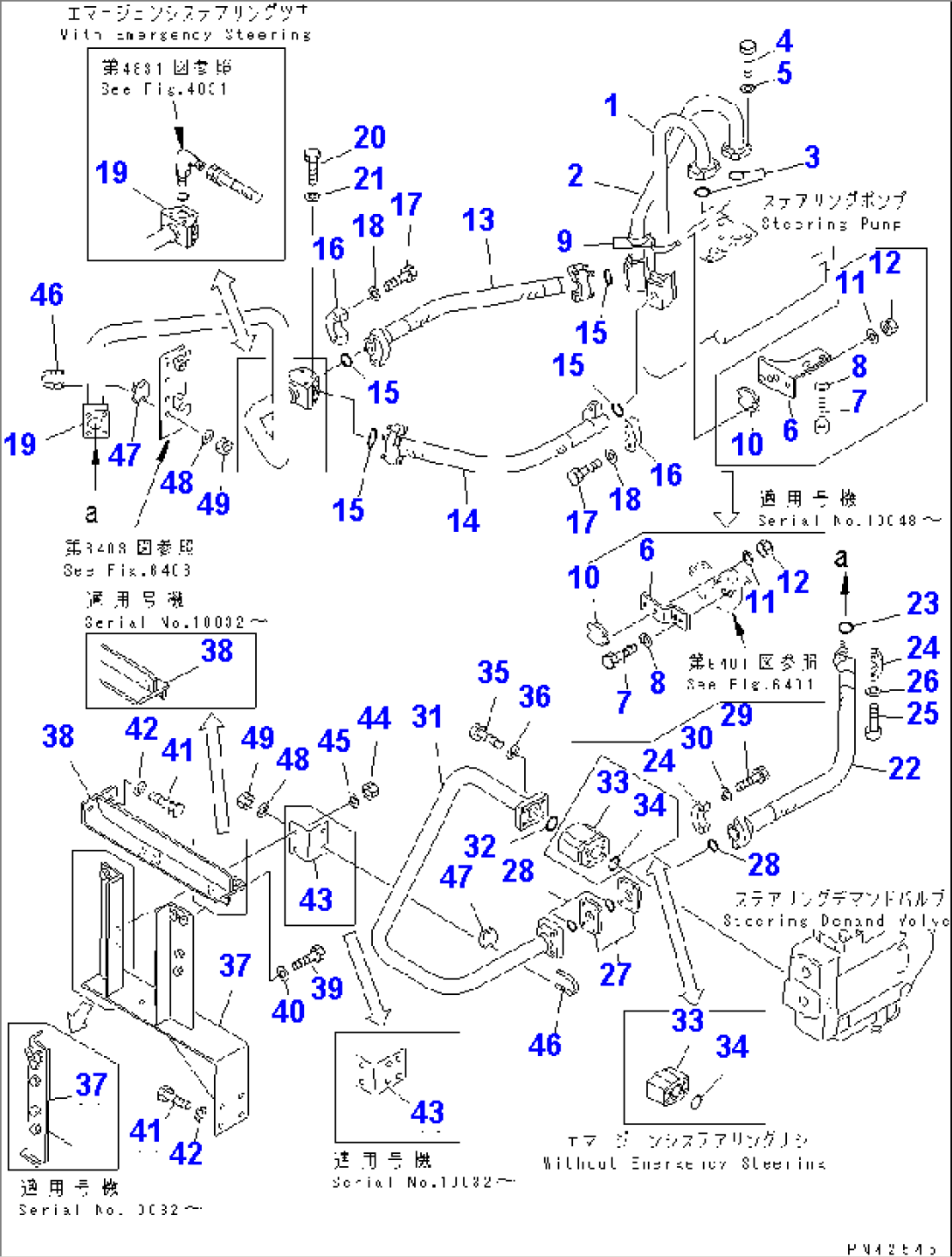

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 427-62-14140 | TUBE | 10001- | |
| 2 | 427-62-14150 | TUBE | 10001- | |
| 3 | 07000-F3035 | O-RING | 10054- | |
| \0\07000-13035 | O-RING | 10001-10053 | ||
| 4 | 01010-81045 | BOLT | 10001- | |
| 5 | 01643-31232 | WASHER | 10001- | |
| 6 | 427-62-15530 | BRACKET | 10048- | |
| \3\427-62-14210 | BRACKET | 10001-10047 | ||
| (427-62-15530{01010-51235(2)¤} | ||||
| 427-62-15510) | ||||
| 7 | 01010-81235 | BOLT | 10048- | |
| 01010-51230 | BOLT | 10001-10047 | ||
| 8 | 01643-31232 | WASHER | 10001- | |
| 9 | 07283-33450 | CLIP | 10048- | |
| 07283-33450 | CLIP | 10001-10047 | ||
| 10 | 07283-53444 | SEAT | 10048- | |
| 07283-53444 | SEAT | 10001-10047 | ||
| 11 | 01643-31032 | WASHER | 10048- | |
| 01643-31032 | WASHER | 10001-10047 | ||
| 12 | 01597-01009 | NUT | 10048- | |
| 426-09-11160 | NUT | 10001-10047 | ||
| 13 | 427-Z87-1310 | HOSE | 10703- | |
| \0\427-62-15630 | HOSE | 10001-10702 | ||
| (\2\07099-01006) | HOSE | (10001-10059) | ||
| 14 | 427-Z87-1320 | HOSE | 10703- | |
| \0\427-62-15640 | HOSE | 10001-10702 | ||
| (\2\07099-01007) | HOSE | (10001-10059) | ||
| 15 | 07000-F3032 | O-RING | 10054- | |
| \0\07000-13032 | O-RING | 10001-10053 | ||
| 16 | 07371-21049 | FLANGE,SPLIT | 10001- | |
| 17 | 07372-21035 | BOLT | 10001- | |
| 18 | 01643-51032 | WASHER | 10001- | |
| 19 | 427-62-14351 | TUBE | 10001- | |
| 20 | 01011-81200 | BOLT | 10001- | |
| 21 | 01643-31232 | WASHER | 10001- | |
| 22 | 427-Z87-1330 | HOSE | 10703- | |
| \0\427-62-15670 | HOSE | 10001-10702 | ||
| (\2\07099-01417) | HOSE | (10001-10059) | ||
| 23 | 07000-F3048 | O-RING | 10054- | |
| \0\07000-13048 | O-RING | 10001-10053 | ||
| 24 | 07371-51470 | FLANGE,SPLIT | 10001- | |
| 25 | 01010-81460 | BOLT | 10001- | |
| 26 | 01643-31445 | WASHER | 10001- | |
| 27 | 427-62-12820 | FLANGE | 10001-10499 | |
| 28 | 07000-23048 | O-RING | 10054-10499 | |
| \0\07000-13048 | O-RING | 10001-10053 | ||
| 07000-23048 | O-RING | 10054-10499 | ||
| \0\07000-13048 | O-RING | 10001-10053 | ||
| 07000-F3048 | O-RING | 10054- | ||
| \0\07000-13048 | O-RING | 10001-10053 | ||
| 29 | 01010-51485 | BOLT | 10001-10499 | |
| 01010-51470 | BOLT | 10001-10499 | ||
| 01010-81460 | BOLT | 10001- | ||
| 30 | 01643-31445 | WASHER | 10001- | |
| 31 | 427-62-12653 | TUBE | 10001- | |
| (\2\427-62-12651) | TUBE | (10001-10007) | ||
| 32 | 07000-F3048 | O-RING | 10054- | |
| \0\07000-13048 | O-RING | 10001-10053 | ||
| 33 | (702-13-43900) | VALVE ASS'Y,CHECK (SEE FIG.6241) | 10001- | |
| (427-87-15440) | BLOCK,(WITHOUT EMERGENCY STEERING) | 10501- | ||
| 34 | (07000-F3045) | O-RING | 10054- | |
| \0\07000-13045 | O-RING | 10001-10053 | ||
| 07000-F3048 | O-RING,(WITHOUT EMERGENCY STEERING) | 10501- | ||
| 35 | 01011-81435 | BOLT | 10048- | |
| 01011-51435 | BOLT | 10001-10047 | ||
| 36 | 01643-31445 | WASHER | 10001- | |
| 37 | 427-62-12533 | BRACKET | 10501- | |
| \0\427-62-12532 | BRACKET | 10001-10499 | ||
| (\2\427-62-12531) | BRACKET | (10001-10031) | ||
| 38 | 427-62-12543 | BRACKET | 10501- | |
| \0\427-62-12542 | BRACKET | 10001-10499 | ||
| (\2\427-62-12541) | BRACKET | (10001-10031) | ||
| 39 | 01435-01235 | BOLT | 10501- | |
| \0\01010-51235 | BOLT | 10001-10499 | ||
| 40 | 01643-31232 | WASHER | 10001-10499 | |
| 41 | 01435-01240 | BOLT | 10501- | |
| \0\01010-51245 | BOLT | 10001-10499 | ||
| 42 | 01643-31232 | WASHER | 10001-10499 | |
| 43 | 427-62-12553 | PLATE | 10001- | |
| (\2\427-62-12552) | PLATE | (10001-10031) | ||
| 44 | 01010-81235 | BOLT | 10001- | |
| 45 | 124-54-26540 | WASHER | 10001- | |
| 46 | 07283-34957 | CLIP | 10001- | |
| 07283-34957 | CLIP | 10001-10031 | ||
| 47 | 07283-54959 | SEAT | 10001- | |
| 07283-54959 | SEAT | 10001-10031 | ||
| 48 | 01643-31032 | WASHER | 10001- | |
| 01643-31032 | WASHER | 10001-10031 | ||
| 49 | 01597-01009 | NUT | 10001- | |
| 426-09-11160 | NUT | 10001-10031 |
