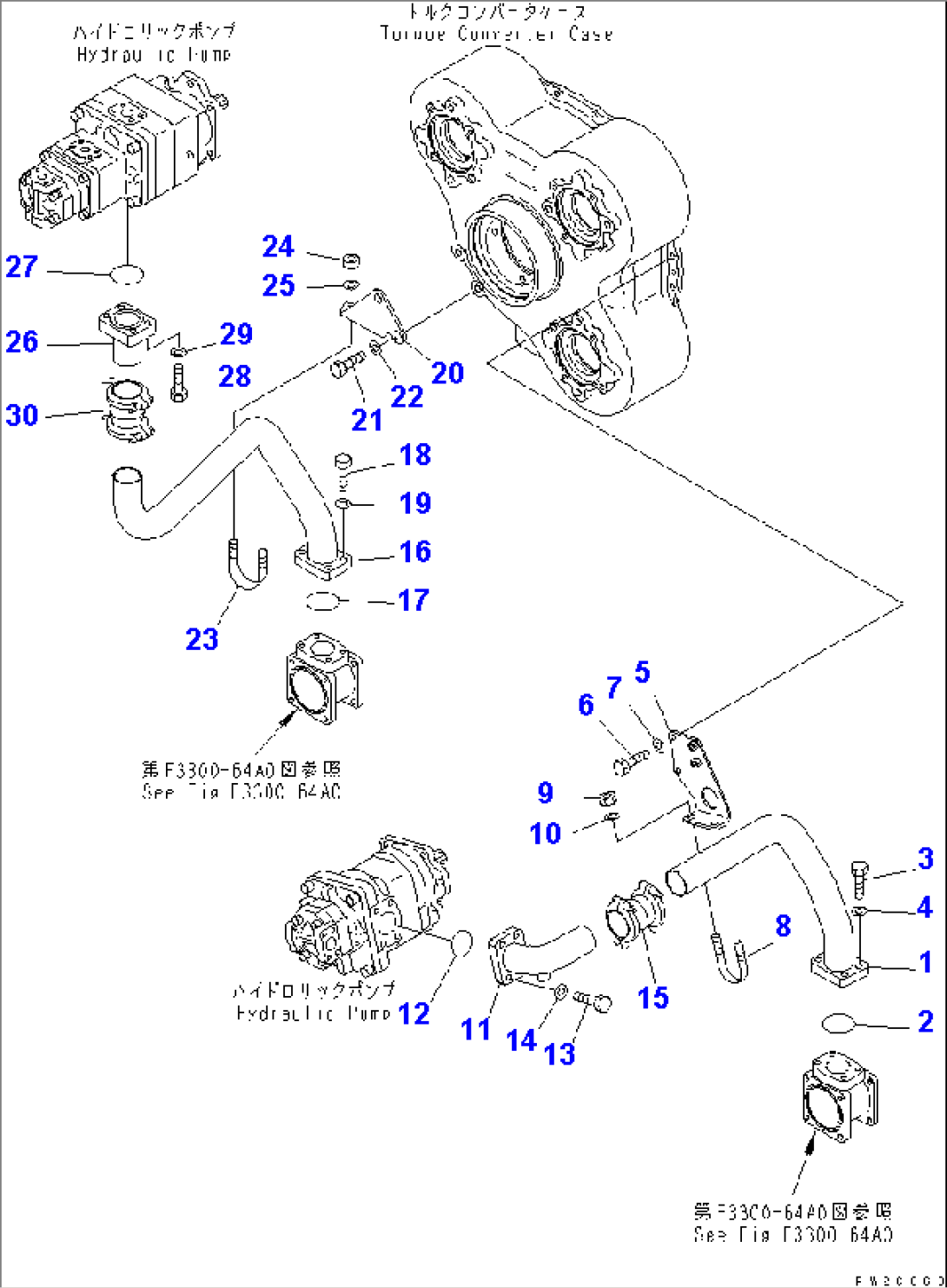

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 56C-61-12111 | TUBE | 1001- | |
| 2 | 07000-F2060 | O-RING | 1001- | |
| 3 | 07372-21245 | BOLT | 1001- | |
| 4 | 01643-51232 | WASHER | 1001- | |
| 5 | 56C-61-12150 | BRACKET | 1001- | |
| 6 | 01010-81250 | BOLT | 1001- | |
| 7 | 01643-31232 | WASHER | 1001- | |
| 8 | 07283-36155 | CLIP | 1001- | |
| 9 | 01597-01009 | NUT | 1001- | |
| 10 | 01643-31032 | WASHER | 1001- | |
| 11 | 56B-61-12120 | TUBE | 1001- | |
| 12 | 07000-F2060 | O-RING | 1001- | |
| 13 | 07372-21240 | BOLT | 1001- | |
| 14 | 01643-51232 | WASHER | 1001- | |
| 15 | 07332-02000 | COUPLING | 1001- | |
| 15 | 07332-52000 | GASKET | 1001- | |
| 15 | 07332-62000 | CLAMP | 1001- | |
| 16 | 56C-61-12131 | TUBE | 1001- | |
| 17 | 07000-F2060 | O-RING | 1001- | |
| 18 | 07372-21245 | BOLT | 1001- | |
| 19 | 01643-51232 | WASHER | 1001- | |
| 20 | 56C-61-12160 | BRACKET | 1001- | |
| 21 | 01010-81640 | BOLT | 1001- | |
| 22 | 01643-31645 | WASHER | 1001- | |
| 23 | 07283-36155 | CLIP | 1001- | |
| 24 | 01597-01009 | NUT | 1001- | |
| 25 | 01643-31032 | WASHER | 1001- | |
| 26 | 56B-61-12141 | TUBE | 1001- | |
| 27 | 07000-F2060 | O-RING | 1001- | |
| 28 | 07372-21245 | BOLT | 1001- | |
| 29 | 01643-51232 | WASHER | 1001- | |
| 30 | 07332-02000 | COUPLING | 1001- | |
| 30 | 07332-52000 | GASKET | 1001- | |
| 30 | 07332-62000 | CLAMP | 1001- |
