| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 56B-61-13550 | HOSE | 7001- | |
| 2 | 56B-61-13560 | HOSE | 7001- | |
| 3 | 56B-61-24310 | CLIP | 7001- | |
| 4 | 07095-00630 | CUSHION | 7001- | |
| 5 | 56B-61-14230 | BRACKET | 7001-7019 | |
| 6 | 01010-81020 | BOLT | 7001-7019 | |
| 7 | 01643-31032 | WASHER | 7001-7019 |
- Главная
- Каталог запчастей
- Самосвалы
- Hm350 2r s/n 7001 7029 (w/o egr)
- Hydraulic system
- Hydraulic piping (radiator cooling line)(#7001 )
Поиск по каталогу

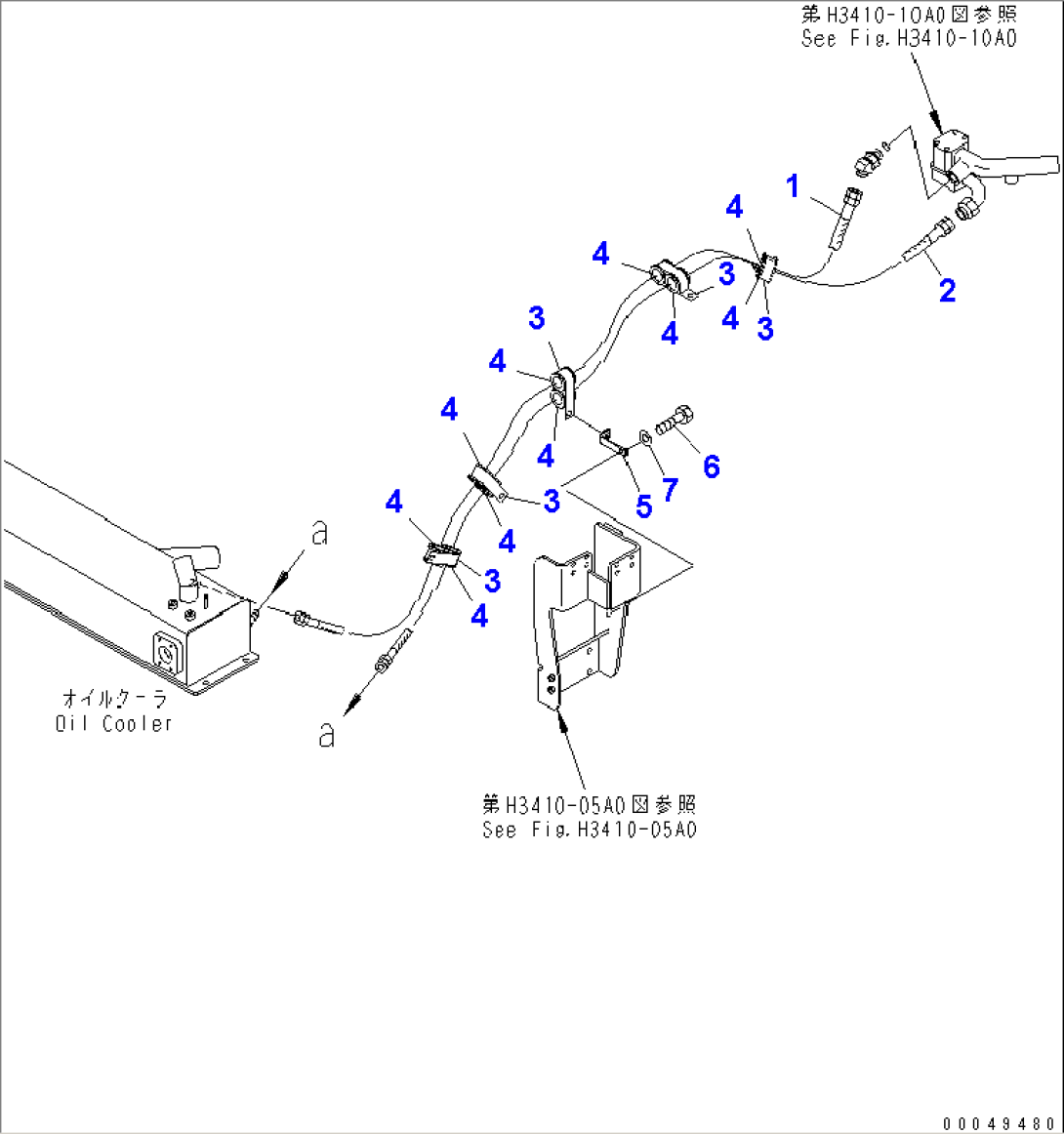

HYDRAULIC PIPING (RADIATOR COOLING LINE)(#7001-)
