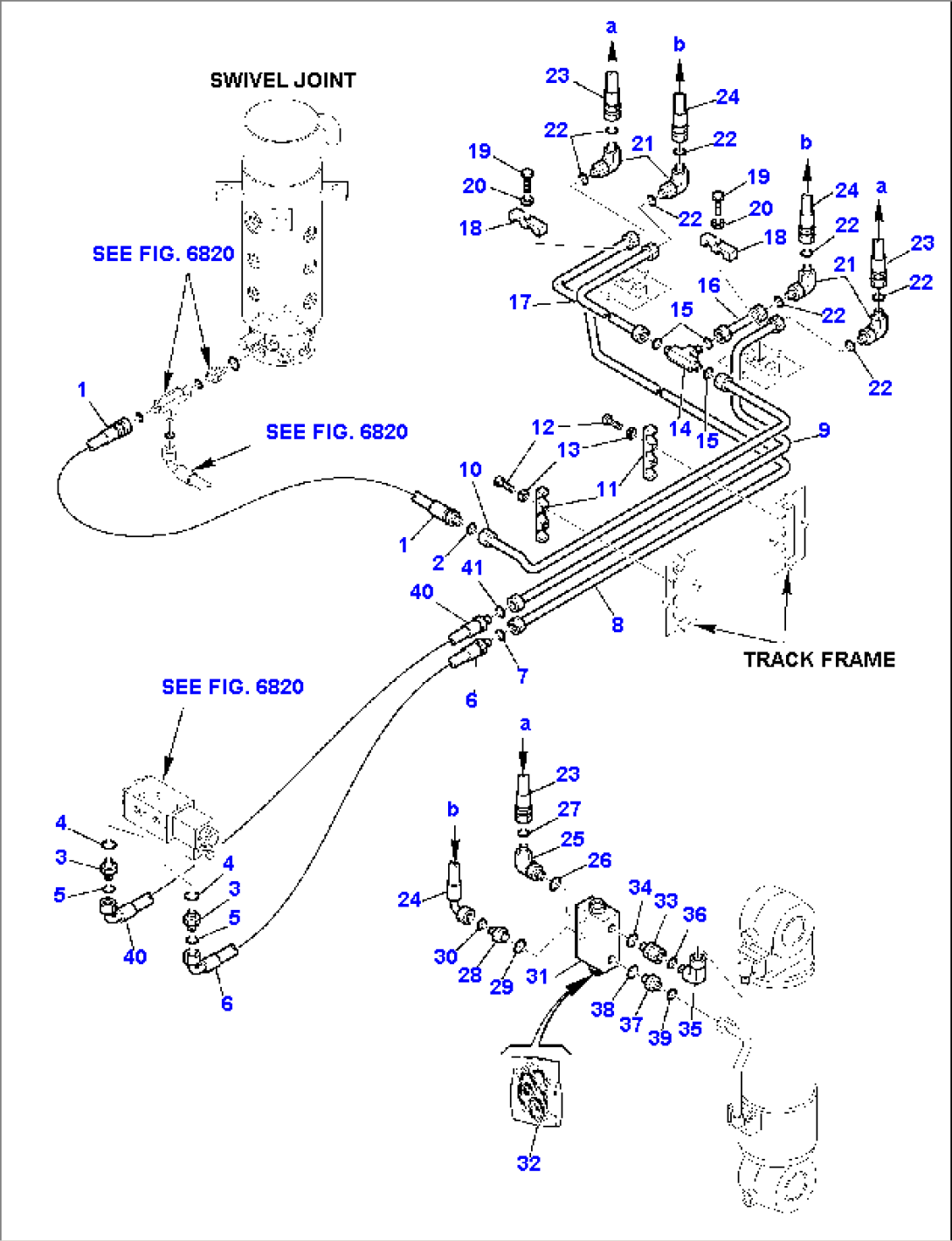

HYDRAULIC PIPING (REAR AND FRONT OUTRIGGER) (2/2)

HYDRAULIC PIPING (REAR AND FRONT OUTRIGGER) (2/2)

HYDRAULIC PIPING (REAR AND FRONT OUTRIGGER) (2/2)

Item	Part No.	Part Name	Qty	Serial No.
1	22E-09-15610	HOSE		21D0220079-
2	21D-09-69670	O-RING		21D0220079-
3	226-09-12680	UNION		21D0220079-
4	21D-09-69970	O-RING		21D0220079-
5	21D-09-69670	O-RING		21D0220079-
6	22E-09-12870	HOSE		21D0220079-
7	21D-09-69670	O-RING		21D0220079-
8	21D-62-14590	PIPE		21D0220079-
9	21D-62-14610	PIPE		21D0220079-
10	21D-62-14620	PIPE		21D0220079-
11	21D-09-68220	CLAMP		21D0220079-
12	01435-00830	BOLT		21D0220079-
13	01643-30823	SPRING WASHER		21D0220079-
14	226-09-12380	TEE		21D0220079-
15	21D-09-69670	O-RING		21D0220079-
16	21D-62-14630	PIPE		21D0220079-
17	21D-62-14640	PIPE		21D0220079-
18	21D-09-68180	HOSE-CLAMP		21D0220079-
19	01010-50630	BOLT		21D0220079-
20	01643-30623	WASHER		21D0220079-
21	226-09-12150	ELBOW		21D0220079-
22	21D-09-69670	O-RING		21D0220079-
23	22E-09-12780	HOSE		21D0220079-
24	22E-09-12480	HOSE		21D0220079-
25	226-09-12750	ELBOW		21D0220079-
26	21D-09-69910	O-RING		21D0220079-
27	21D-09-69670	O-RING		21D0220079-
28	226-09-12670	UNION		21D0220079-
29	21D-09-69910	O-RING		21D0220079-
30	21D-09-69670	O-RING		21D0220079-
31	21D-60-17200	VALVE, ASSY.		21D0220079-
32	21D-60-17250	KIT, GASKET		21D0220079-
33	226-62-13350	UNION		21D0220079-
34	21D-09-69910	O-RING		21D0220079-
35	226-09-12120	ELBOW		21D0220079-
36	21D-09-69770	O-RING		21D0220079-
37	226-62-13360	UNION		21D0220079-
38	21D-09-69910	O-RING		21D0220079-
39	21D-09-69770	O-RING		21D0220079-
40	22E-09-12990	HOSE		21D0220079-
41	21D-09-69670	O-RING		21D0220079-
		SEE FIG. 6820
