| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | VALVE, TWO SPOOL (SEE PG 10-068) | |||
| 2 | 222 648 H1 | CONNECTOR | ||
| 3 | 296 247 R1 | O-RING | ||
| 4 | 1249 050 H1 | HOSE, TO REAR | ||
| 5 | 306 132 C1 | STRAP, TIE | ||
| 6 | 709 381 C1 | TRIM, MOLDING | ||
| 7 | 9403 334 | PLUG, HOSE |
- Главная
- Каталог запчастей
- Бульдозеры
- Td 8g s/n u000501 up/k005001 up
- Hydraulics
- Hydraulic piping rear auxiliary circuit two spool valve w/o diverter valve
Поиск по каталогу

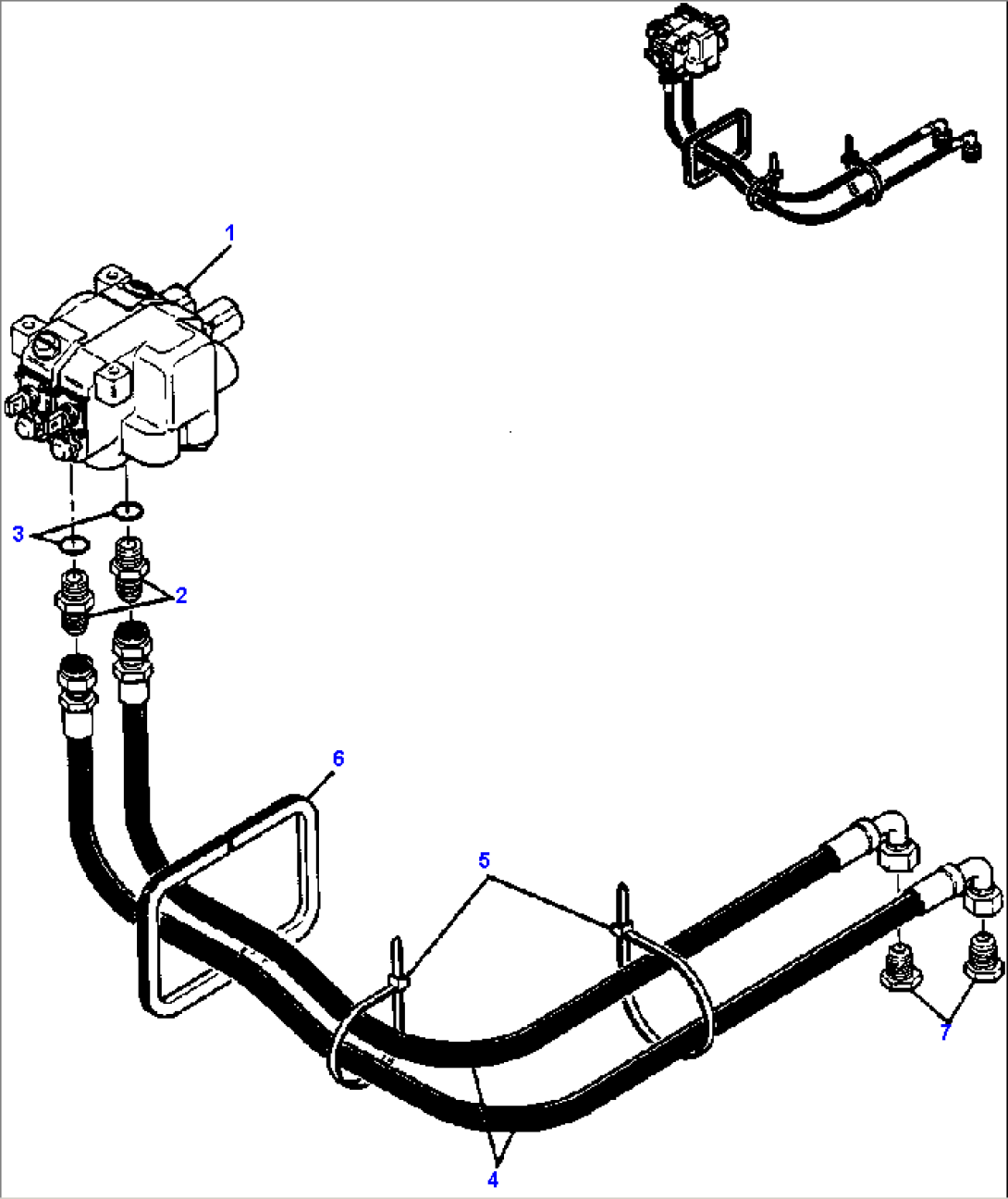

HYDRAULIC PIPING - REAR AUXILIARY CIRCUIT - TWO SPOOL VALVE W/O DIVERTER VALVE
