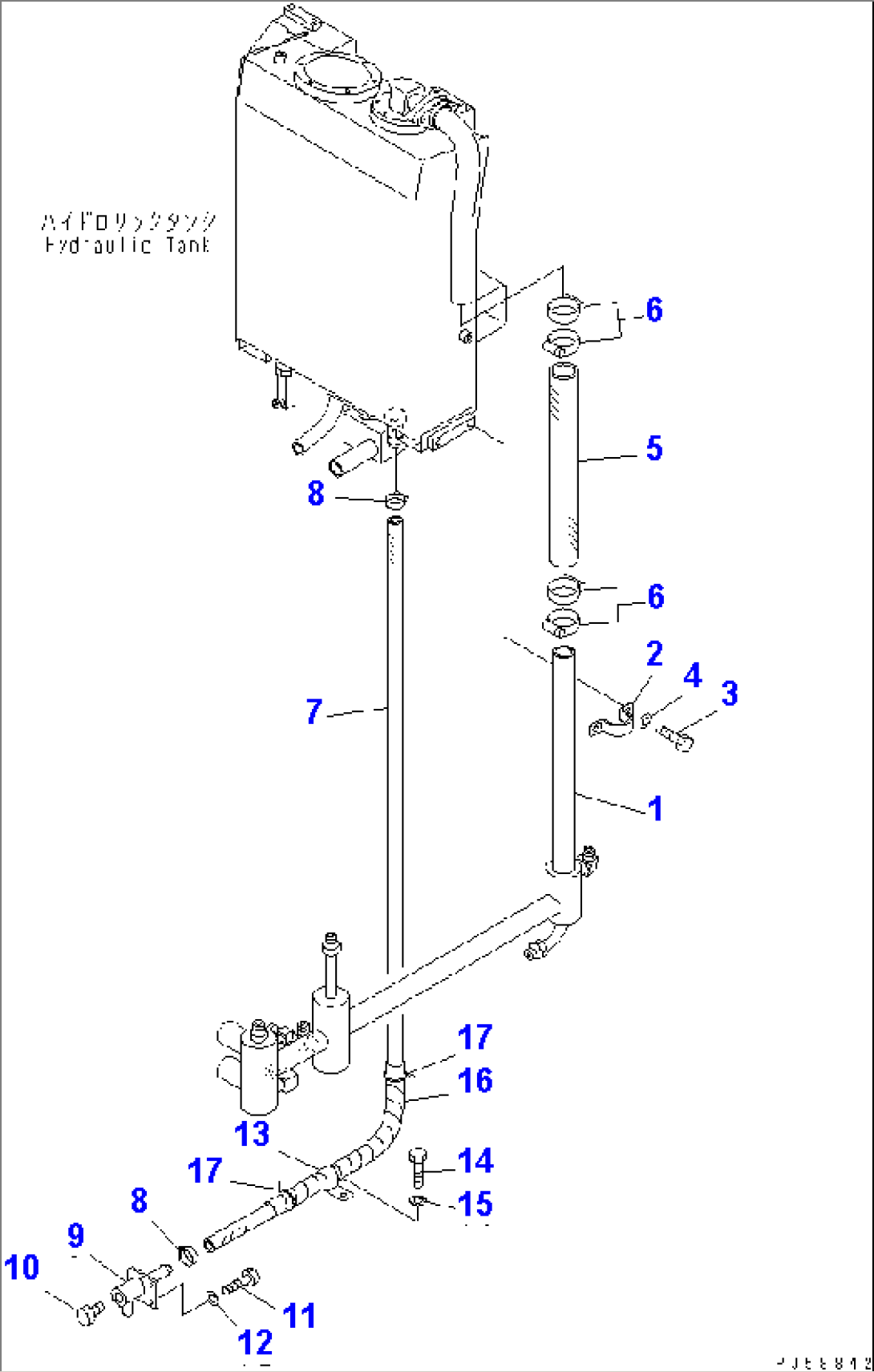

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 23D-60-32484 | TUBE | 4701- | |
| 2 | 07282-14311 | CLAMP | 4701- | |
| 3 | 01010-81020 | BOLT | 4701- | |
| 4 | 01643-31032 | WASHER | 4701- | |
| 5 | 07260-04163 | HOSE | 4701- | |
| 6 | 07289-00055 | CLAMP | 4701- | |
| 7 | 23D-60-32650 | HOSE | 4701- | |
| 8 | 07289-00035 | CLAMP | 4701- | |
| 9 | 278-19-12140 | TUBE | 4701- | |
| 10 | 424-01-11110 | PLUG | 4701- | |
| 11 | 01010-81025 | BOLT | 4701- | |
| 12 | 01643-31032 | WASHER | 4701- | |
| 13 | 04434-53211 | CLIP | 4701- | |
| 14 | 01010-81020 | BOLT | 4701- | |
| 15 | 01643-31032 | WASHER | 4701- | |
| 16 | 273-60-24450 | TUBE,SPIRAL | 4701- | |
| 17 | 08034-00536 | BAND | 4701- |
