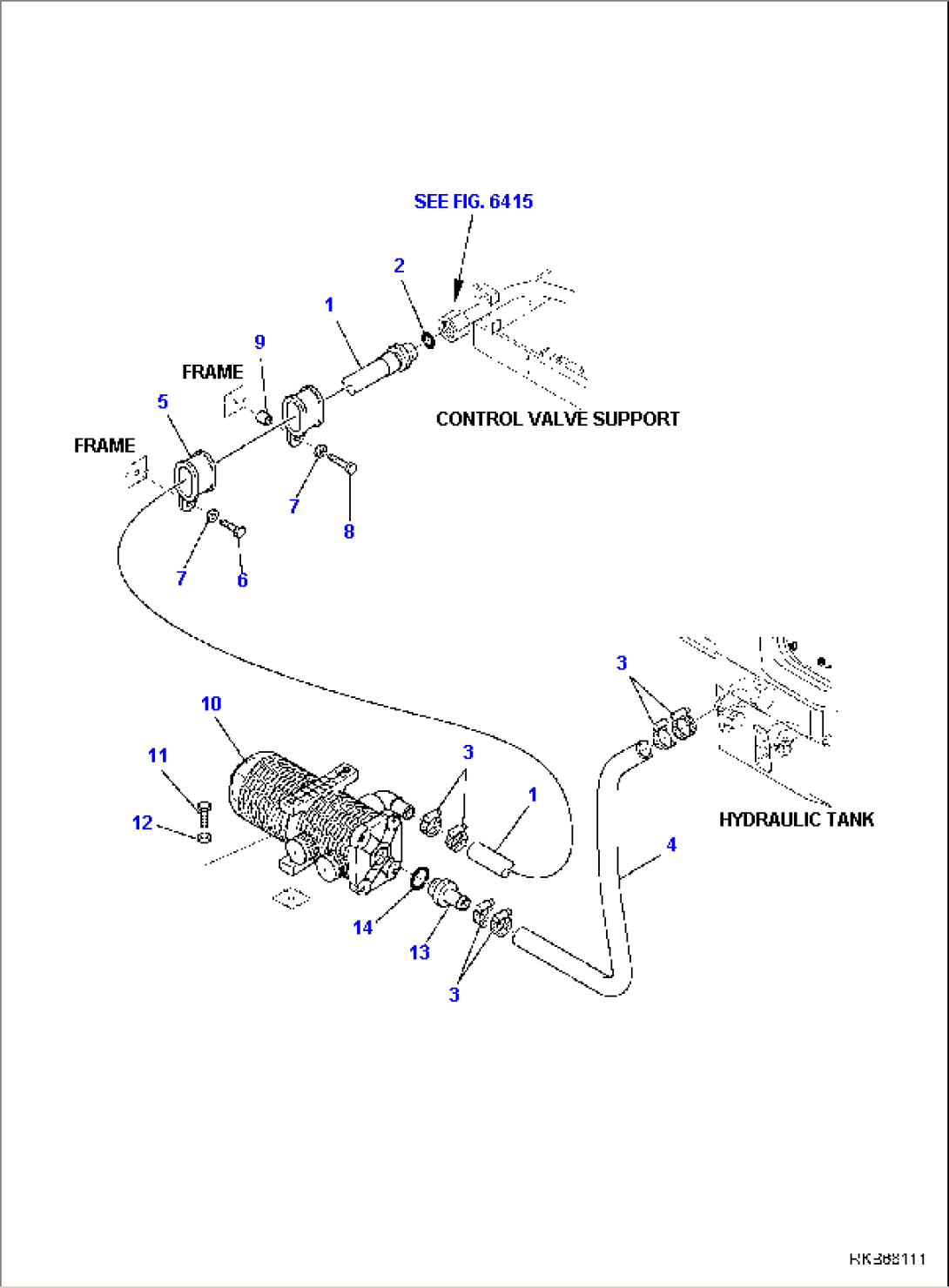

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 42N-62-12251 | HOSE | F20003- | |
| 2 | 37B-09-15021 | O-RING | F20003- | |
| 3 | 37A-09-5J007 | CLAMP | F20003- | |
| 4 | 42N-62-14250 | SLEEVE | F20003- | |
| 5 | 21D-09-81710 | CLIP | F20003- | |
| 6 | 01016-51040 | BOLT | F20003- | |
| 7 | 01643-11032 | WASHER | F20003- | |
| 8 | 01016-51050 | BOLT | F20003- | |
| 9 | 42N-62-15360 | SPACER | F20003- | |
| 10 | (42N-62-12310) | FILTER | F20003- | |
| 11 | 01016-50835 | BOLT | F20003- | |
| 12 | 01643-10823 | WASHER | F20003- | |
| 13 | 42N-09-11210 | UNION | F20003- | |
| 14 | 37B-09-15217 | O-RING | F20003- | |
| SEE FIG. 6415 |
