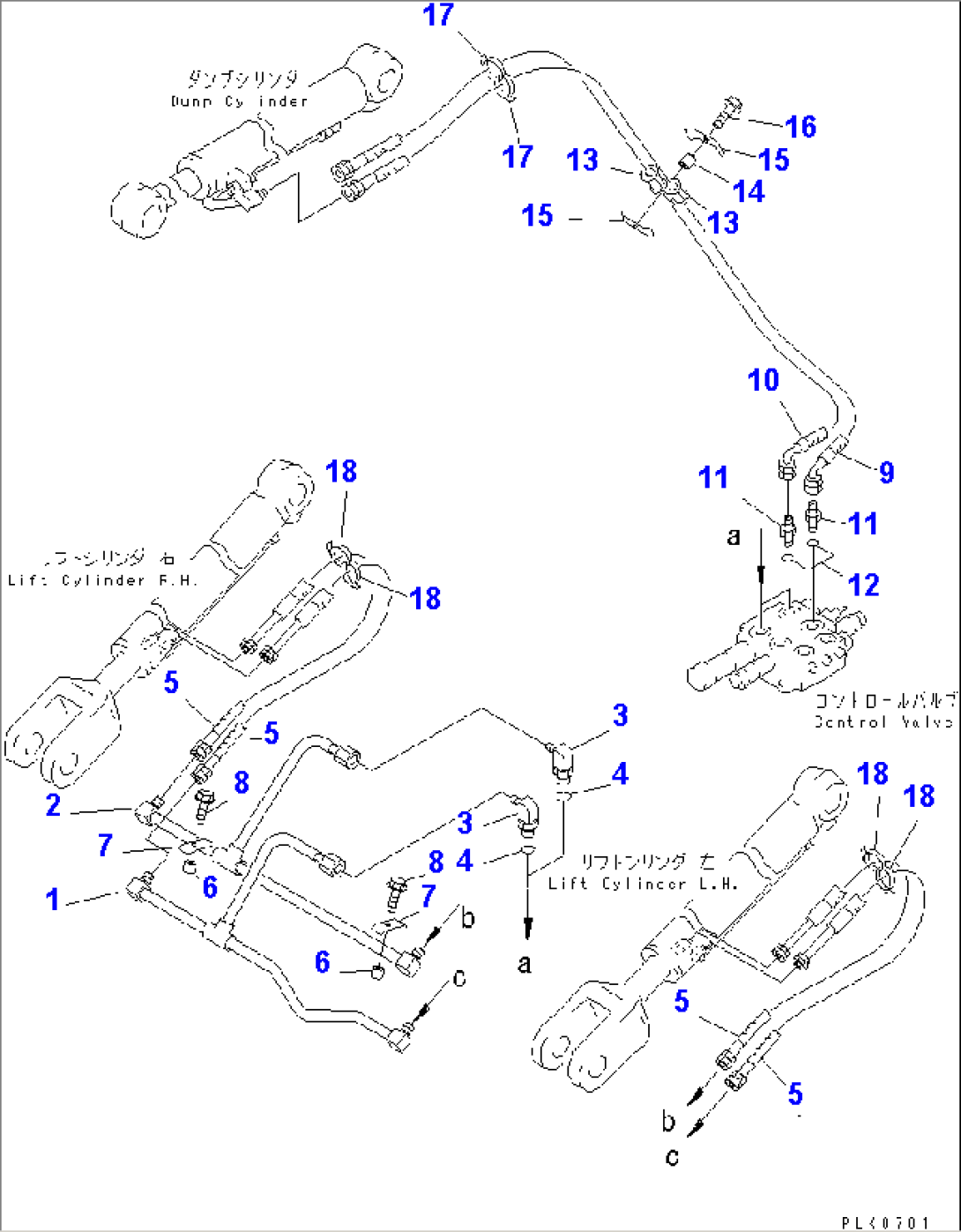

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 361-V94-2210 | TUBE | 11270-@ | |
| 2 | 361-V94-2220 | TUBE | 11270-@ | |
| 3 | 363-62-33510 | ELBOW | 11270-@ | |
| 4 | 07000-12018 | O-RING | 11270-@ | |
| 5 | 361-62-23230 | HOSE | 11270-@ | |
| 6 | 363-62-33410 | SPACER | 11270-@ | |
| 7 | 363-62-31160 | CLAMP | 11270-@ | |
| 8 | 01435-01040 | BOLT | 11270-@ | |
| 9 | 361-62-23220 | HOSE | 11270-@ | |
| 10 | 361-62-23310 | HOSE | 11270-@ | |
| 11 | 419-15-14710 | NIPPLE | 11270-@ | |
| 12 | 07000-12018 | O-RING | 11270-@ | |
| 13 | 416-878-1470 | GROMMET | 11270-@ | |
| 14 | 363-62-33280 | SPACER | 11270-@ | |
| 15 | 363-62-33270 | CLAMP | 11270-@ | |
| 16 | 01435-01050 | BOLT | 11270-@ | |
| 17 | 08034-20519 | BAND | 11270-@ | |
| 18 | 08034-20536 | BAND | 11270-@ |
