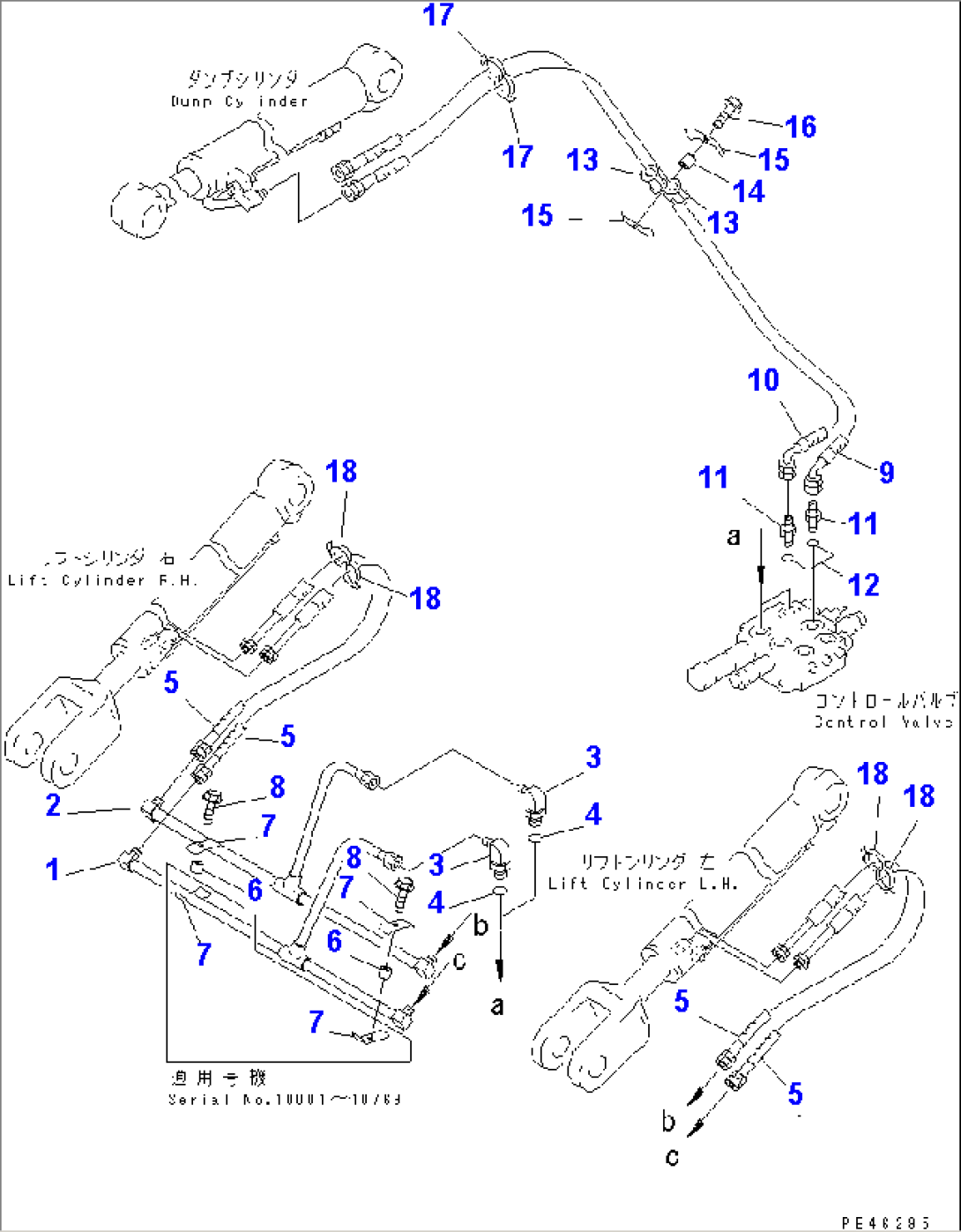

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 361-62-23130 | TUBE | 10001-@ | |
| 2 | 361-62-23140 | TUBE | 10001-@ | |
| 3 | 363-62-31210 | ELBOW | 10001-@ | |
| 4 | 07000-12014 | O-RING | 10001-@ | |
| 5 | 361-62-23230 | HOSE | 10001-@ | |
| 6 | 363-62-33410 | SPACER | 10001-@ | |
| 7 | 363-62-31160 | CLAMP | 10770-@ | |
| 7 | 363-62-31160 | CLAMP | 10001-10769 | |
| 8 | 01435-01040 | BOLT | 10001-@ | |
| 9 | 361-62-23220 | HOSE | 10001-@ | |
| 10 | 361-62-23310 | HOSE | 10001-@ | |
| 11 | 361-62-23250 | NIPPLE | 10001-@ | |
| 12 | 07000-12014 | O-RING | 10001-@ | |
| 13 | 416-878-1470 | GROMMET | 10001-@ | |
| 14 | 363-62-33280 | SPACER | 10001-@ | |
| 15 | 363-62-33270 | CLAMP | 10001-@ | |
| 16 | 01435-01050 | BOLT | 10001-@ | |
| 17 | 08034-20519 | BAND | 10001-@ | |
| 18 | 08034-20536 | BAND | 10001-@ |
