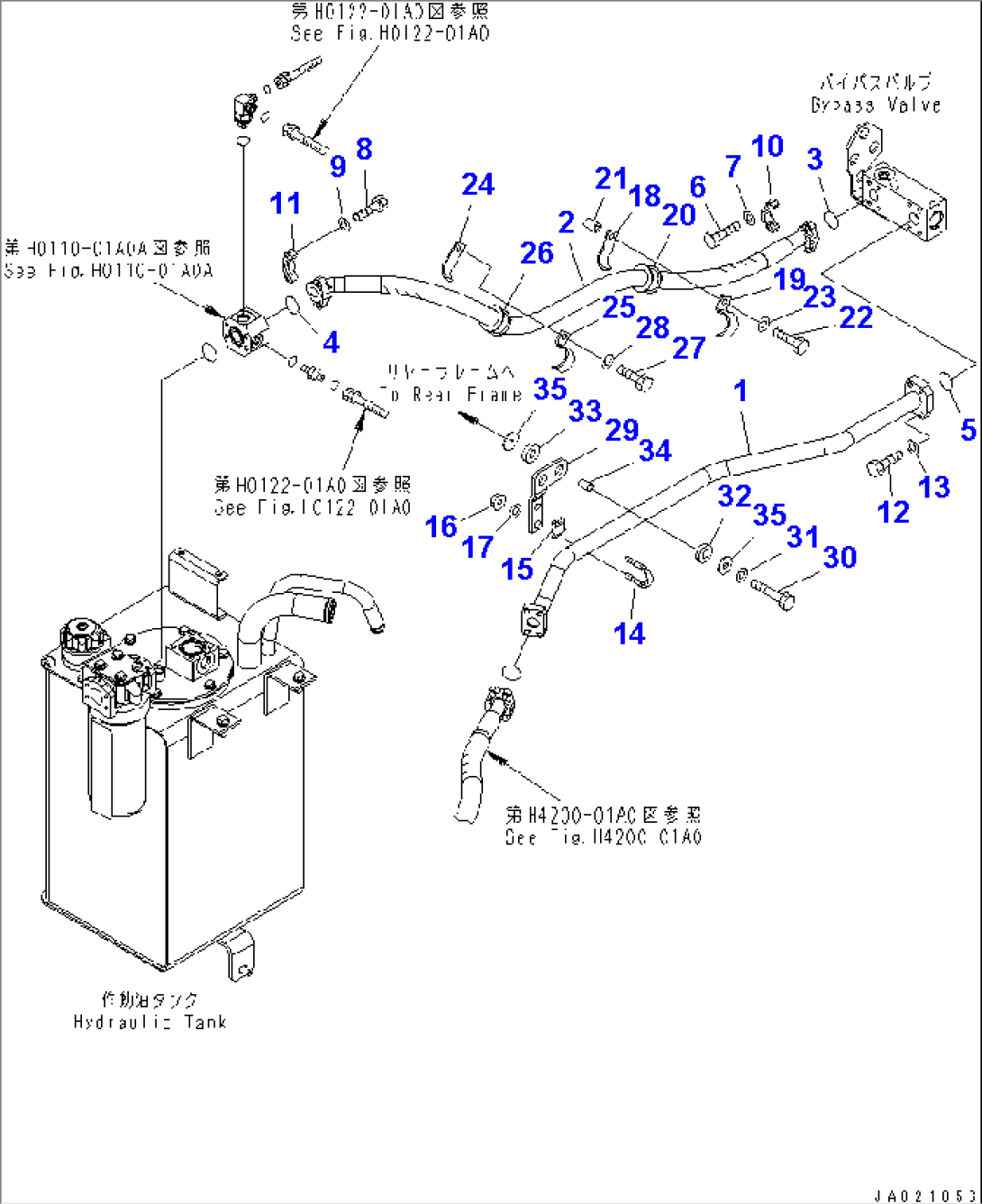

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 417-62-31344 | TUBE | 65001- | |
| 2 | 417-62-31480 | HOSE | 65001- | |
| 3 | 07000-13032 | O-RING | 65001- | |
| 4 | 07000-13032 | O-RING | 65001- | |
| 5 | 07000-13038 | O-RING | 65001- | |
| 6 | 07372-21035 | BOLT | 65001- | |
| 7 | 01643-51032 | WASHER | 65001- | |
| 8 | 07372-21035 | BOLT | 65001- | |
| 9 | 01643-51032 | WASHER | 65001- | |
| 10 | 07371-31049 | FLANGE | 65001- | |
| 11 | 07371-31049 | FLANGE | 65001- | |
| 12 | 07372-21040 | BOLT | 65001- | |
| 13 | 01643-51032 | WASHER | 65001- | |
| 14 | 07283-33450 | CLIP | 65001- | |
| 15 | 07283-53444 | SEAT | 65001- | |
| 16 | 01597-01009 | NUT | 65001- | |
| 17 | 01643-31032 | WASHER | 65001- | |
| 18 | 418-62-32550 | CLAMP | 69292- | |
| 19 | 418-62-32560 | CLAMP | 69292- | |
| 20 | 21T-62-76840 | CUSHION | 69292- | |
| 21 | 6166-11-5391 | SPACER | 69292- | |
| 22 | 01010-81055 | BOLT | 69292- | |
| 23 | 01643-31032 | WASHER | 69292- | |
| 24 | 418-62-32550 | CLAMP | 69292- | |
| 25 | 418-62-32560 | CLAMP | 69292- | |
| 26 | 21T-62-76840 | CUSHION | 69292- | |
| 27 | 01010-81030 | BOLT | 69292- | |
| 28 | 01643-31032 | WASHER | 69292- | |
| 29 | 417-62-31161 | PLATE | 65001- | |
| 30 | 01010-81255 | BOLT | 65001- | |
| 31 | 01643-31232 | WASHER | 65001- | |
| 32 | 417-62-31170 | CUSHION | 65001- | |
| 33 | 417-62-31180 | CUSHION | 65001- | |
| 34 | 417-62-14130 | SPACER | 65001- | |
| 35 | 419-43-17920 | WASHER | 65001- |
