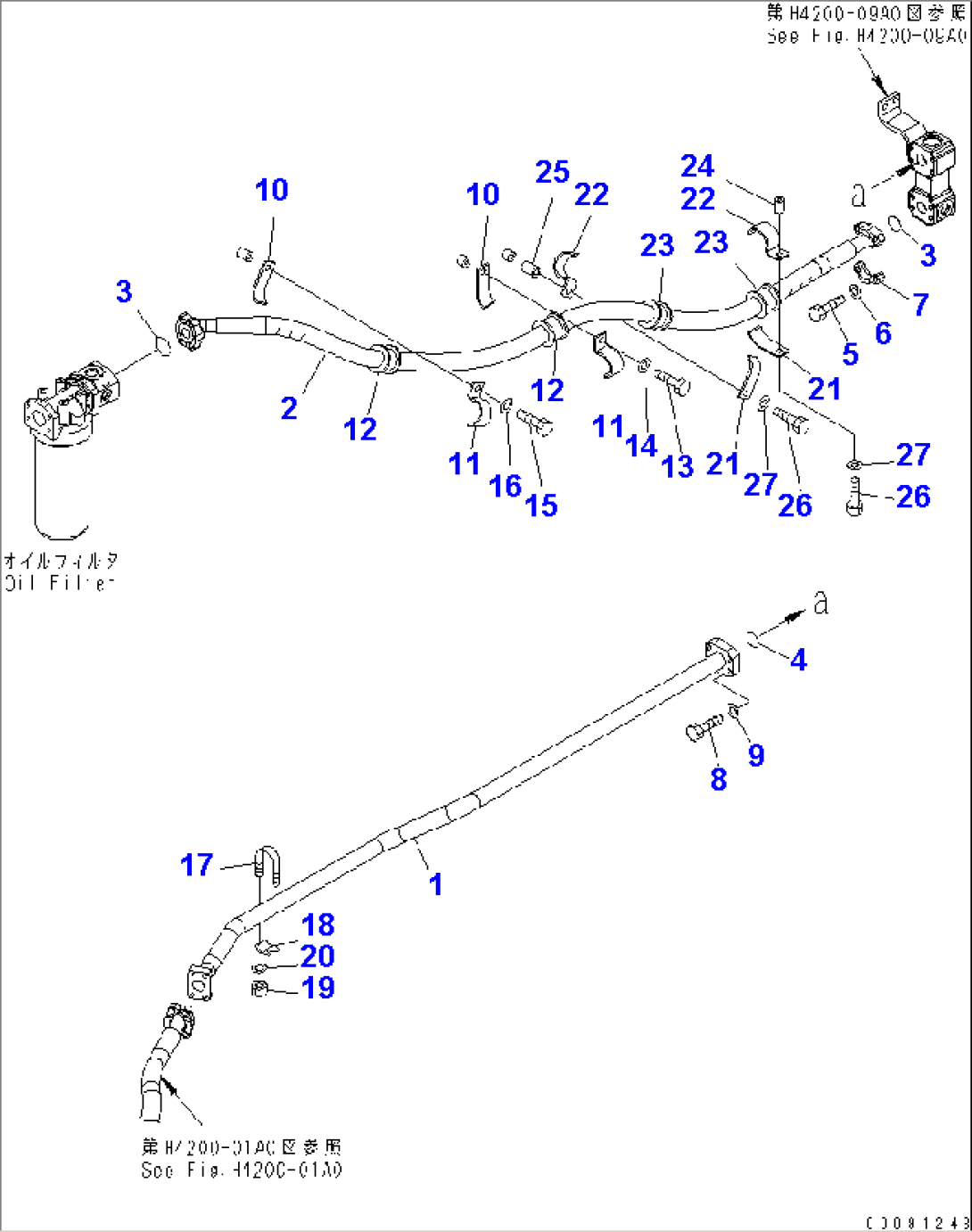

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 418-62-31764 | TUBE | 70079- | |
| 2 | 418-62-31480 | HOSE | 70001- | |
| 3 | 07000-13032 | O-RING | 70001- | |
| 4 | 07000-13038 | O-RING | 70001- | |
| 5 | 07372-21035 | BOLT | 70001- | |
| 6 | 01643-51032 | WASHER | 70001- | |
| 7 | 07371-31049 | FLANGE | 70001- | |
| 8 | 07372-21040 | BOLT | 70001- | |
| 9 | 01643-51032 | WASHER | 70001- | |
| 10 | 418-62-32550 | CLAMP | 72771- | |
| 11 | 418-62-32560 | CLAMP | 72771- | |
| 12 | 21T-62-76840 | CUSHION | 72771- | |
| 13 | 01010-81025 | BOLT | 72771- | |
| 14 | 01643-31032 | WASHER | 72771- | |
| 15 | 01010-81030 | BOLT | 72771- | |
| 16 | 01643-31032 | WASHER | 72771- | |
| 17 | 07283-33450 | CLIP | 70001- | |
| 18 | 07283-53444 | SEAT | 70001- | |
| 19 | 01597-01009 | NUT | 70001- | |
| 20 | 01643-31032 | WASHER | 70001- | |
| 21 | 418-62-32550 | CLAMP | 72771- | |
| 22 | 418-62-32560 | CLAMP | 72771- | |
| 23 | 21T-62-76840 | CUSHION | 72771- | |
| 24 | 6166-11-5391 | SPACER | 72771- | |
| 25 | 23B-06-61810 | SPACER | 72771- | |
| 26 | 01010-81060 | BOLT | 72771- | |
| 27 | 01643-31032 | WASHER | 72771- |
