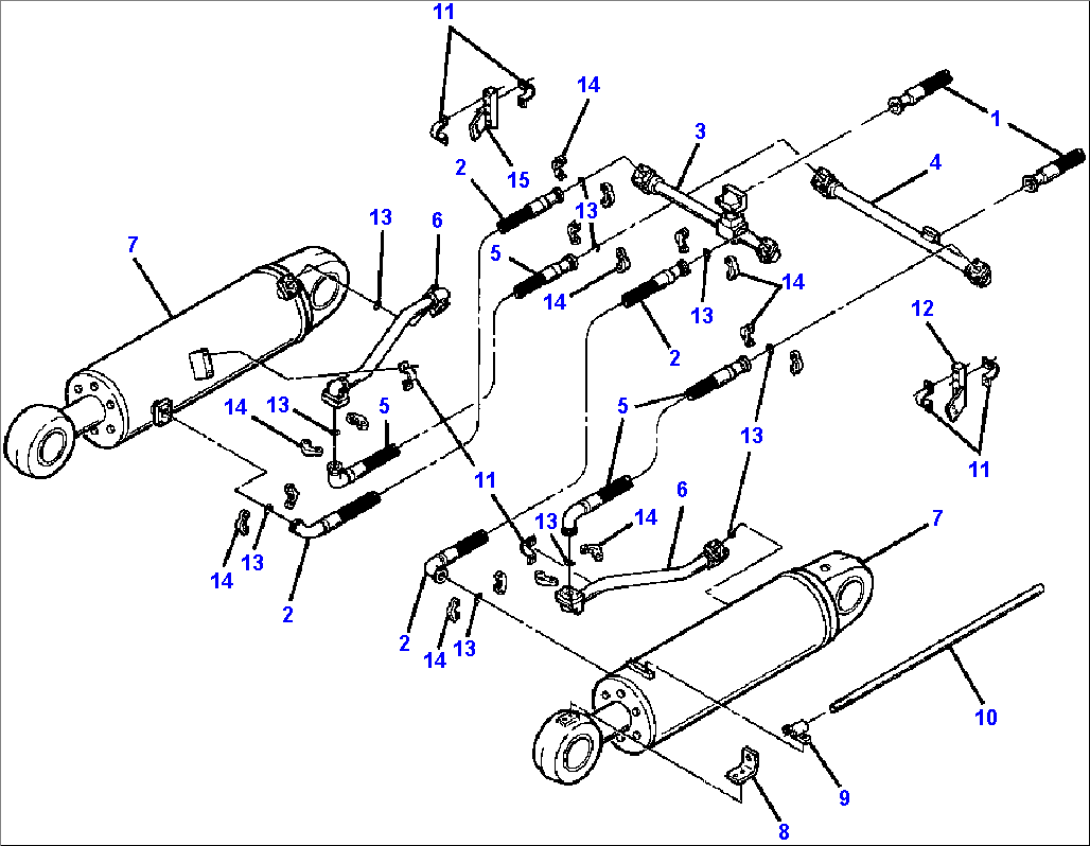

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | HOSES, FROM CONTROL VALVE (SEE PG 10-028) | |||
| 2 | 1213 154 H1 | HOSE, CYLINDER ROD END | ||
| 3 | 730 319 C1 | TUBE, CYLINDER ROD END | ||
| 4 | 730 318 C1 | TUBE, CYLINDER HEAD END | ||
| 5 | 730 321 C1 | HOSE, CYLINDER HEAD END | ||
| 6 | 730 320 C1 | TUBE, ON CYLINDER | ||
| 30 021 R1 | BOLT, MOUNTING - M10x30 | |||
| 30 026 R1 | BOLT, MOUNTING - M10x55 | |||
| 7 | CYLINDER, RIPPER PITCH (SEE PG 10-114) | |||
| 8 | 730 327 C1 | ANGLE, INDICATOR ROD | ||
| 30 020 R1 | BOLT, MOUNTING - | |||
| 30 176 R1 | WASHER, FLAT - M10 | |||
| 9 | 730 324 C1 | BRACKET, GUIDE | ||
| 30 020 R1 | BOLT, MOUNTING - M10x25 | |||
| 30 176 R1 | WASHER, FLAT - M10 | |||
| 10 | 730 323 C1 | ROD, INDICATOR | ||
| 30 187 R1 | WASHER, FLAT - M20 | |||
| 30 171 R1 | NUT, HEX - M20 | |||
| 11 | 645 337 C1 | CLIP, TUBE | ||
| 30 019 R1 | BOLT, MOUNTING - M10x20 | |||
| 30 176 R1 | WASHER, FLAT - M10 | |||
| 12 | 730 315 C1 | BRACKET, RIGHT TUBE | ||
| 30 042 R1 | BOLT, MOUNTING - M12x30 | |||
| 30 177 R1 | WASHER, FLAT - M12 | |||
| 13 | 343 906 R1 | O-RING | ||
| 14 | 1208 128 H1 | FLANGE, SPLIT | ||
| 30 021 R1 | BOLT, MOUNTING - M10x30 | |||
| 15 | 730 480 C1 | BRACKET, LEFT TUBE | ||
| 30 042 R1 | BOLT, MOUNTING - M12x30 | |||
| 30 177 R1 | WASHER, FLAT - M12 |
