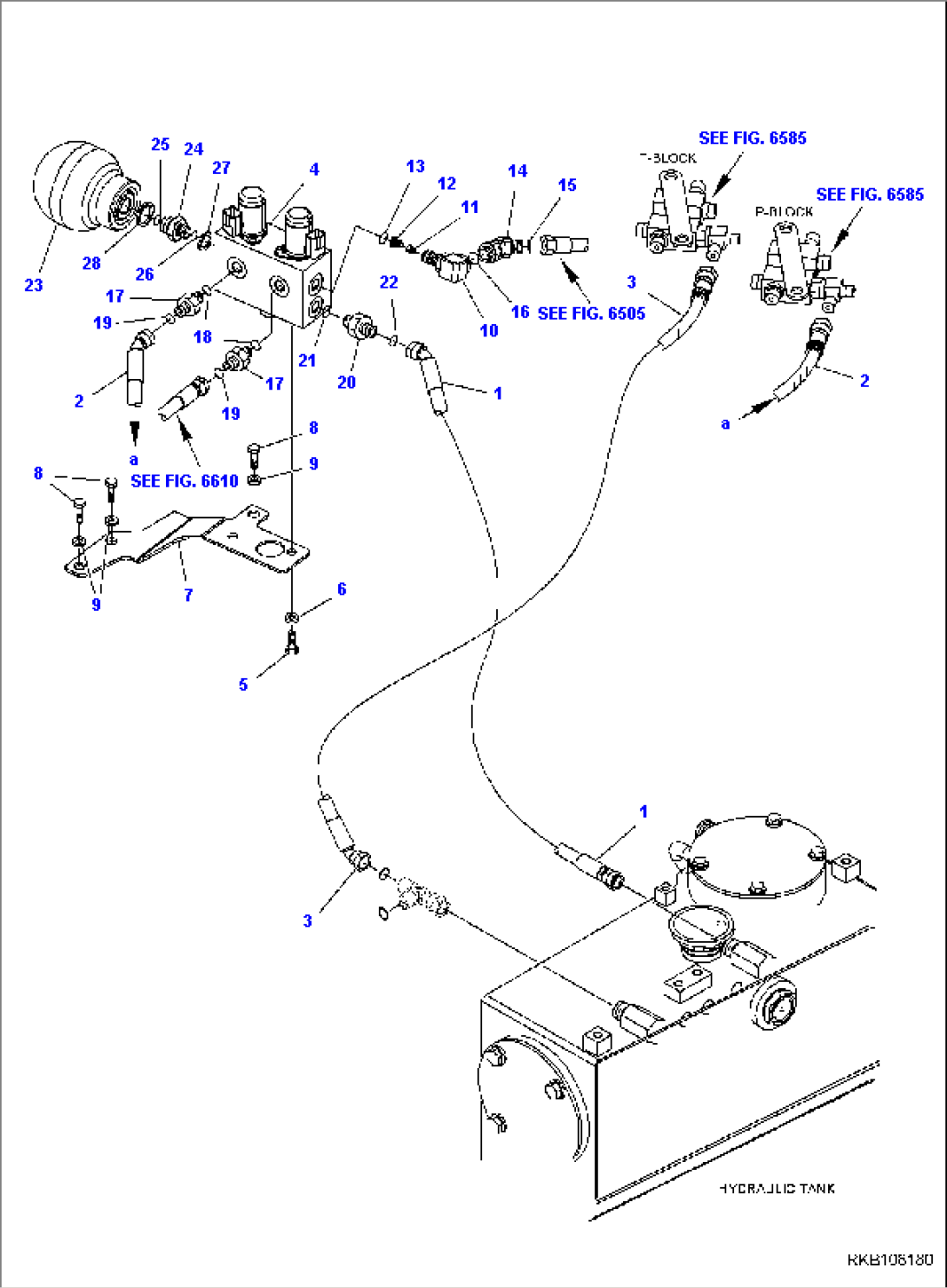

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 20W-62-92421 | HOSE | F60003- | |
| 2 | 20W-62-92891 | HOSE | F60003- | |
| 3 | 22L-09-R4820 | HOSE | F60003- | |
| 4 | (22F-60-R3402) | SOLENOID VALVE, ASSEMBLY | F60003- | |
| 5 | 01010-80820 | BOLT | F60003- | |
| 6 | 01643-10823 | WASHER | F60003- | |
| 7 | 20W-60-R1831 | BRACKET | F60003- | |
| 8 | 01010-81020 | BOLT | F60003- | |
| 9 | 01643-11032 | WASHER | F60003- | |
| 10 | 22L-62-29112 | ELBOW | F60003- | |
| 11 | 22L-62-29210 | PLUG | F60003- | |
| 12 | 22L-62-29220 | POPPET | F60003- | |
| 13 | 21D-09-69960 | O-RING | F60003- | |
| 14 | 21W-62-R3920 | ELBOW | F60003- | |
| 15 | 02896-11008 | O-RING | F60003- | |
| 16 | 21D-09-69960 | O-RING | F60003- | |
| 17 | 226-09-12690 | UNION | F60003- | |
| 18 | 21D-09-69960 | O-RING | F60003- | |
| 19 | 02896-11008 | O-RING | F60003- | |
| 20 | 226-09-12690 | UNION | F60003- | |
| 21 | 21D-09-69960 | O-RING | F60003- | |
| 22 | 02896-11008 | O-RING | F60003- | |
| 23 | 22L-60-23310 | ACCUMULATOR | F60003-F60181 | |
| 23 | 22L-60-23311 | ACCUMULATOR | F60182- | |
| 24 | 22L-62-R4681 | UNION | F60003- | |
| 25 | 37B-09-88004 | O-RING | F60003- | |
| 26 | 21D-09-69960 | O-RING | F60003- | |
| 27 | 22L-62-24660 | GASKET | F60003- | |
| 28 | 22L-62-24670 | SEAL | F60003- | |
| SEE FIG. 6505 | ||||
| SEE FIG. 6585 | ||||
| SEE FIG. 6610 |
