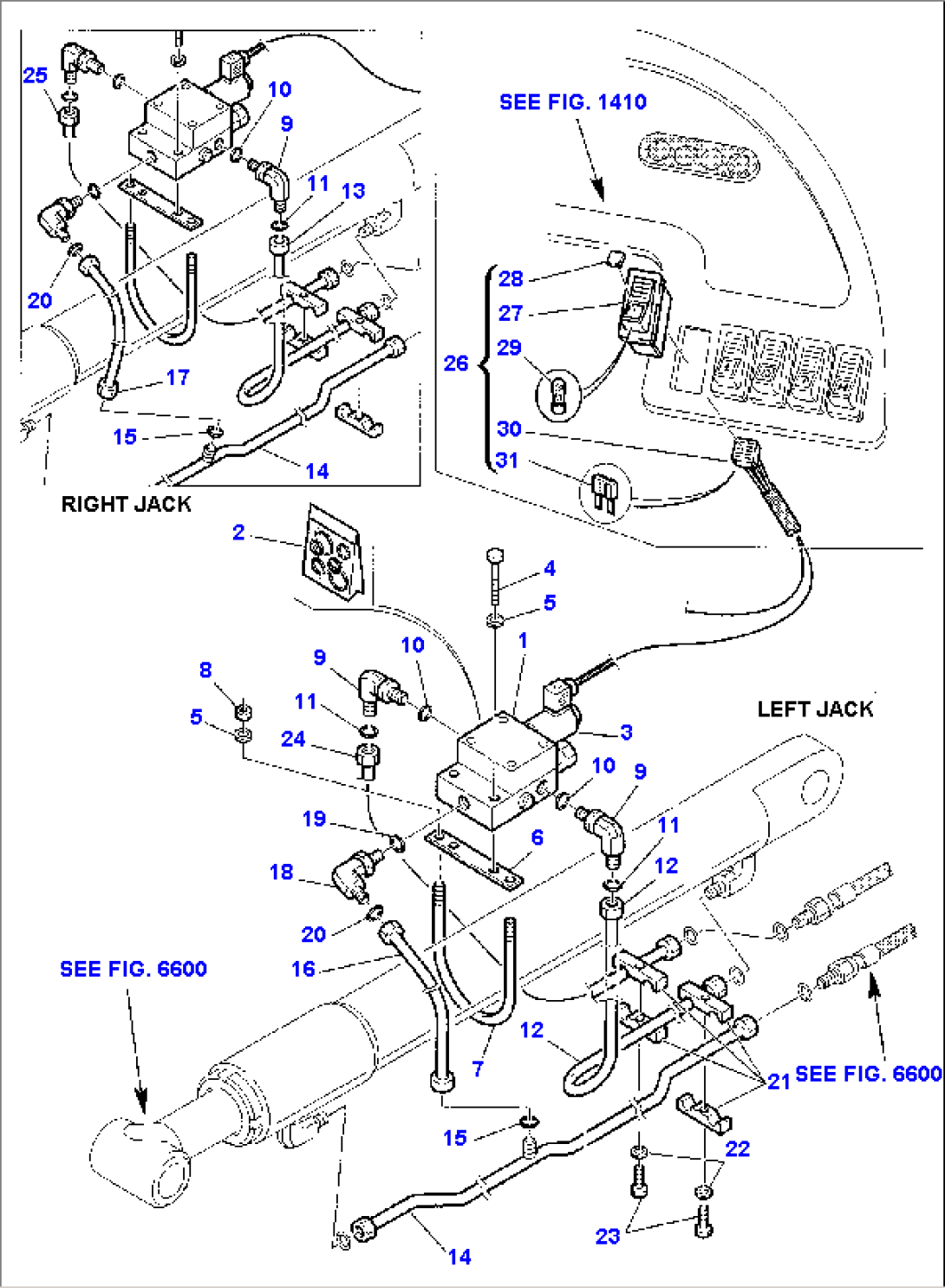

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 845250013 | VALVE | 15050001- | |
| 2 | 845250505 | GASKET, KIT | 15050001- | |
| 3 | 845750001 | SOLENOID | 15050001- | |
| 4 | 801015547 | BOLT | 15050001- | |
| 5 | 802170001 | SPRING WASHER | 15050001- | |
| 6 | 312237601 | PLATE | 15050001- | |
| 7 | 312237600 | FASTENER | 15050001- | |
| 8 | 801920104 | NUT | 15050001- | |
| 9 | 500380510 | TERMINAL | 15050001- | |
| 10 | 855051617 | O-RING | 15050001- | |
| 11 | 855051016 | O-RING | 15050001- | |
| 12 | 312637070 | PIPE | 15050001- | |
| 13 | 312637073 | PIPE | 15050001- | |
| 14 | 312637068 | PIPE | 15050001- | |
| 15 | 855051012 | O-RING | 15050001- | |
| 16 | 312637069 | PIPE | 15050001- | |
| 17 | 312637072 | PIPE | 15050001- | |
| 18 | 500380503 | TERMINAL | 15050001- | |
| 19 | 855051111 | O-RING | 15050001- | |
| 20 | 855051012 | O-RING | 15050001- | |
| 21 | 200390970 | BUCKLE | 15050001- | |
| 22 | 801015089 | BOLT | 15050001- | |
| 23 | 802170001 | SPRING WASHER | 15050001- | |
| 24 | 312637071 | PIPE | 15050001- | |
| 25 | 312637074 | PIPE | 15050001- | |
| 26 | 885270665 | WIRING, ASSY | 15050001- | |
| 27 | 885081088 | SWITCH SECURITY VALVE | 15050001- | |
| 28 | 885141108 | GLASS | 15050001- | |
| 29 | 885141072 | BULB | 15050001- | |
| 30 | 885411096 | CONNECTOR | 15050001- | |
| 31 | 885091008 | FUSE 15A | 15050001- | |
| SEE FIG. 1410 | ||||
| SEE FIG. 6600 |
