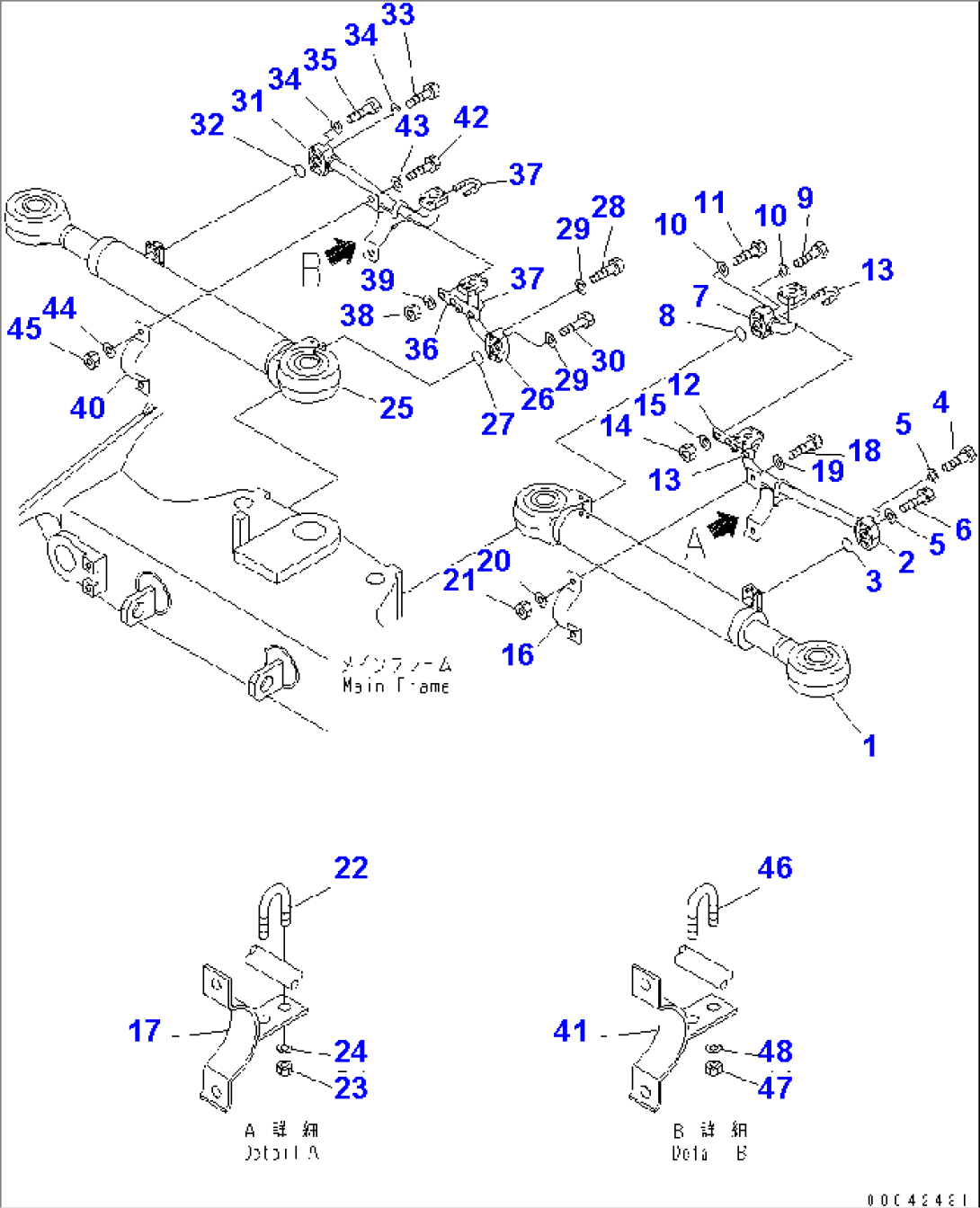

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | (\8\707-00-0Y820) | CYLINDER ASS'Y,(FINAL COATING) | 3001- | |
| 2 | 566-61-83570 | TUBE | 3001- | |
| 3 | 07000-F3025 | O-RING | 3001- | |
| 4 | 01010-80845 | BOLT | 3001- | |
| 5 | 01643-50823 | WASHER | 3001- | |
| 6 | 01010-80840 | BOLT | 3001- | |
| 7 | 566-61-83560 | TUBE | 3001- | |
| 8 | 07000-F3025 | O-RING | 3001- | |
| 9 | 01010-80845 | BOLT | 3001- | |
| 10 | 01643-50823 | WASHER | 3001- | |
| 11 | 01010-80840 | BOLT | 3001- | |
| 12 | 566-61-44540 | PLATE | 3001- | |
| 13 | 07283-32236 | CLIP | 3001- | |
| 14 | 01597-01009 | NUT | 3001- | |
| 15 | 01643-31032 | WASHER | 3001- | |
| 16 | 566-61-6E560 | CLAMP | 3001- | |
| 17 | 566-61-6E660 | CLAMP | 3001- | |
| 18 | 01010-81030 | BOLT | 3001- | |
| 19 | 01643-31032 | WASHER | 3001- | |
| 20 | 01643-31032 | WASHER | 3001- | |
| 21 | 01580-11008 | NUT | 3001- | |
| 22 | 07283-32236 | CLIP | 3001- | |
| 23 | 01597-01009 | NUT | 3001- | |
| 24 | 01643-31032 | WASHER | 3001- | |
| 25 | (\8\707-00-0Y820) | CYLINDER ASS'Y,(FINAL COATING) | 3001- | |
| 26 | 566-61-6E350 | TUBE | 3001- | |
| 27 | 07000-F3025 | O-RING | 3001- | |
| 28 | 01010-80845 | BOLT | 3001- | |
| 29 | 01643-50823 | WASHER | 3001- | |
| 30 | 01010-80835 | BOLT | 3001- | |
| 31 | 566-61-6E340 | TUBE | 3001- | |
| 32 | 07000-F3025 | O-RING | 3001- | |
| 33 | 01010-80845 | BOLT | 3001- | |
| 34 | 01643-50823 | WASHER | 3001- | |
| 35 | 01010-80835 | BOLT | 3001- | |
| 36 | 566-61-44540 | PLATE | 3001- | |
| 37 | 07283-32236 | CLIP | 3001- | |
| 38 | 01597-01009 | NUT | 3001- | |
| 39 | 01643-31032 | WASHER | 3001- | |
| 40 | 566-61-6E560 | CLAMP | 3001- | |
| 41 | 566-61-6E660 | CLAMP | 3001- | |
| 42 | 01010-81030 | BOLT | 3001- | |
| 43 | 01643-31032 | WASHER | 3001- | |
| 44 | 01643-31032 | WASHER | 3001- | |
| 45 | 01580-11008 | NUT | 3001- | |
| 46 | 07283-32236 | CLIP | 3001- | |
| 47 | 01597-01009 | NUT | 3001- | |
| 48 | 01643-31032 | WASHER | 3001- |
